Intercom Systems – RTS

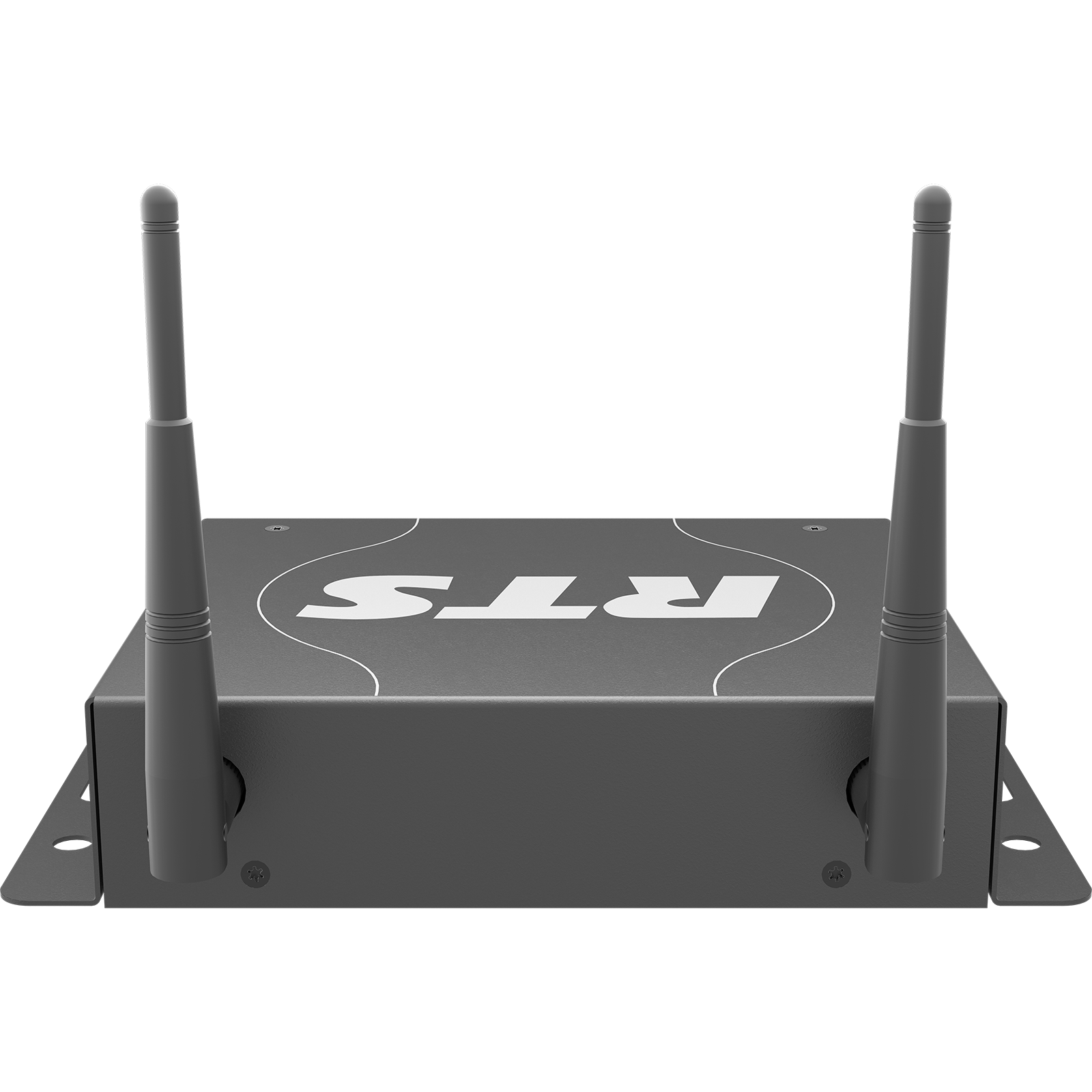

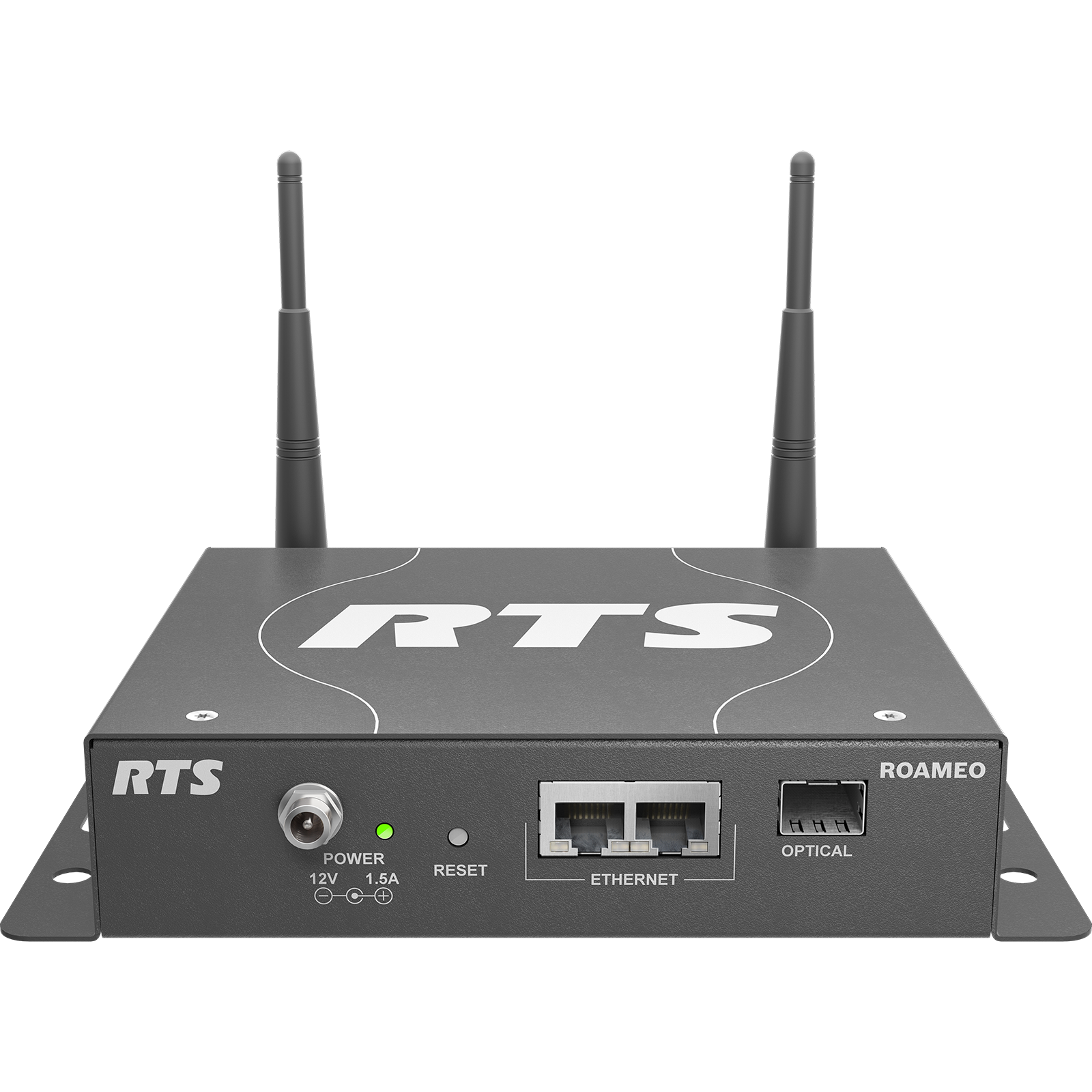

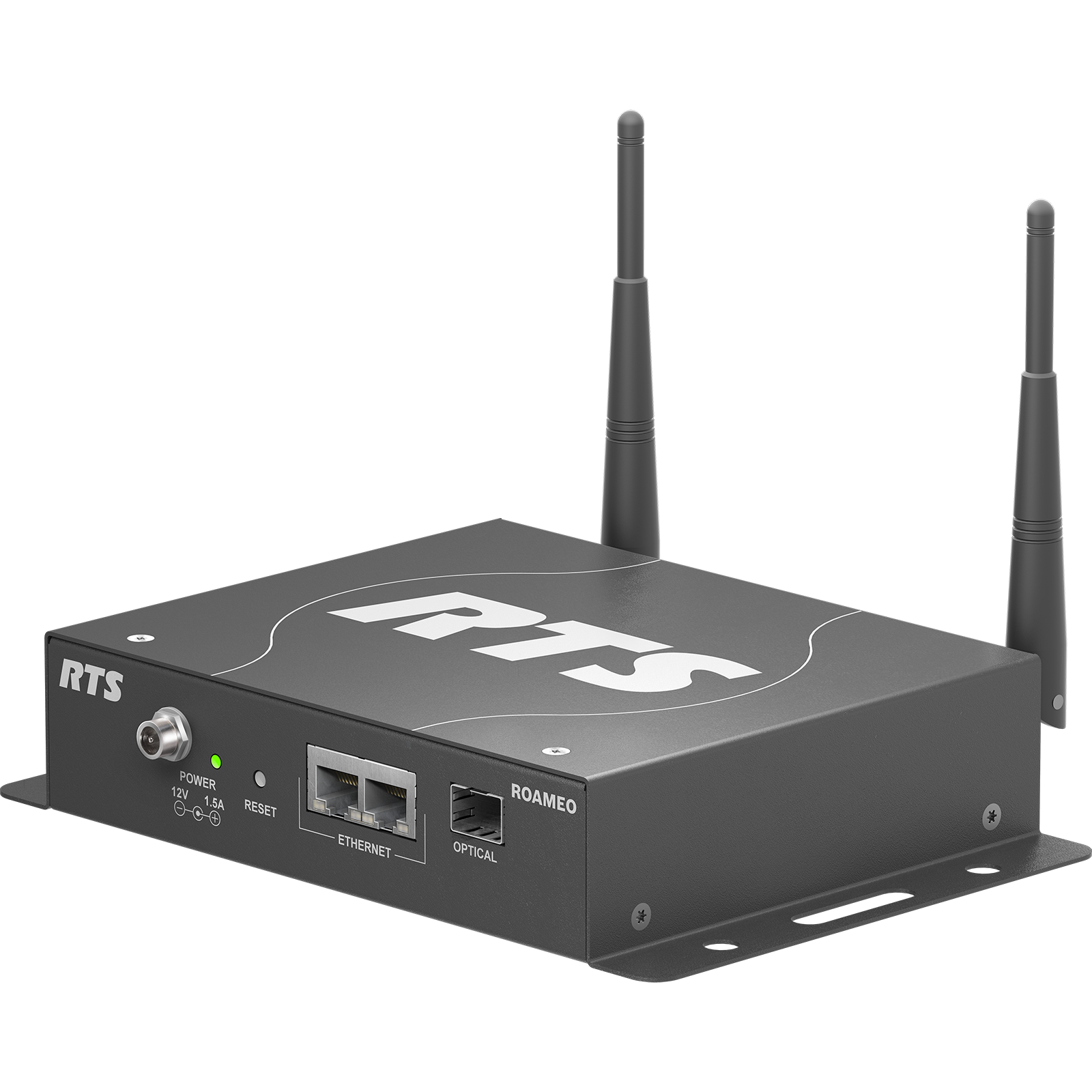

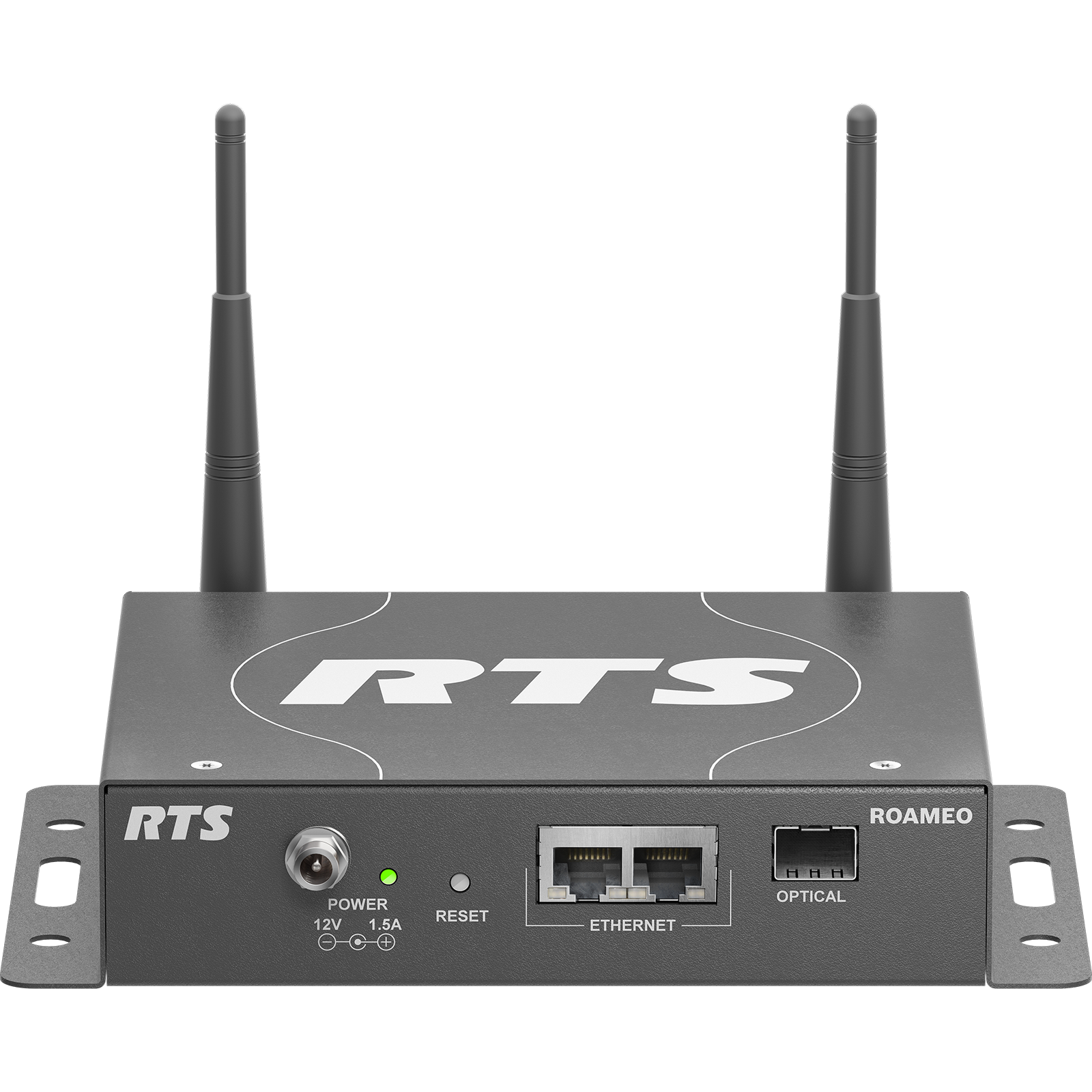

AP-1800

5/10CH device

Specifications

Audio BitsOMNEO
Frequency Band of OperationBP: 1880 – 1900 MHz (Europe), 1920-1930 MHz (North America) AP: 1880 – 1900 (Europe) MHz, 1920 – 1930 MHz (North America)
Wireless TechnologyDECT
MountingSurface or pole (w. clamp)
User Capacity5 Beltpacks (G.722) or 10 Beltpacks (G.726) per Access Point – Max 40 Beltpacks per System
Battery Type17 hrs

Frequency Response300 - 7000 Hz (G.722), 300 - 3500 Hz (G.726)
AntennaDetachable, adjustable
Power6.5W
RF Frequency Range1880-1900 (EU), 1920-1930 (NA)
RF StandardDECT
RF range, typical50-75 m indoor, 150-200 m outdoor
Voice CodecsG.722 (wideband) / G.726 (narrowband)
Voice latency (ms)Approx 40 ms BP to BP; 30 ms BP to matrix and matrix to BP
Width (Shipping)287
Height (Shipping)99
Depth (Shipping)194
Weight (Shipping)0.86
IP-ratingIndoor only
Max APs/System10
Characteristics3dBi gain, omni-directional
Voltage12 V DC, external
