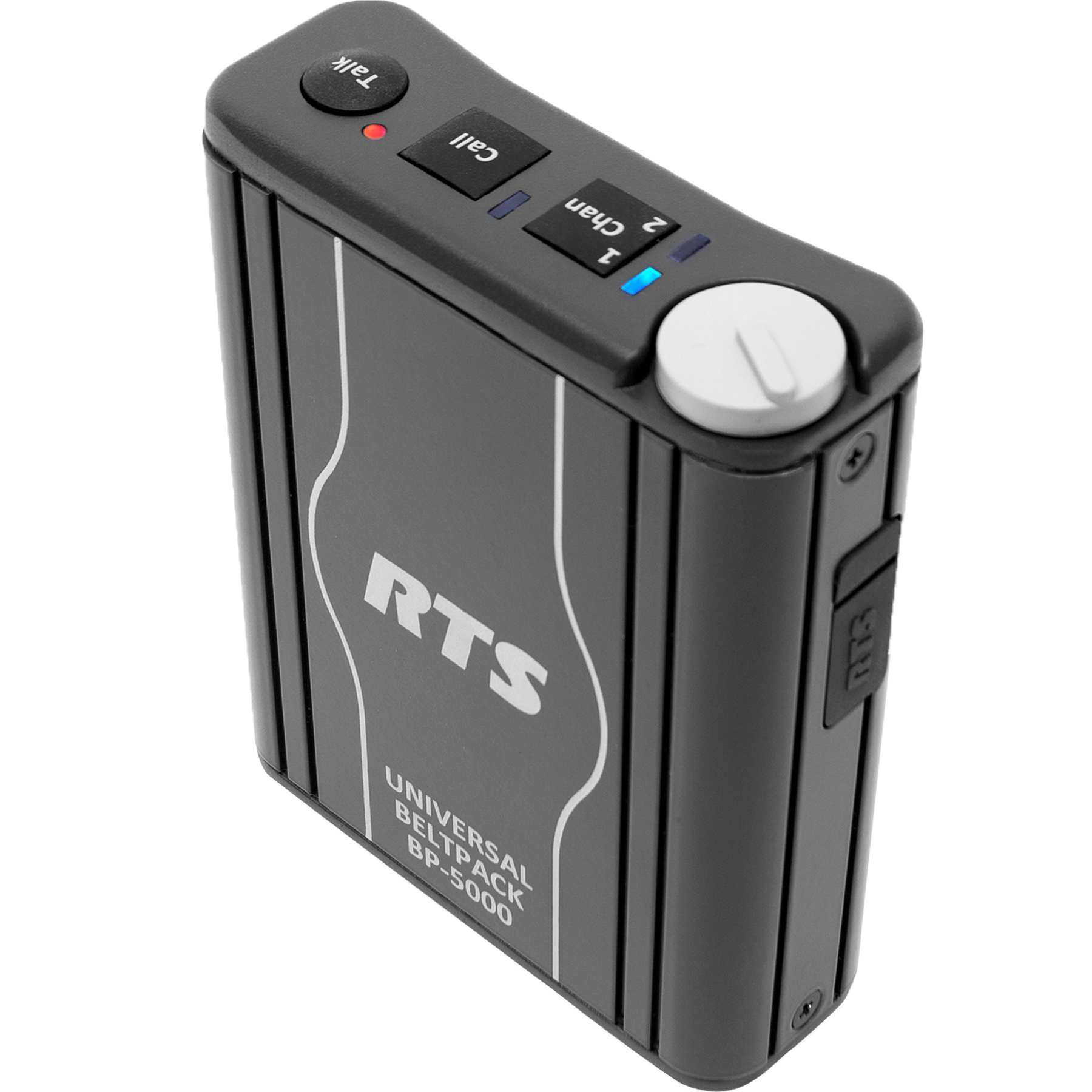

BP-5000
2CH portable universal beltpack headset station for mobile users
- Auto-wiring scheme detection
Once plugged in, the beltpacks automatically recognize the wiring scheme and configure the unit for either the RTS, Audiocom or Clear-Com format.
- Intelligent power management
Due to a reduced power consumption up to 40 daisy-chained beltpacks can be powered by only one PS-20 power supply. A current pump circuit constantly monitors the cable length versus the actual current consumption to ensure the beltpacks receive the voltage they need.
- Enhanced talk button control
Offers the choice between “always on”, “always off” or “switching”. In addition to a blinking incoming call lamp as visual feedback.
- Remote kill function
Allows any user to send an inaudible “microphone kill signal” which instantly mutes every beltpack mic in the partyline. This feature can be useful when a user inadvertently left the mic open. It is also possible to override the mic-kill function.
- Voice guidance easy factory default reset
Short voice prompts help the user navigating through the menu options eliminating the need to configure internal jumpers or switches. The devices can be easily reset to factory defaults.
- Headset connectivity
The unit is available with either 4- or 5-pin XLR headset connectors allowing for a wide range of headset options; both dynamic and electret headset microphones are supported.
The BP-5000 universal beltpack is a 2-channel portable user station compatible with RTS, Audiocom, and Clear-Com party line systems. The BP-5000 has a mode-sensing system configuration, meaning the beltpack can determine what type of system it is installed into and configure itself according to that system.
The BP-5000 can be ordered with either a 4-pin male, 4-pin female, or a 5-pin female XLR connector providing, a wide-range of headset options. Dynamic and electret headset microphones are supported.
Multiple programming options are available. To simplify programming, voice prompts guide the user through the menus.
The BP-5000 is available in black only.
