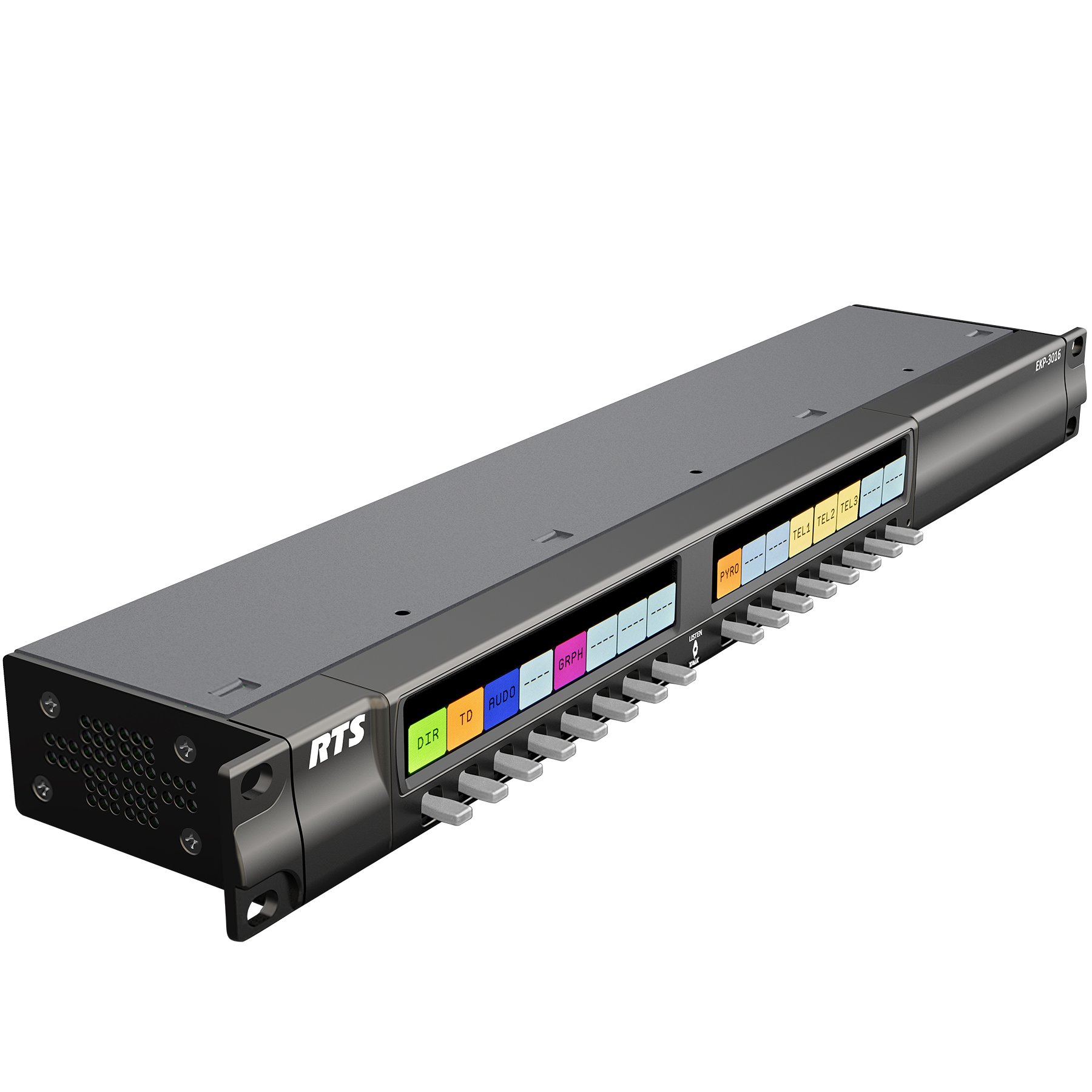

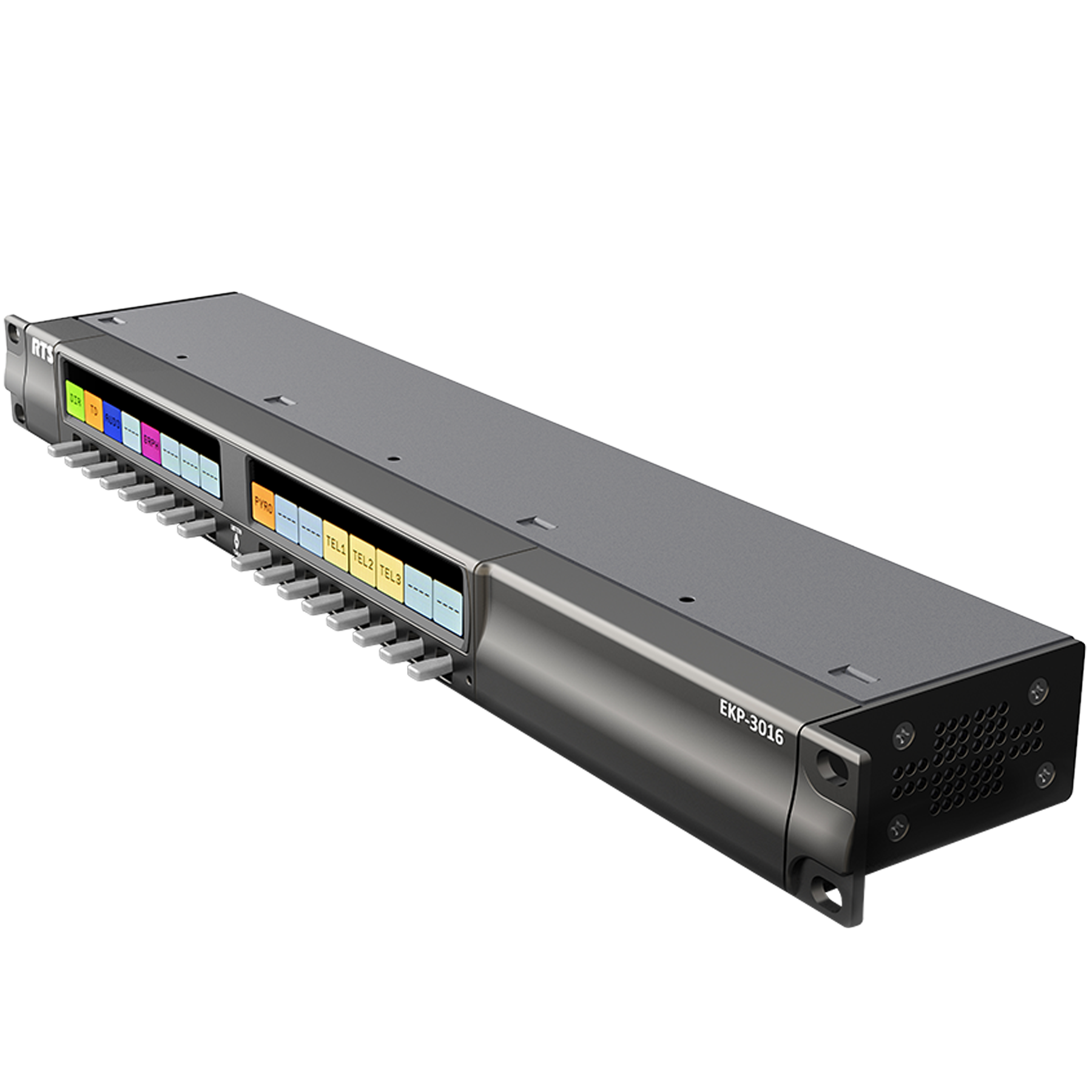

EKP-3016
1RU expansion keypanel with 16 operation keys for KP-3016
Specifications
| LCD Display Active Area | 120.10mm x 18.77mm |
| LCD Display Dot Resolution | 576x90 |
| LCD Display Color Resolution | 16-bit (64K) RGB color |
| LCD Display View Angle | 80° (typical; all directions) |
| Power Requirements | 100~240VAC, 50–60Hz |
| Operating Temperature | 0°C to 55° |
| Height | 43.8mm |
| Width | 441.82mm |
| Depth | 98.5mm |
| Weight | 2.91lb (1.32kg) |
| Storage Temperature | -40°C to 70 |
| Connector Options | EXP IN EXP OUT |
| Power Consumption | @110VAC – @220VAC – |
