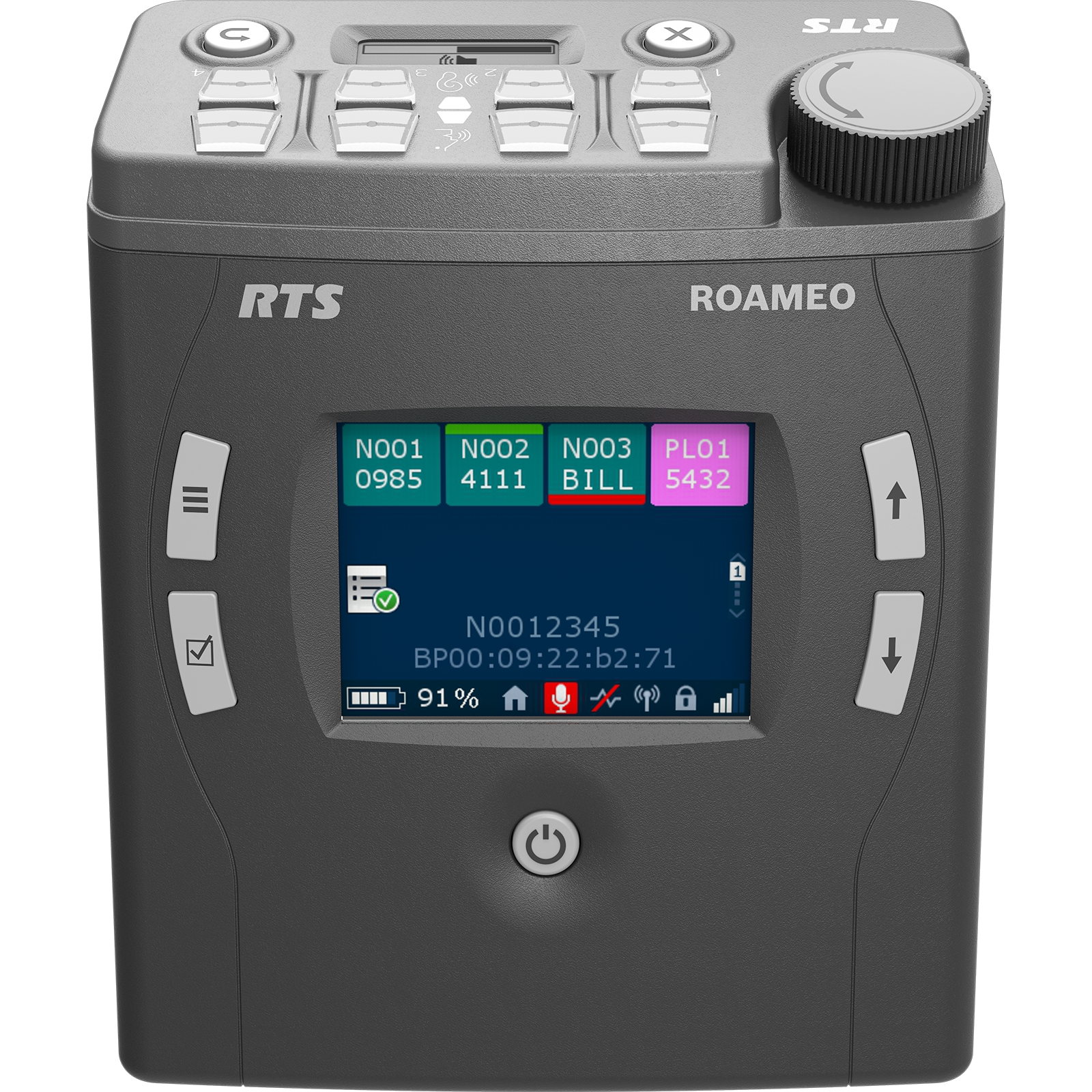

TR-1800

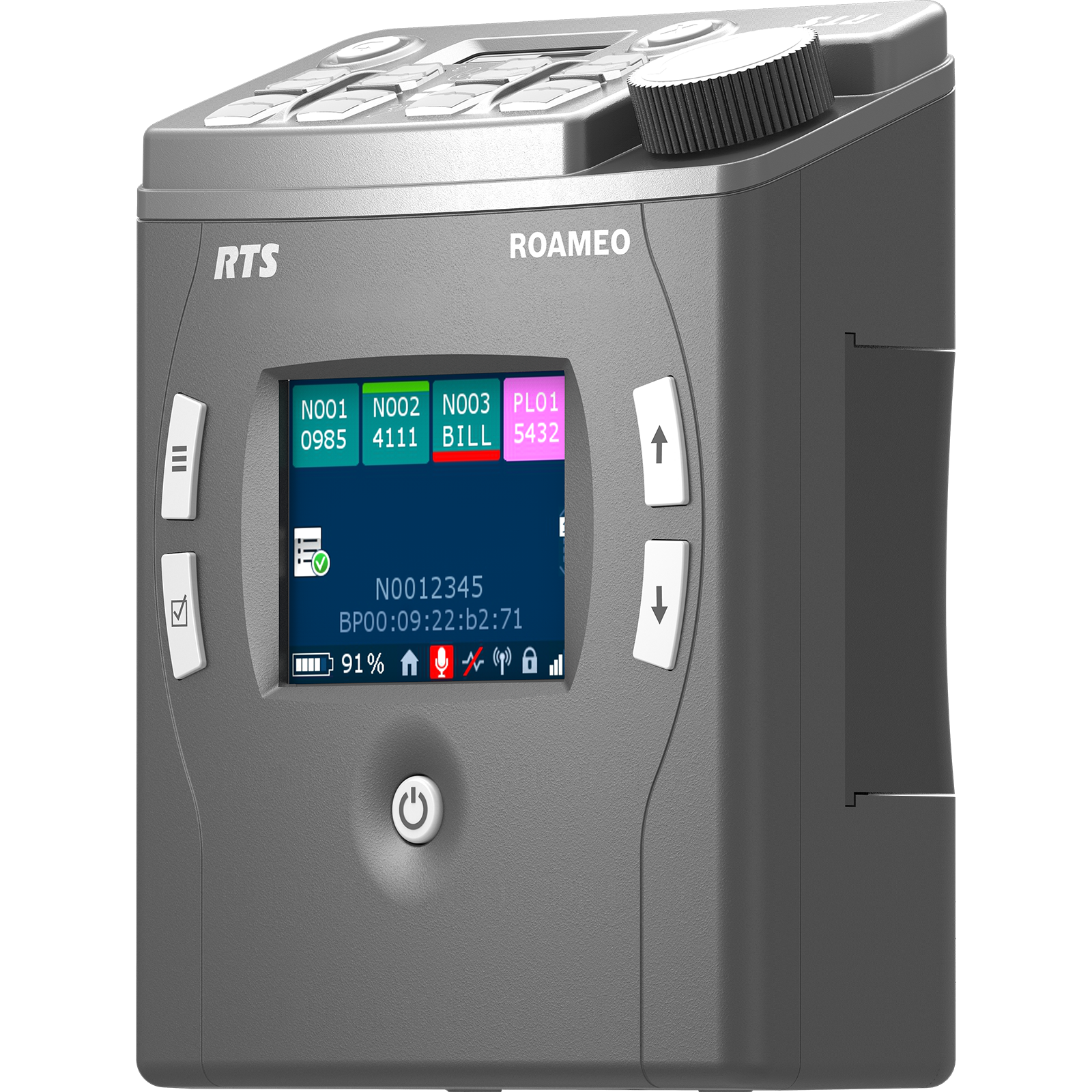

DECT-based wireless intercom 4CH beltpack

Specifications

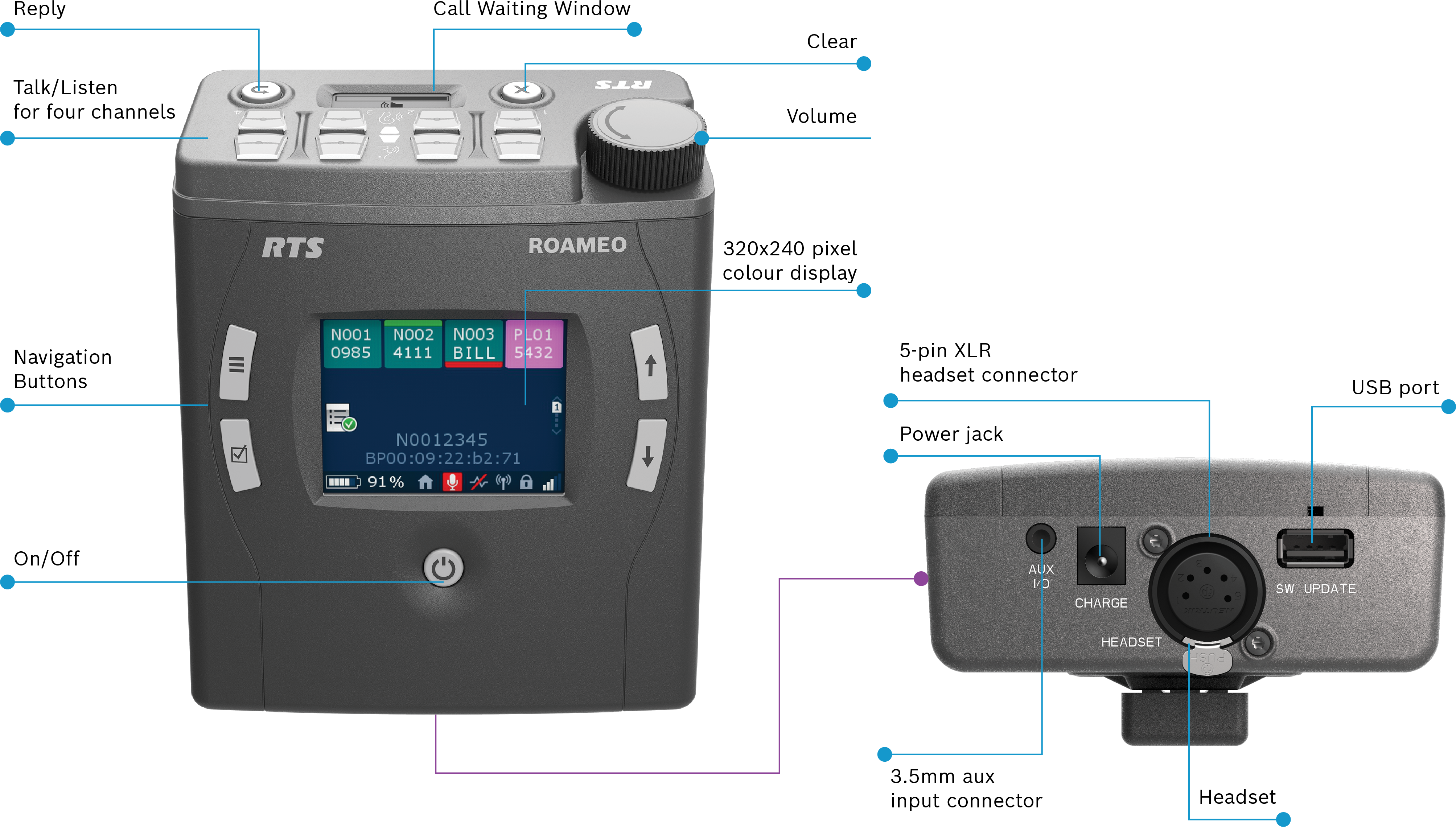

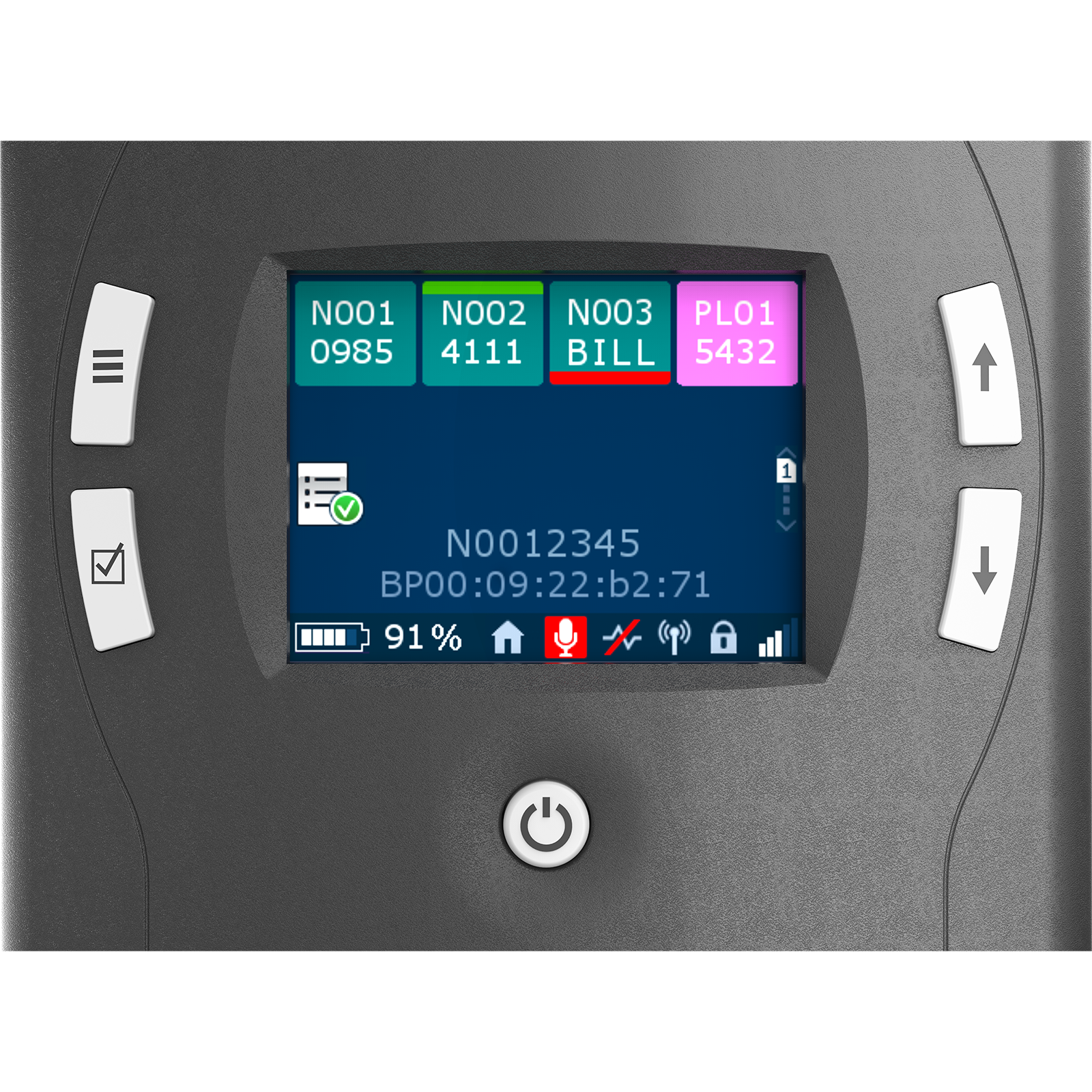

Display Type320x240 pixel color LCD
Battery Life17 hours
Frequency Response300 - 7000 Hz (G.722), 300 - 3500 Hz (G.726)
AntennaDual, internal

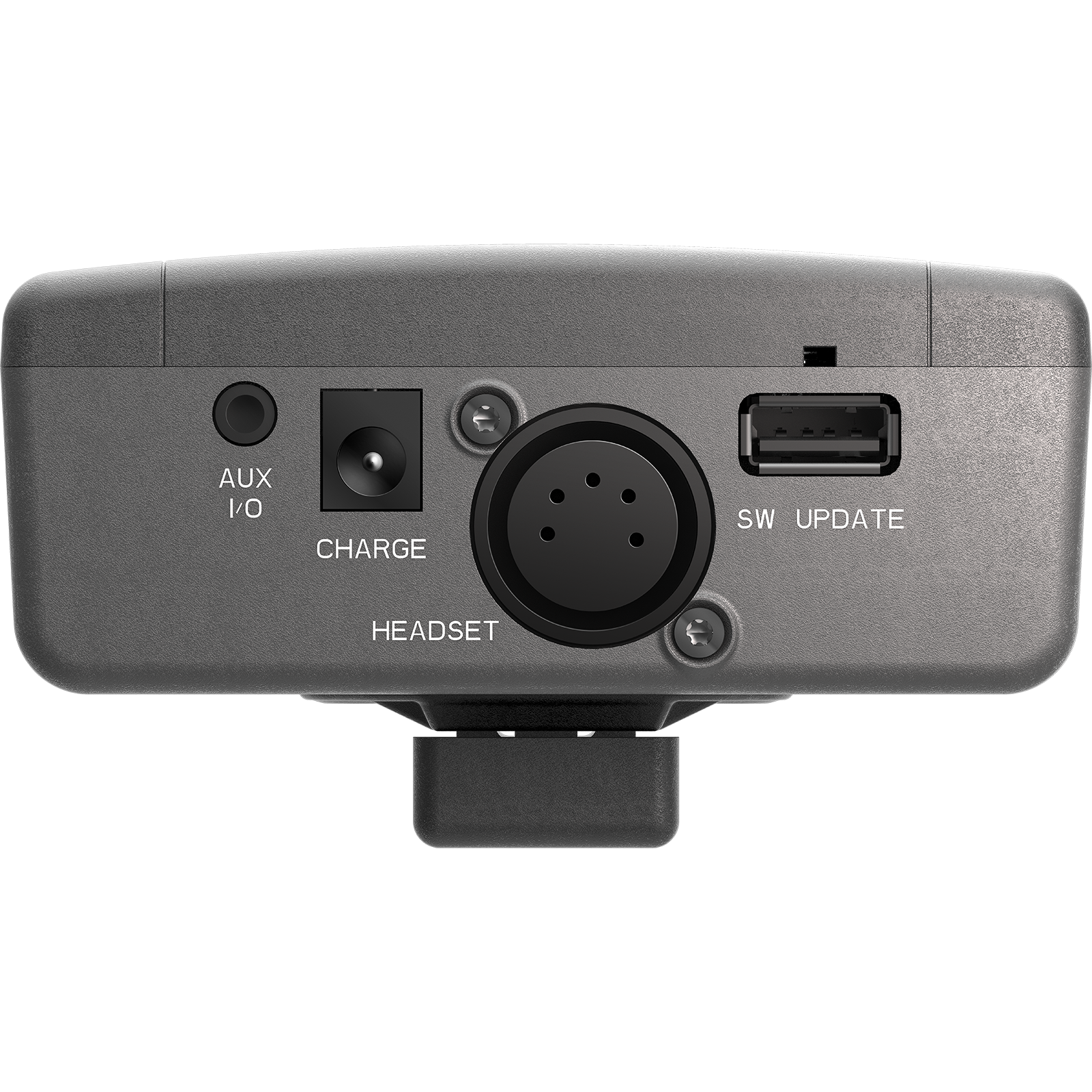

Headsets5-pin female XLR
Keys4x2 + reply and clear

Call Waiting WindowMonochrome
RF Frequency Range1880-1900 (EU), 1920-1930 (NA)
RF StandardDECT
RF range, typical50-75 m indoor, 150-200 m outdoor
Voice CodecsG.722 (wideband) / G.726 (narrowband)
Voice latency (ms)Approx 40 ms BP to BP; 30 ms BP
Width (Shipping)244
Height (Shipping)99
Depth (Shipping)144
Weight (Shipping)0.68
IP-ratingIP-52
RoamingFull, automatic
Max BPs/AP5 (G.722), 10 (G.726)
Max BPs/system40

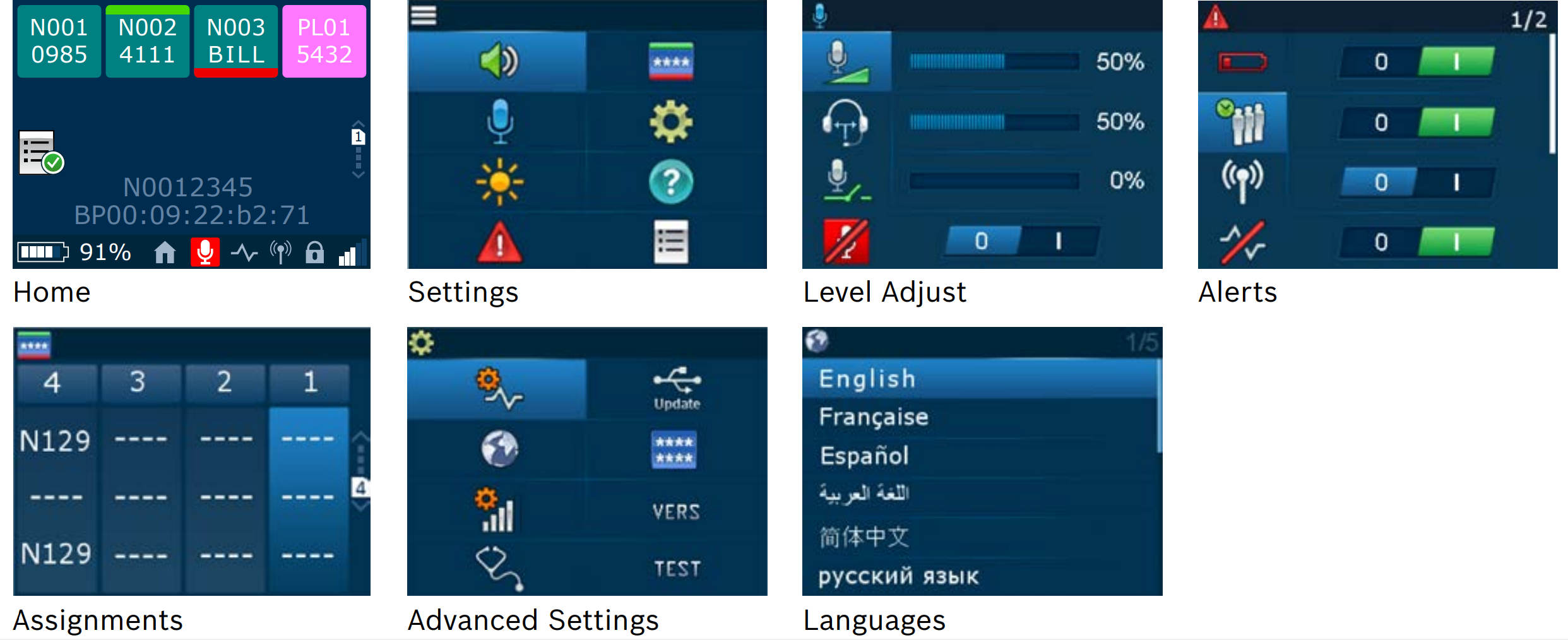

User InterfaceIcons plus text
Languages10
Menu keys4
