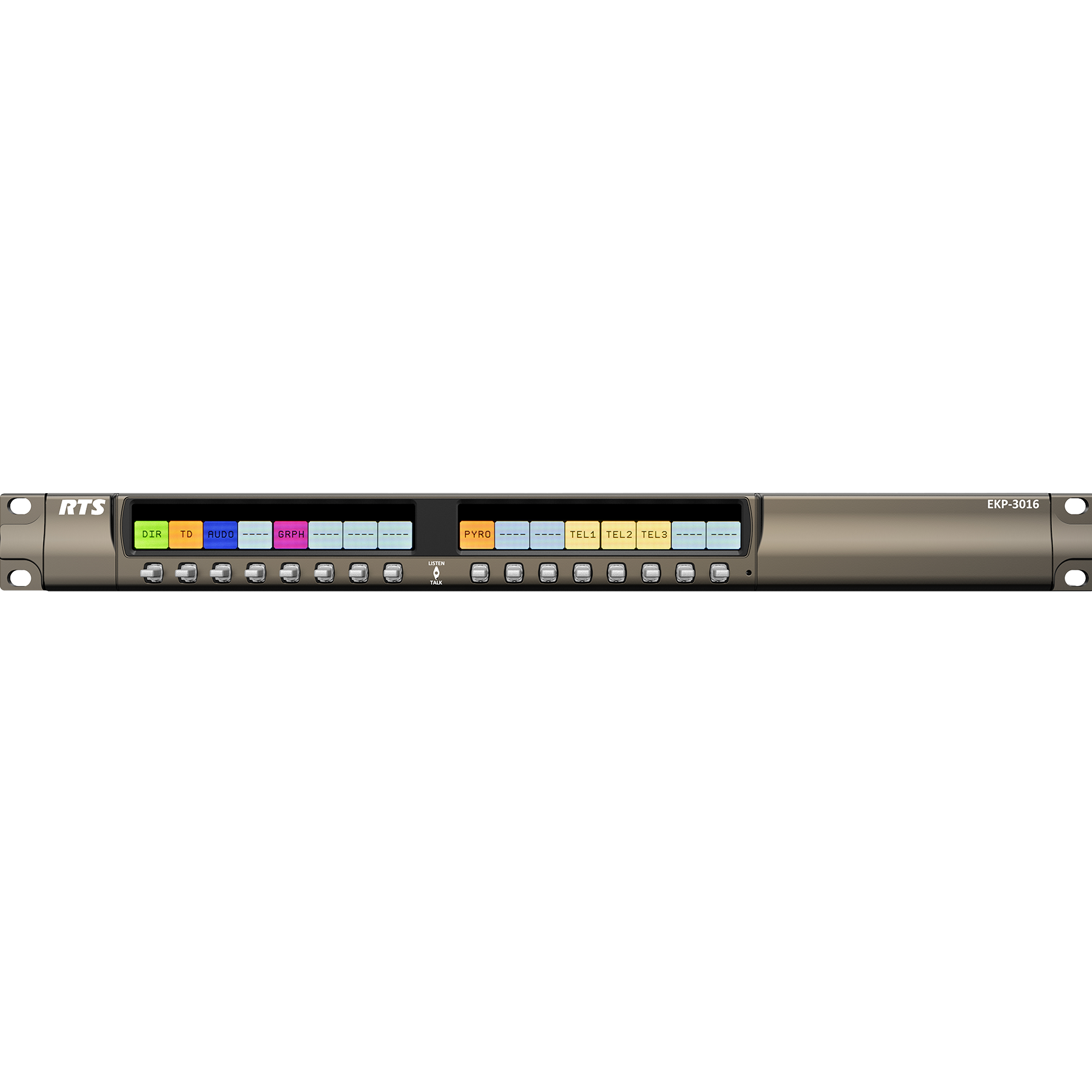

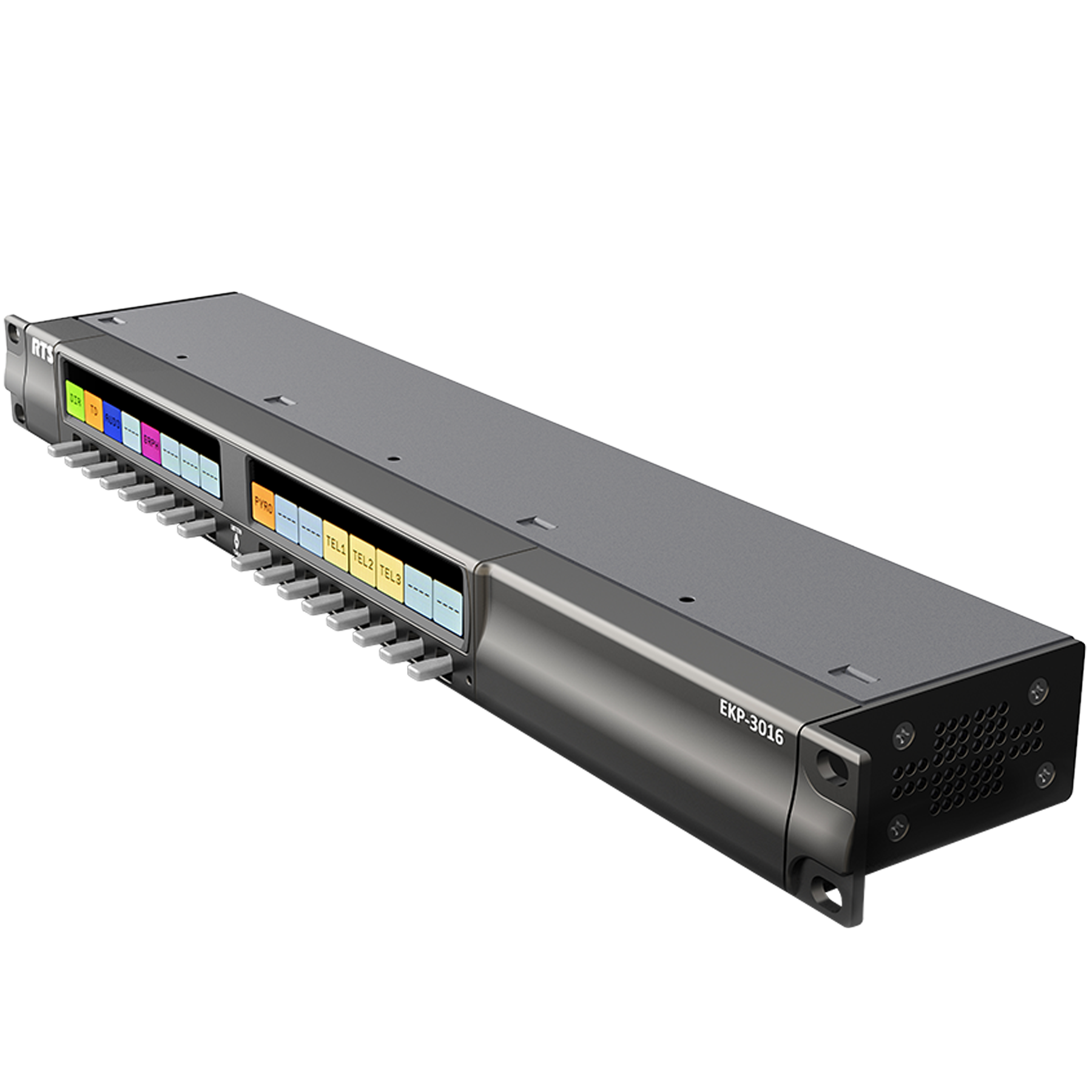

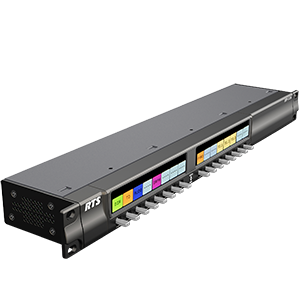

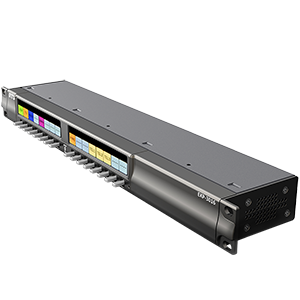

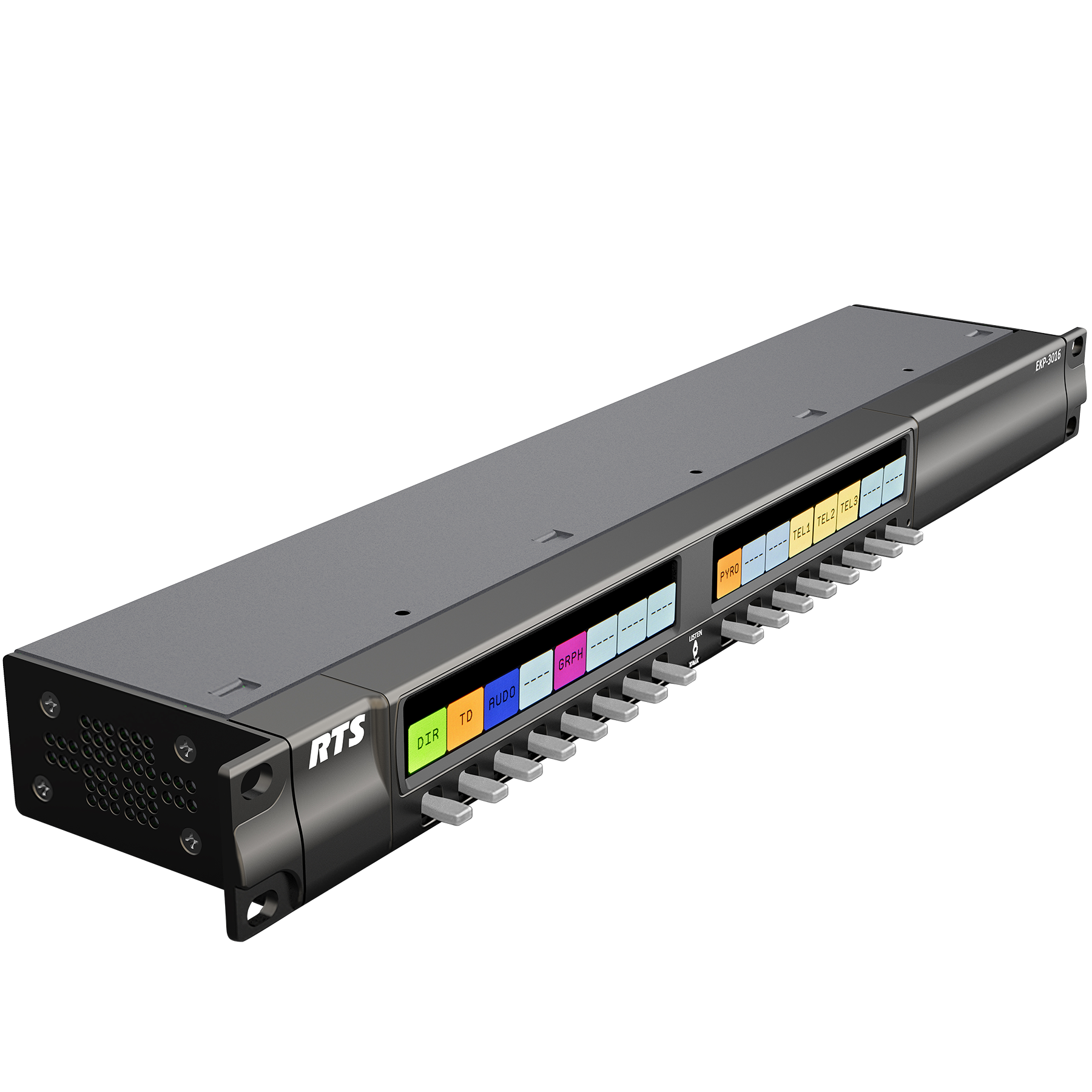

EKP-3016

1RU expansion keypanel with 16 operation keys for KP-3016

Specifications

LCD Display Active Area120.10mm x 18.77mm
LCD Display Dot Resolution576x90
LCD Display Color Resolution16-bit (64K) RGB color
LCD Display View Angle80° (typical; all directions)
Power Requirements100~240VAC, 50–60Hz
Operating Temperature0°C to 55°
Height43.8mm
Width441.82mm
Depth98.5mm
Weight2.91lb (1.32kg)
Storage Temperature-40°C to 70
Connector OptionsEXP IN
EXP OUT
Power Consumption@110VAC –
@220VAC –
