TIF-PRO2 VoIP Telephone Interface by RTS Intercoms

TIF-PRO2

VoIP Telephone Interface

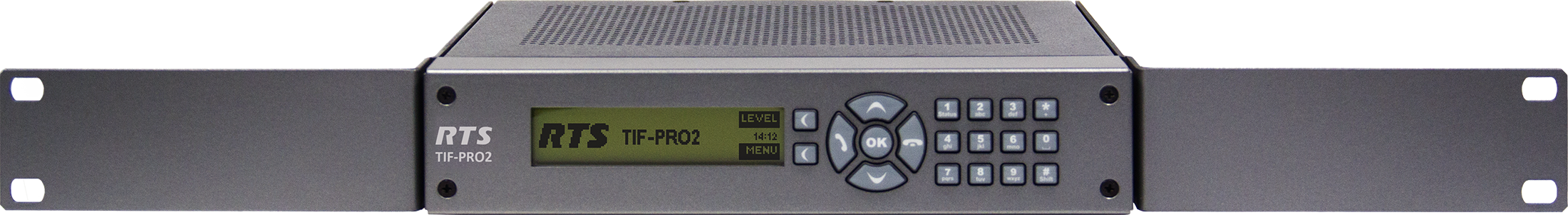

A replacement for the successful SIP-ISDN, the TIF-PRO2 provides increased IP/digital/analog connection density in a compact half-rack-unit form factor.

The device offers seamless interoperability with the latest RTS IP/digital keypanels and matrices, along with legacy IP/digital/analog RTS intercom hardware. It comes equipped with two SIP IP lines, each with a 64 kbps data rate (with overhead 100 kbps); additional features and functions are available at the user’s fingertips via optional software upgrades.

Specifications

CODING ALGORITHMS
G.711A-Law / μ-Law, 3.1 kHz (Telephone algorithms)
G.722HD-Voice, 7 kHz

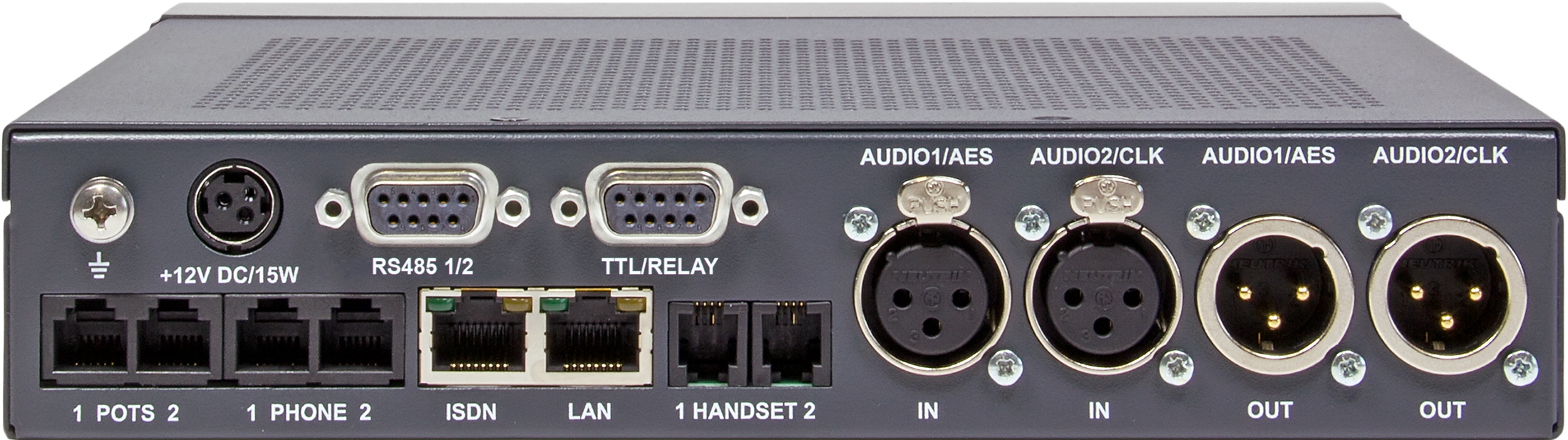

LINE INTERFACES
ISDN
1xS0I.430, RJ45
ProtocolDSS-1, NI-1, Japanese ISDN
POTS
2xPOTSRJ12
LAN
1xLANRJ45

CONTROL INTERFACES
LANRJ45
TTL / RELAY9-pin D-SUB socket
2x TTL Input/Output3.3 V / 10 mA
Function can be programmed
2x Relay48 V / 200 mA
Function can be programmed
DATA INTERFACES
RS485
2x RS485V.11, 9-pin D-SUB socket
AUDIO INTERFACES
Analogue
Audio 1 / 2
Electronically balanced InputXLR female
Electronically balanced output XLRmale
Nominal level-3 to +9 dBu
Can be programmed
Head room0 to +15 dBu
Can be programmed
Impedance Input>25 KΩ
Impedance Output50 Ω
Frequency Response50 Hz to 7 kHz
Signal to noise ratio>80 dB
Noise-92 dB
Digital Audio
AES / EBU
FormatIEC-958
AES / EBU Professional
Balanced InputXLR female
Balanced OutputXLR male
Sample Rate converter at the inputs
SIGNAL PROCESSING
AGC per channel, configurable
Echo canceller per channel
(100 msec echo cancelling time)
Expander per channel, configurable
DISPLAY
Graphical resolution160 x 32 Pixel
Illuminated, can be switched off
POWER SUPPLY VIA EXTERNAL ADAPTER
Direct Voltage (DC)+12 V
Power consumption Max.15 W
ENVIRONMENTAL
H x W x D1.7 in. x 8.7 in. x 7.9 in.
(44 mm x 220 mm x 200 mm)
WeightCa. 3.75 lb
(Ca. 1.7 kg)
Temperature41 °F to 113 °F
(5 °C to 45 °C)
Relative humidity5% to 85%
