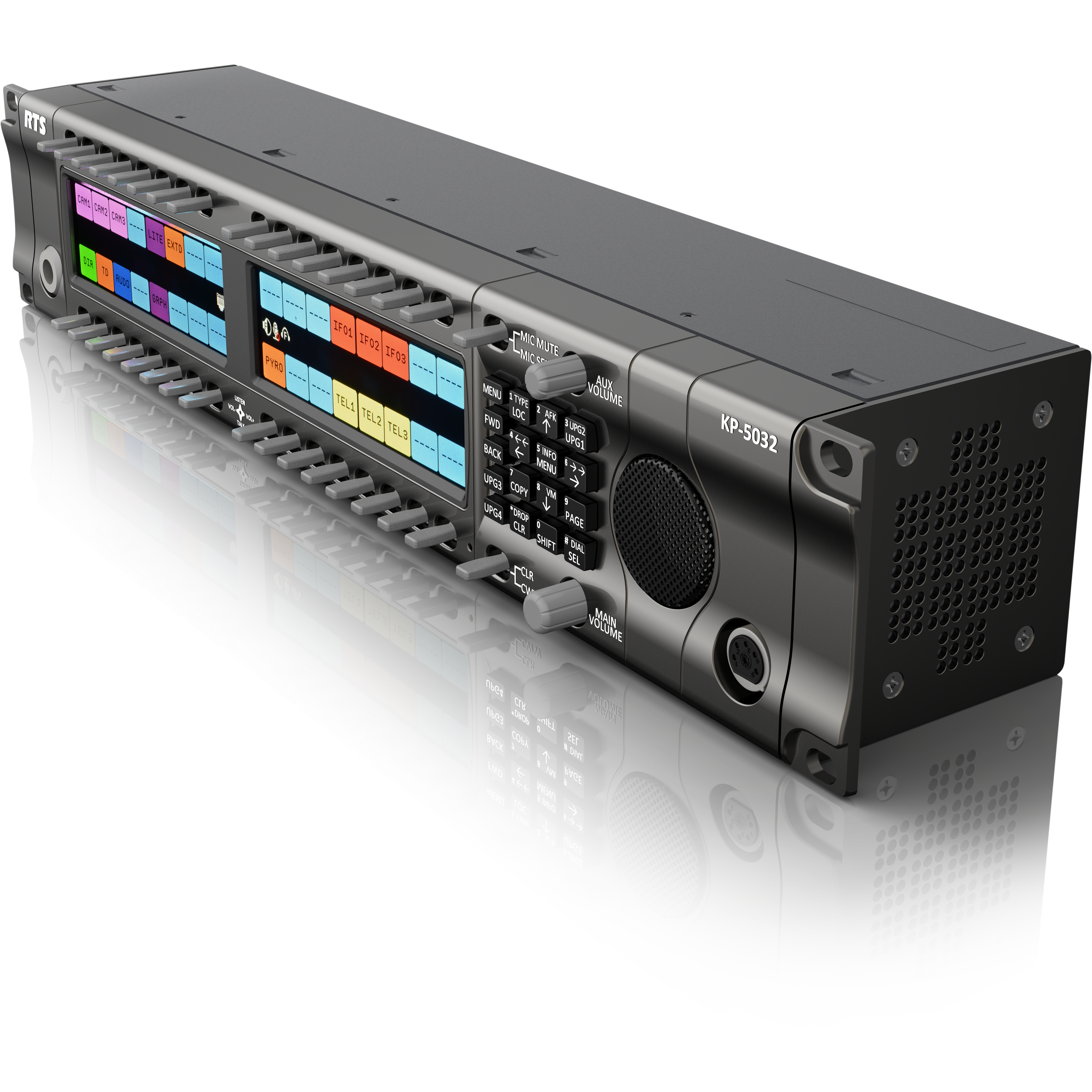

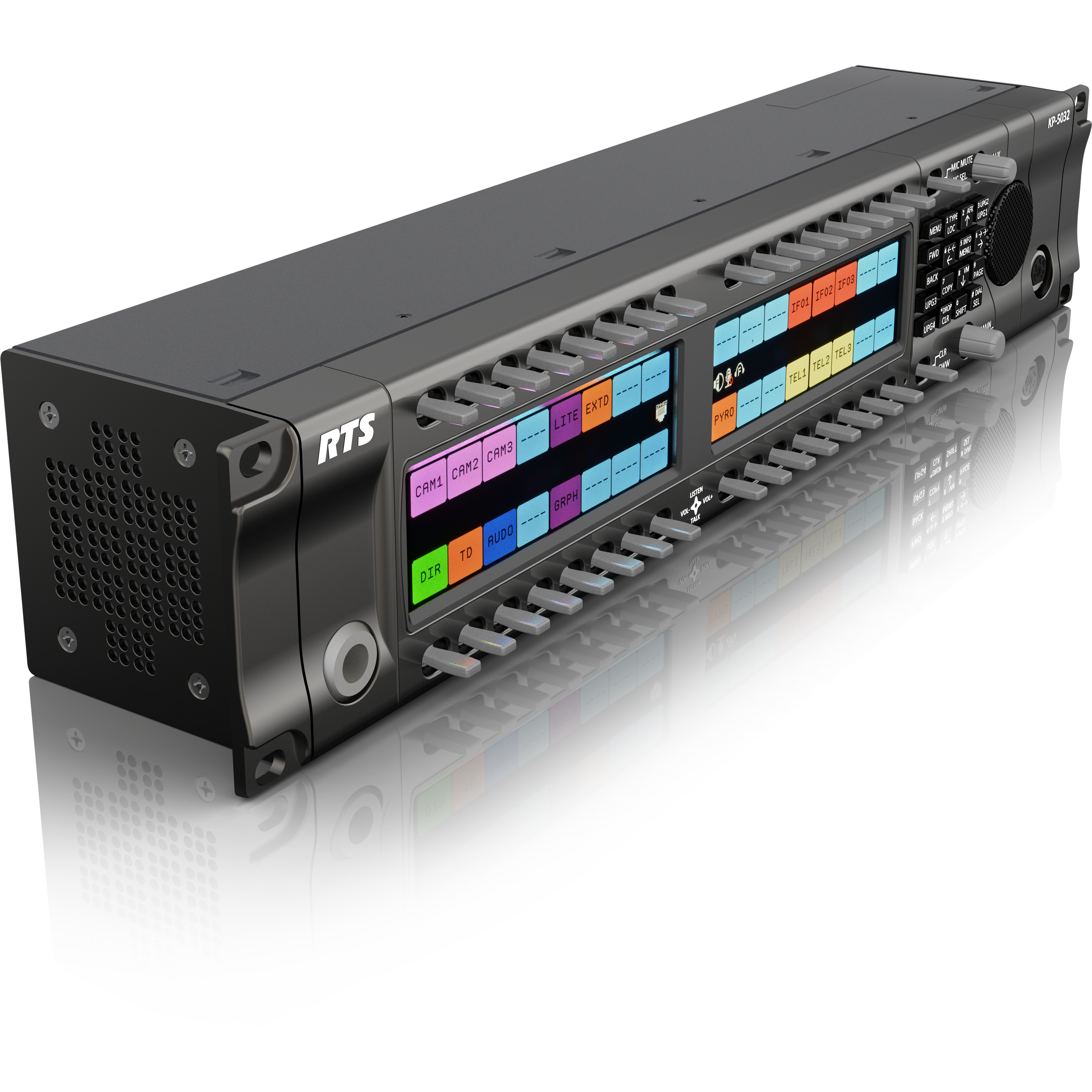

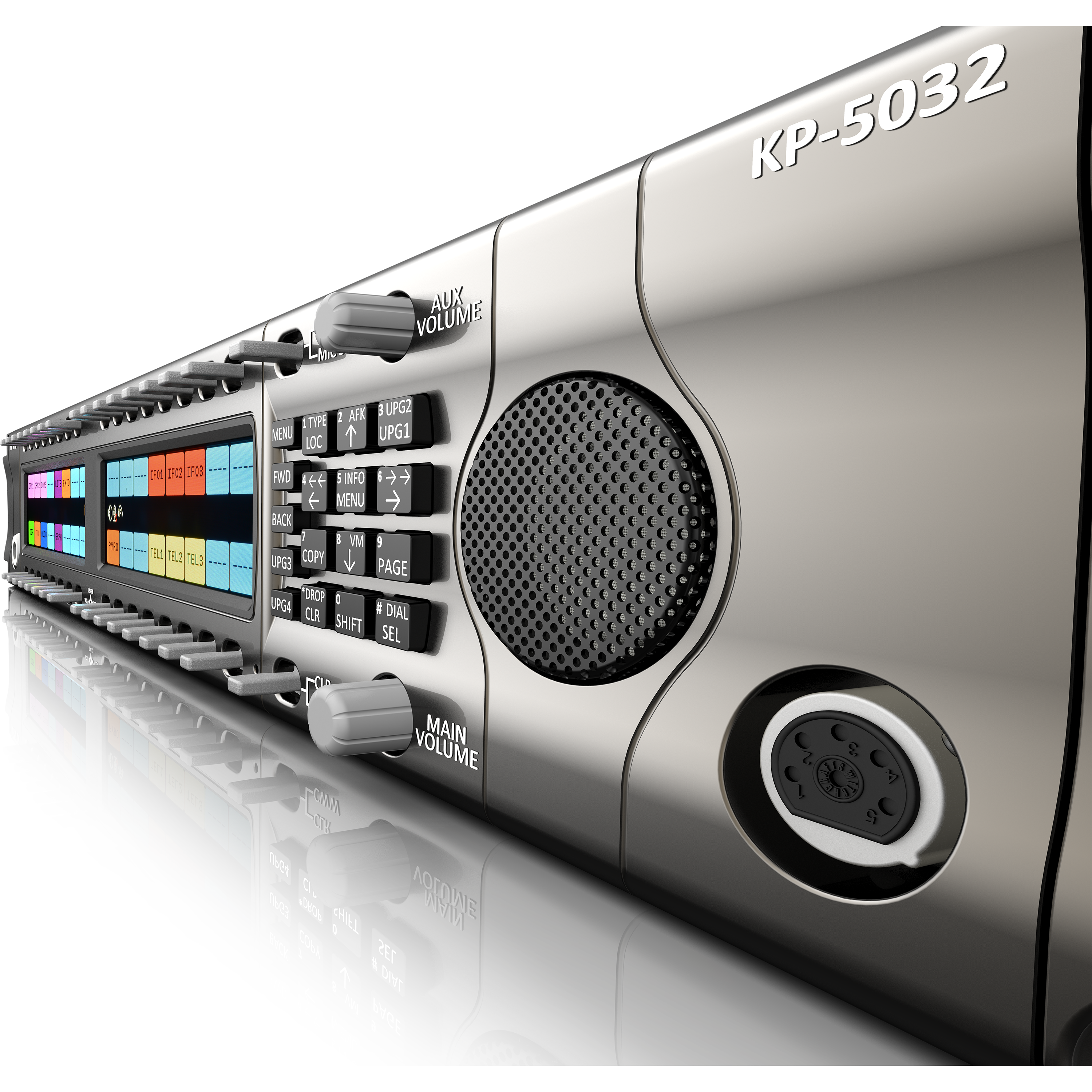

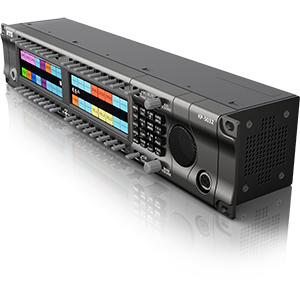

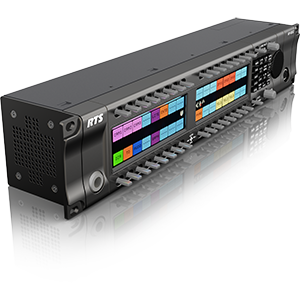

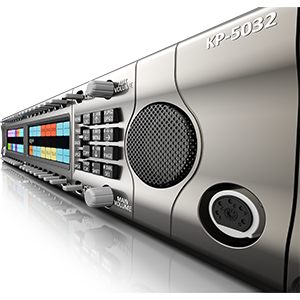

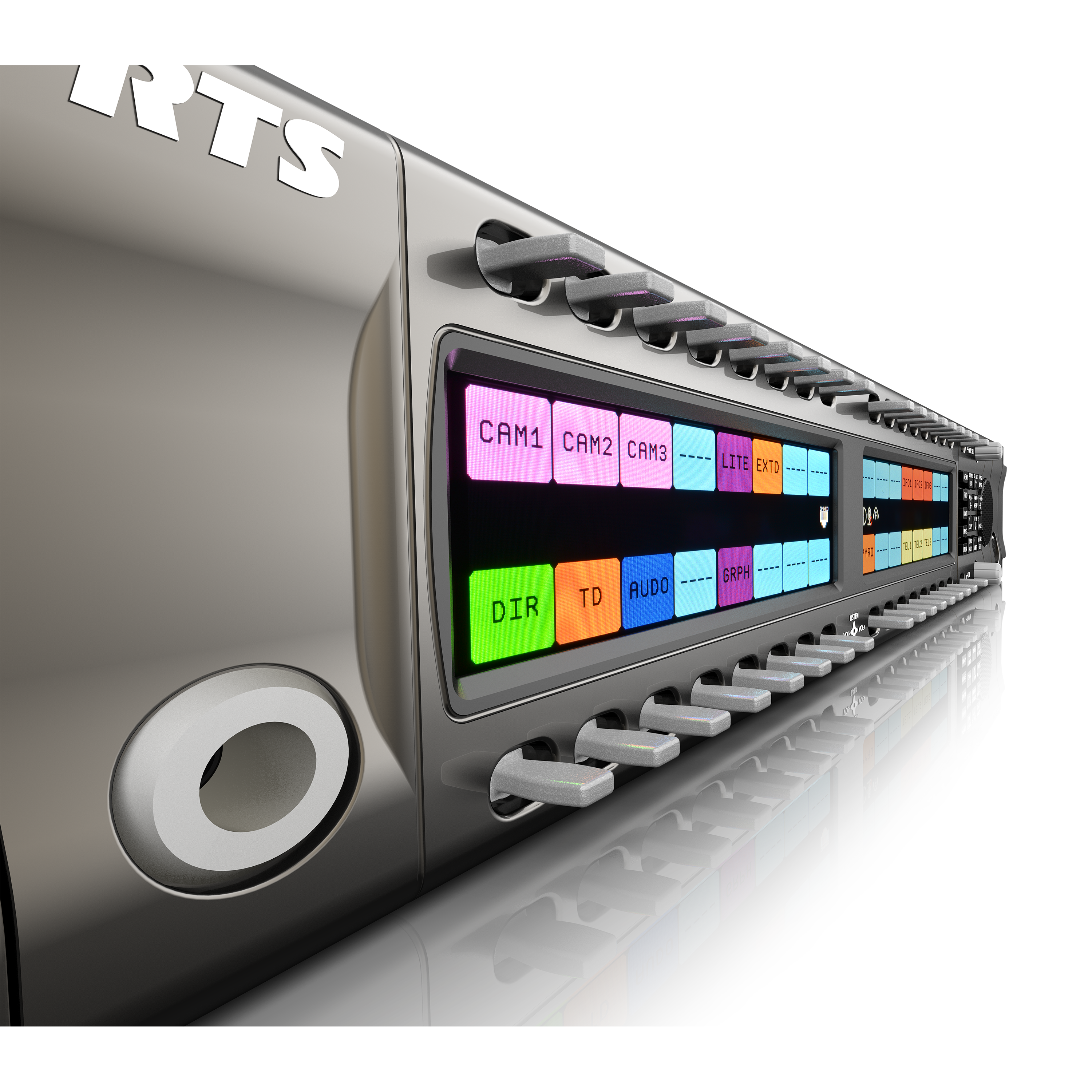

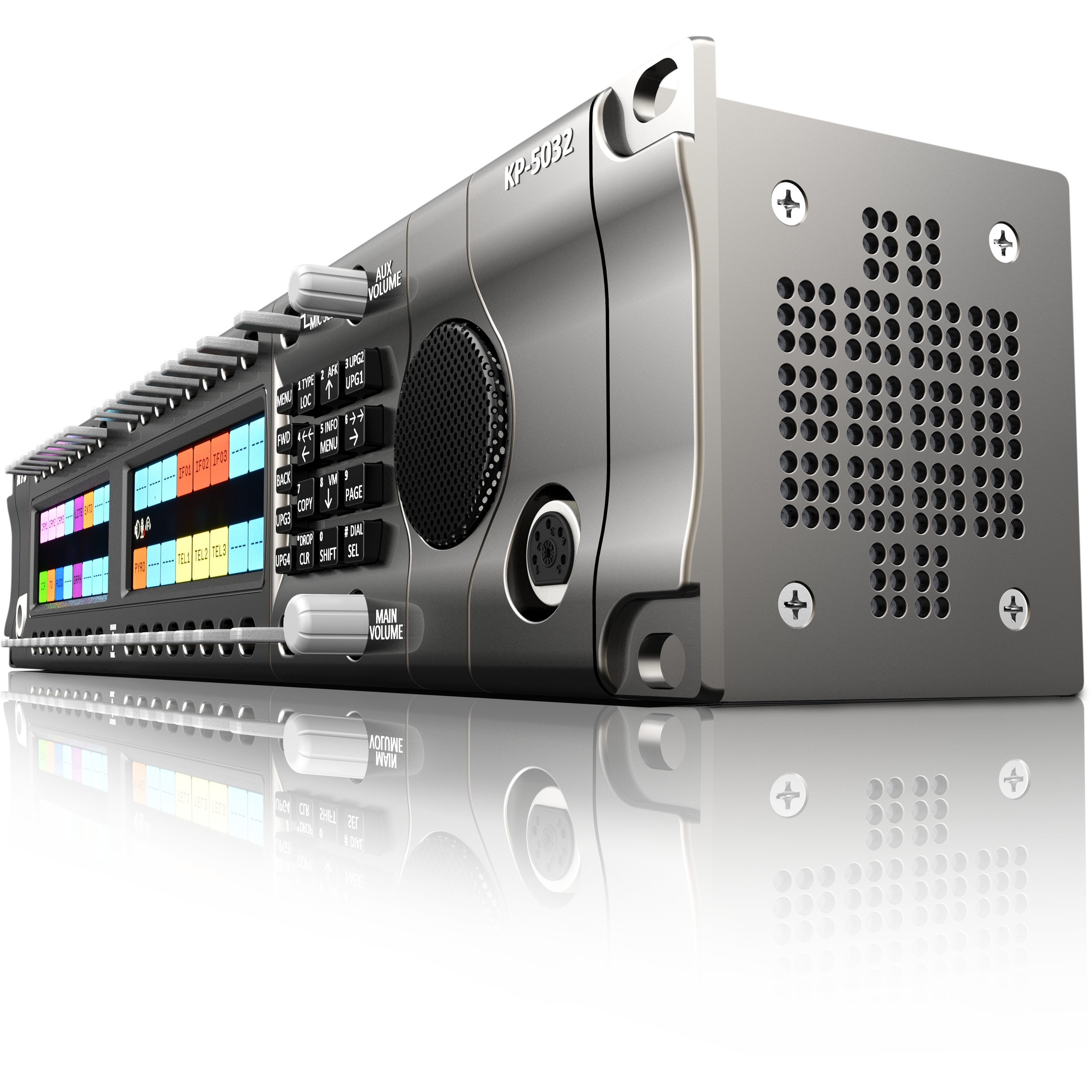

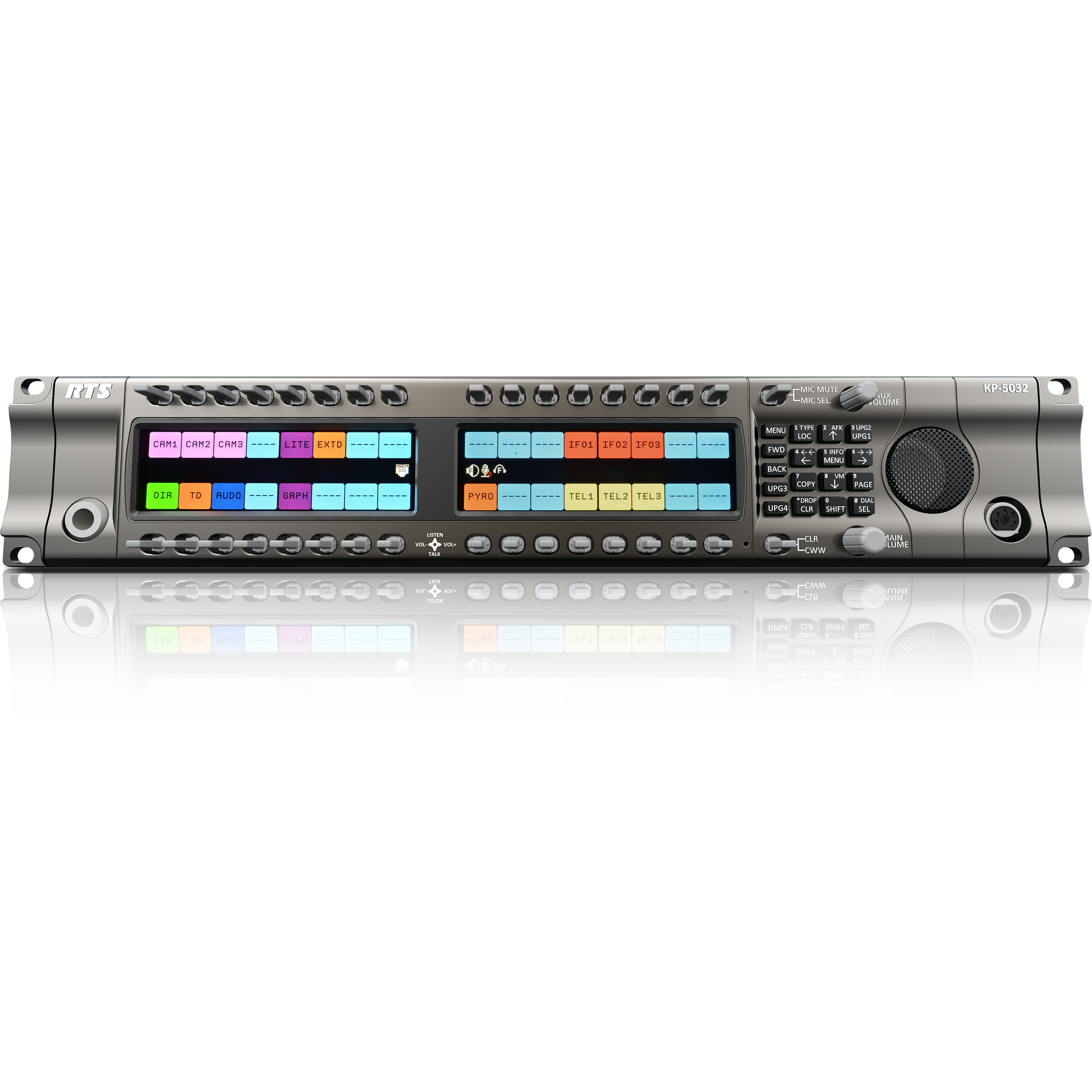

KP-5032 2RU, 32 keys by RTS Intercoms

KP-5032

2RU, 32 keys

Specifications

LCD Display
Active Area120.10mm (wide) x 35.86mm (high)
Dot Resolution576 x 172 pixels
Color Resolution16-bit (64K)RGB color
View Angle80 degrees (typical; all directions)
Power Supply
TypeExternal DC
AC Input100–240VAC 50/60Hz

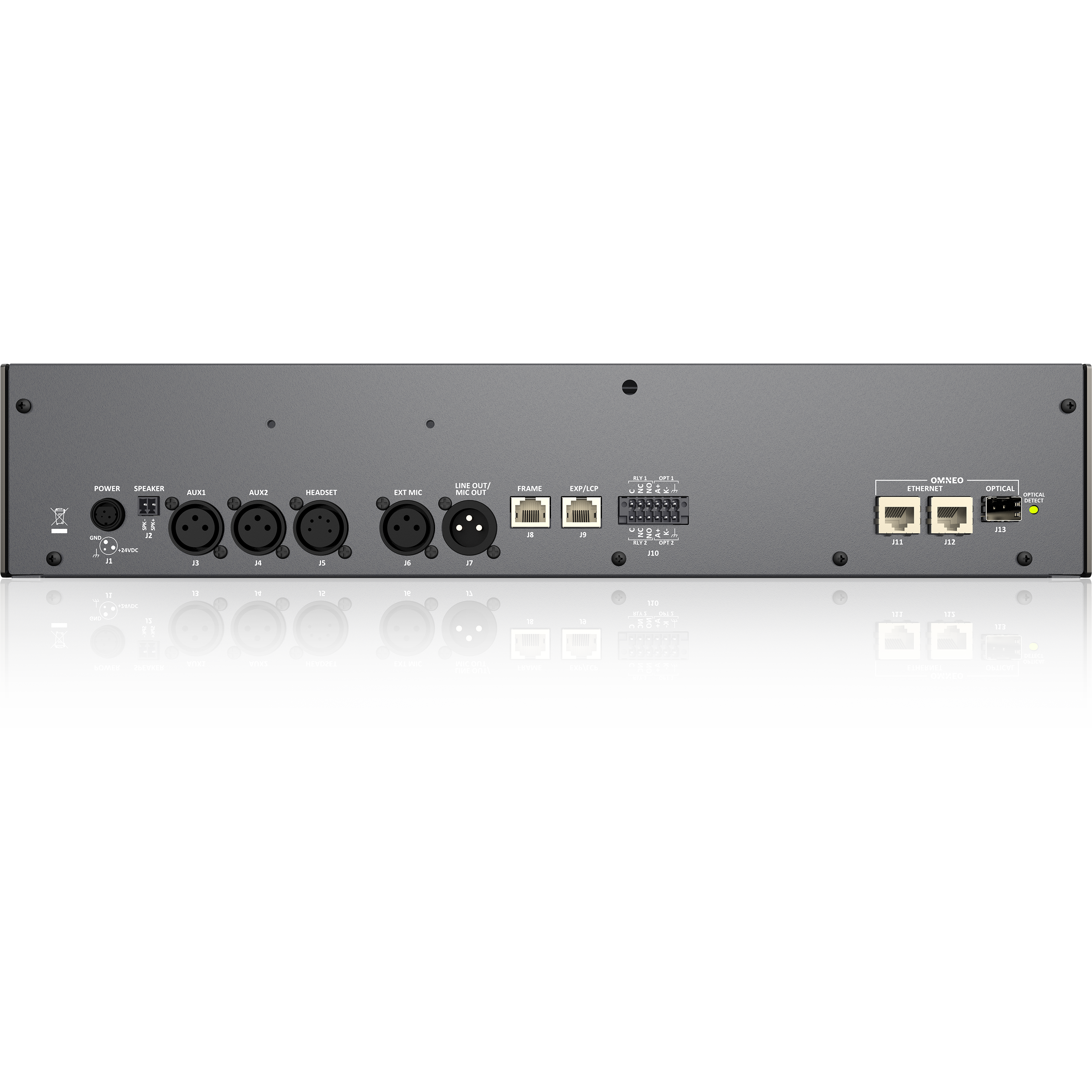

General Purpose Inputs and Outputs
Outputs
Type (relays)SPDT
Contact Rating1AMP @ 30VDC
Inputs
TypeOptically Coupled
Input Voltage5-18 VDC on A+
* A+ is internally pulled to 5VDC. Connect K- to to activate.
Inputs
Matrix
TypeBalanced
Typical Input Level+8dBu
Typical Input Impedance>10kΩ
Maximum Input Level+20dBu
Supported Bandwidth100Hz to 20KHz
Aux 1 and Aux 2
TypeBalanced
Typical Input Level+8dBu
Typical Input Impedance>10 k Ω
Front Panel Mic
TypeElectret
Typical Input Level-42dBu
Typical Input Impedance1kΩ
Maximum Input Level-25dBu
Rear Panel Mic
TypeElectret
Typical Input Level-42dBu
Typical Input Impedance1kΩ
Maximum Input Level-25dBu
Front and Rear Headset Mic - Electret
Typical Input Level-42dBu
Typical Input Impedance1kΩ
Maximum Input Level-25dBu
Front and Rear Headset Mic - Dynamic
Typical Input Level-50dBu
Typical Input Impedance600Ω
Maximum Input Level-25dBu
Outputs
Matrix
TypeBalanced
Typical Output Level+8dBu
THD+N% <0.20%
Typical Output Impedance600Ω
Maximum Output Level+20dBu
Frequency Response100Hz to 20KHz
MIC/LINE Out
TypeBalanced
Typical Output Level+8dBu
THD+N%<0.20%
Typical Output Impedance600Ω
Maximum Output Level+20dBu
Frequency Response100Hz to 20KHz
Headset - Front, Rear, Left, Right
Maximum
Output Power125mW for 32Ω load
Earphone Impedance16Ω and above
THD+N%<0.20%
Frequency Response100Hz to 20KHz
Speaker - Rear
Maximum Output Power5W for 8W load
Speaker Impedance4Ω and 8Ω
THD+N%<0.20%
Frequency Response100Hz to 20KHz
Speaker - Front
SPL84dBSPL for 1kHz sine wave @ 1 meter
Digital
OMNEO Channels
Typical OMNEO Latency1ms
Frequency Response20Hz - 20KHz
Environmental
Dimensions17.39” W(without rack ears) x 3.46” H x 3.88” D
(441.82mm x 87.96mm x 98.5mm
[111.11mm including volume knobs and lever keys])
Weight
KP-50324.89lb (2.22kg)
Power Supply0.53lb (.24kg)
Power Supply
Mounting Bracket0.30lbs (.14kg)
Temperature
Operating0° C to 55°C (32°F to 131°F)
Storage-20°C to 70°C (-4°F to 158°F)
Power Consumption
Nominal13 Watts
Maximum18 Watts
Maximum Volt Amp48 VA
CertificationCE Compliance
