ADAM-M
Mid-size modular matrix intercom
- 8 GPIO's Standard per Frame
- Compatible with most current & legacy RTS digital matrix intercom keypanels & accessories
- Dual-Purpose ports support both keypanel & four-Wire audio
- Supports fully redundant power supplies & controllers
- Individual cross-point level controls

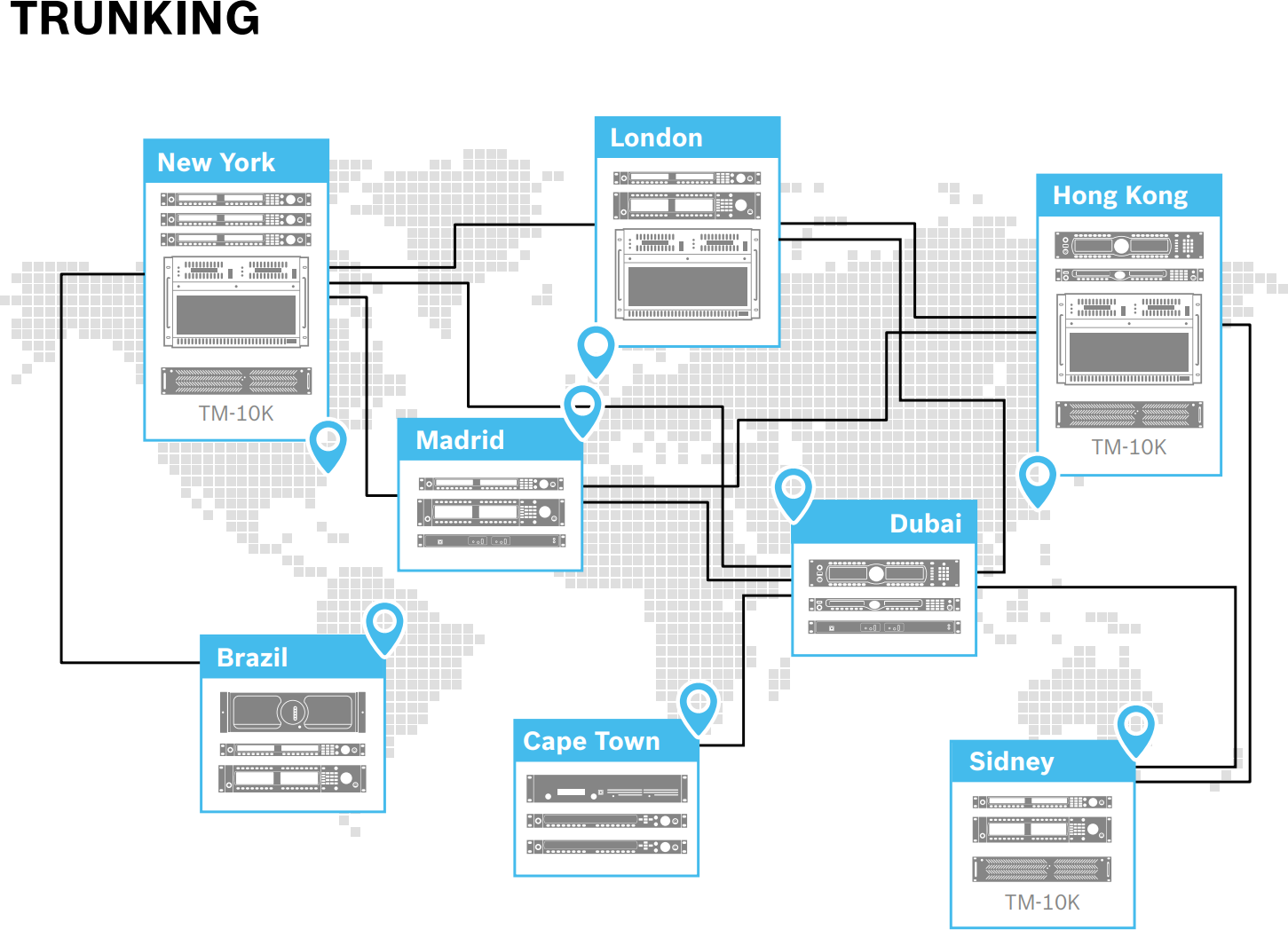

- Integrated support for RTS intelligent trunking
- Multi-level IFB, ISO, partylines, groups & GPI's all standard
- Non-Volatile configuration & crosspoint memory
- RealTime online configuration & monitoring
- RTS UPL (User-Programmable Language) for custom system configurations via pull-down menus
- Supports 16 to 448 users per system based on 3 RU frame(s)
- Supports custom cards for widely used industry interface
- Widest variety of interface cards in the industry
- Widest variety of wiring options in the industry
The sleek ADAM-M matrix provides 128+ ports in an extremely compact 3RU frame. ADAM frames support the widest variety of audio interface cards in the industry, including AIO, RVON VoIP, Omneo and MADI.
Specifications
| Port Capacity: Single Frame | 128 |
| Max ports, expanded system | 512 (Full OMNEO1) |
| Takes expansion cards | Yes |
| Rack Units | 3 |
| Redundant Power Supplies | Yes |
| Redundant Controllers | Yes |
Specifications | |
| Bus Expansion | Yes |
| AC Input | 90-264VAC, 50/60Hz |

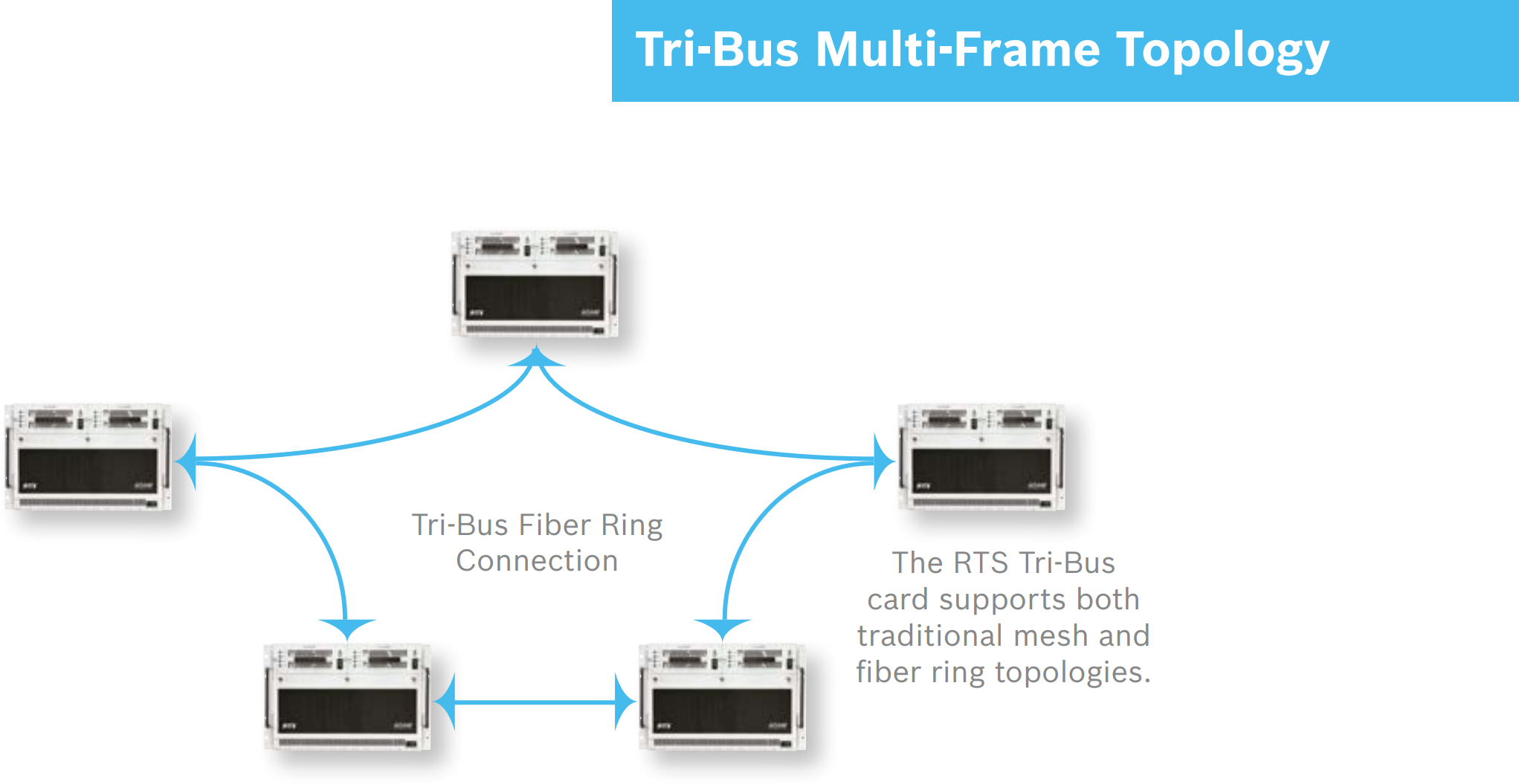

| Link Method | Single Mode Fiber or Multi Mode Fiber |
| Cable Length, Single mode | 40 km (TBX) |
| Cable Length, Multi mode | 550m (TBX) |
| Front-panel display | No |
| Display Type | NA |
| Audio Bits | 24 |
| OMNEO Audio | Yes |
| Trunking | Yes |
| Matrix PC Connection | Ethernet Serial |
| Field-upgradeable firmware | Yes |
| Integrated Party-Line Interface | No |
| General Purpose Outputs | External GPIO-16 |
| General Purpose Inputs | External GPIO-16 |
| Crosstalk | -85dB between adjacent channels |
| Operating Temperature | 0°C to 50°C |
| Ethernet Port | Yes |
| VOX on Input | Yes |
| AES Audio | No |
| Intuitive User Interface | Yes |
| Non-Destructive Download | Yes |
| Remote Configuration | Yes |
| Relays | External GPIO-16 |
| THD+Noise | at 21dBu, 1kHz (unweighted), 0.01% |
| Regulatory Approval | UL, CSA, CE, VDE, FCC, PSE, REACH, RoHS, WEEE, CCC, KC, ACMA C-Tick, China RoHS, and IECEE CB Scheme |
| Storage Temperature | -40° C to 70° |
| Storage Humidity | 95 |
| Operating Humidity | 95 |
| Frequency Response | 15 Hz to 20 KHz +/- 1dB |
| Audio Levels | +8dBu Nominal, +20dBu Max |
| Input Impedance | 22KΩ |
| Impedance | 600 |
