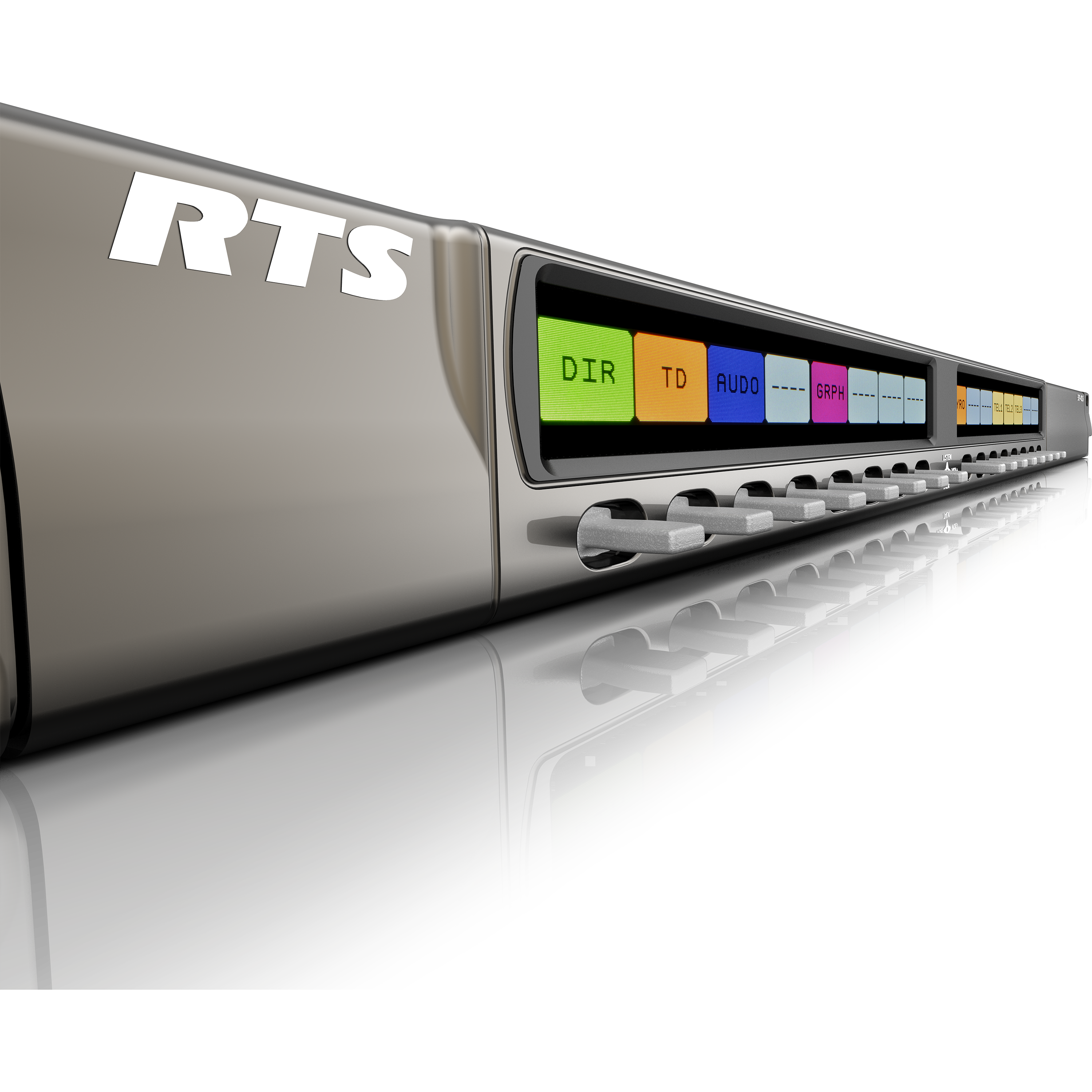

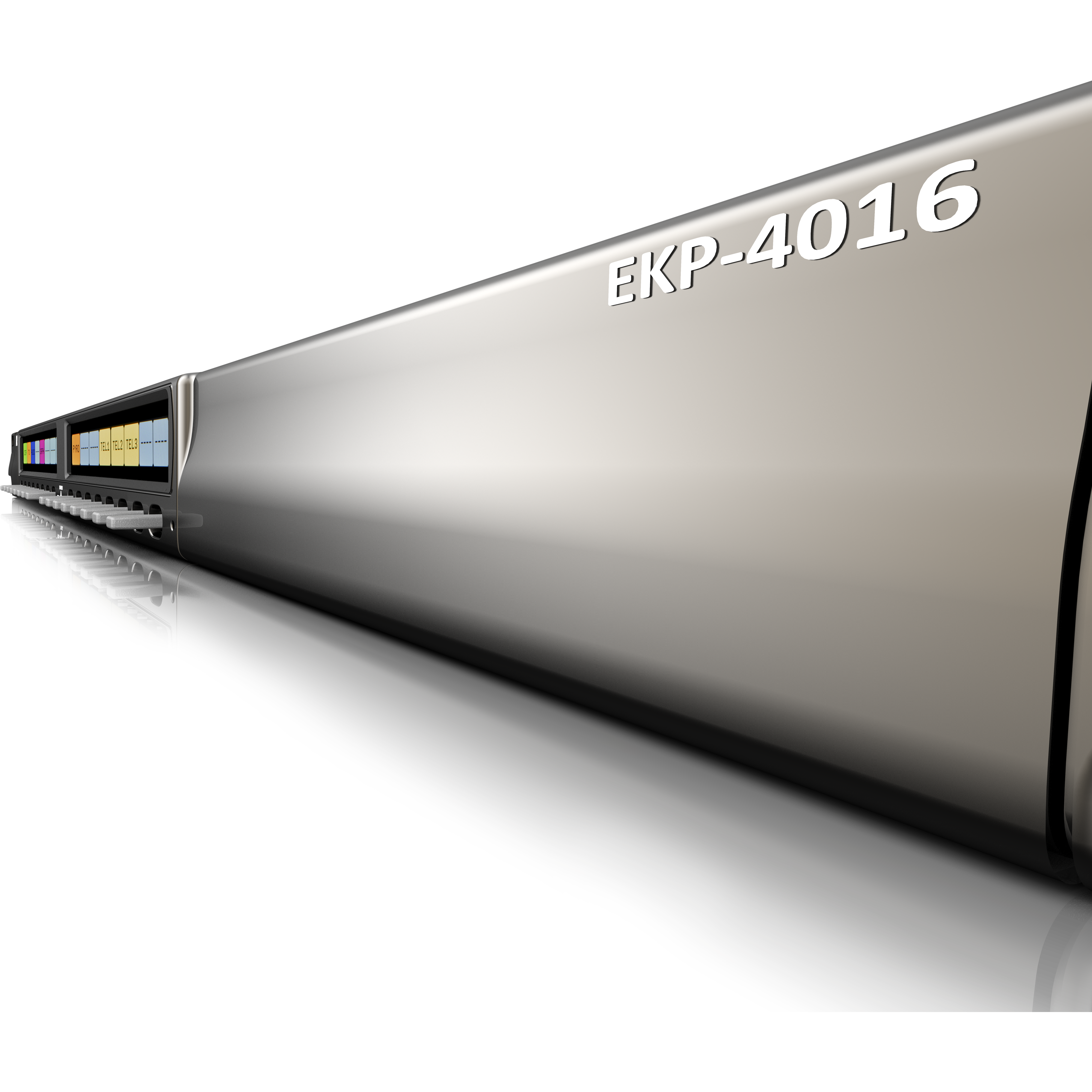

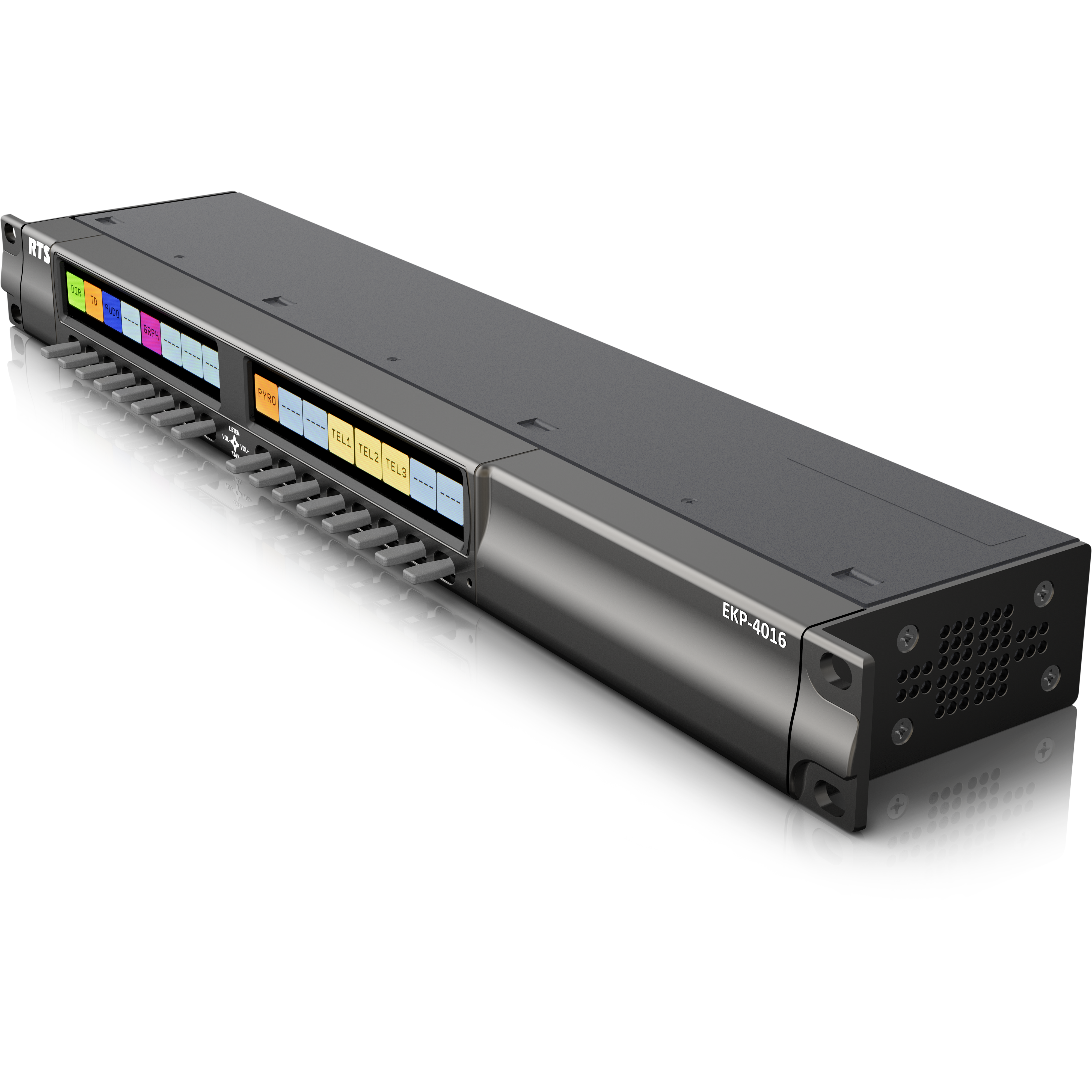

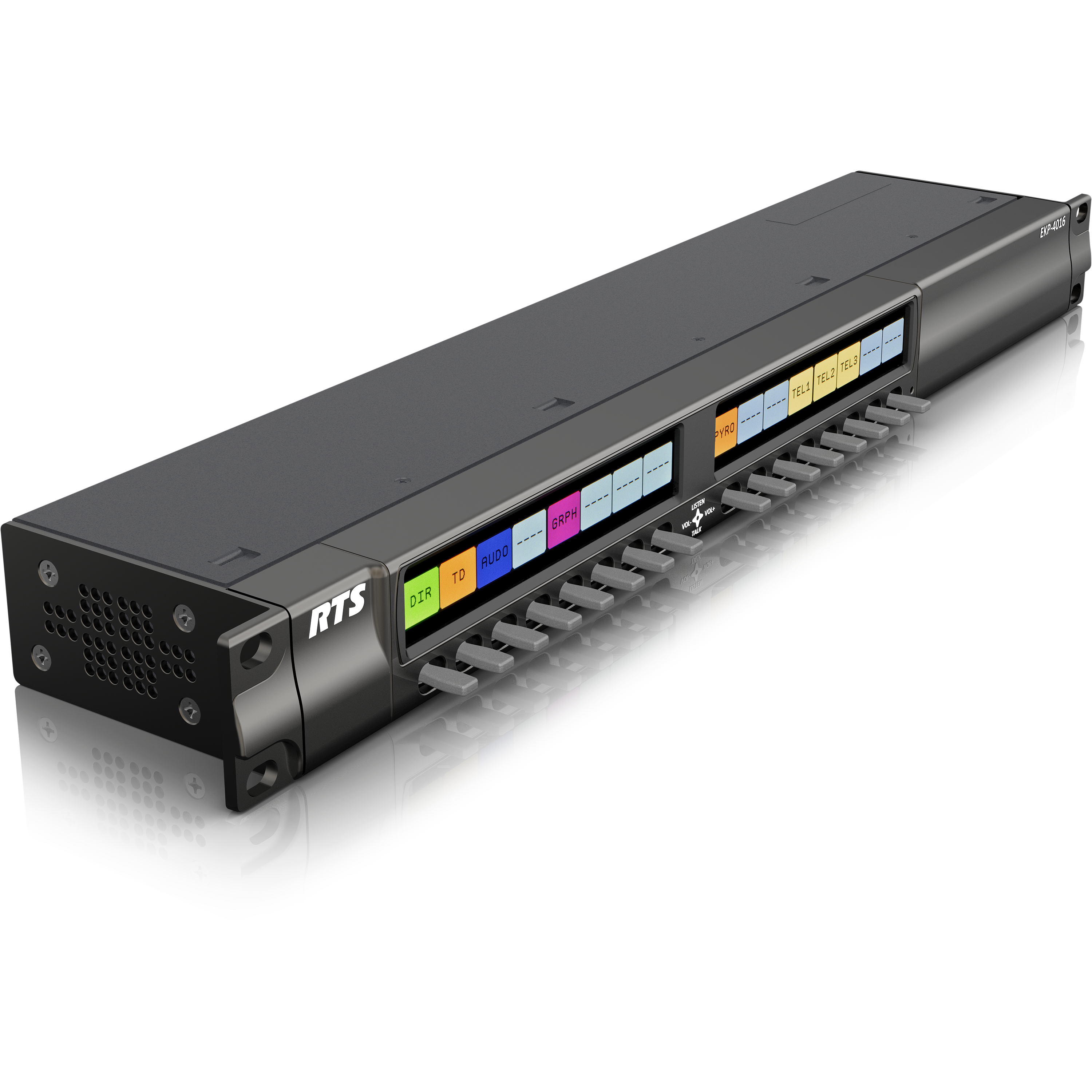

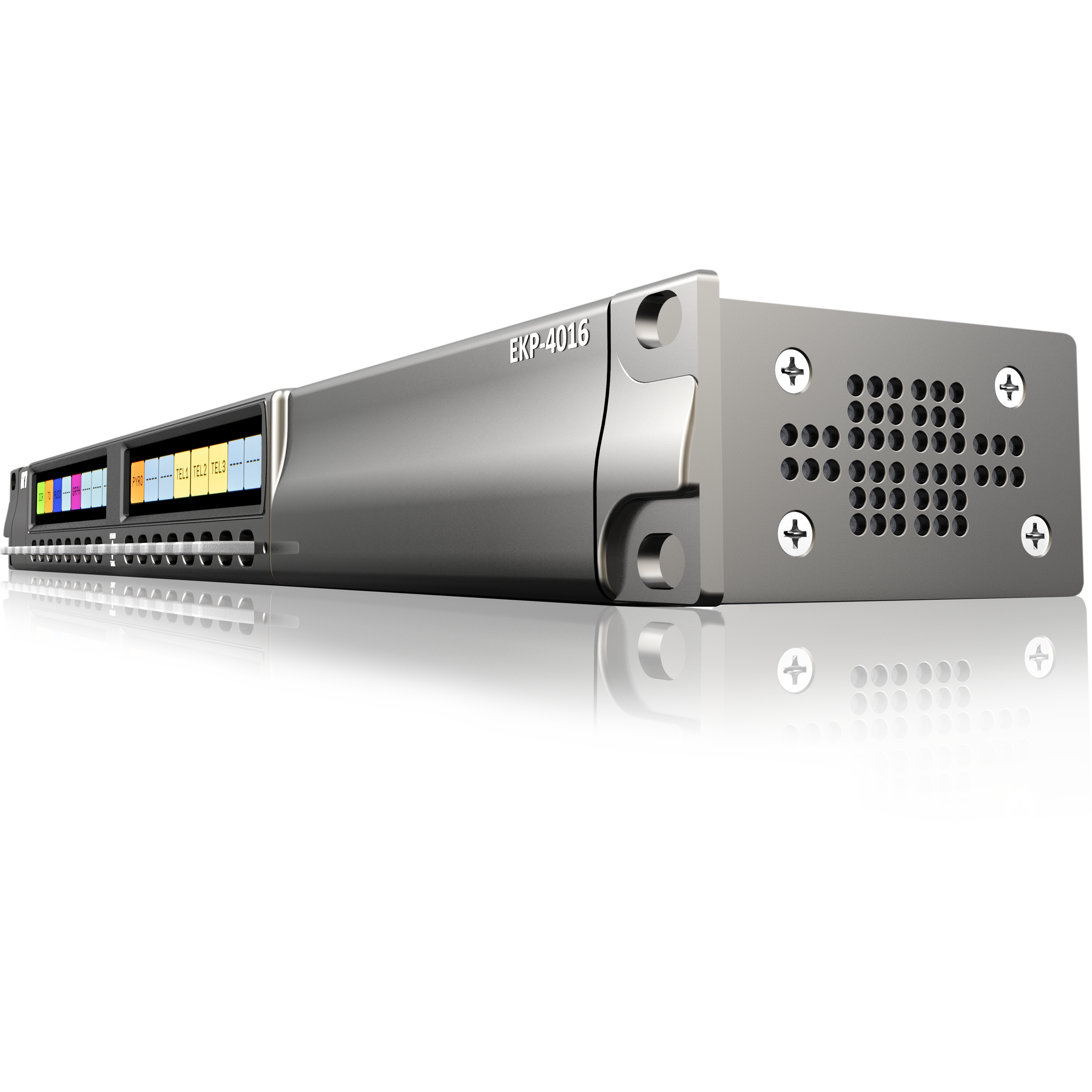

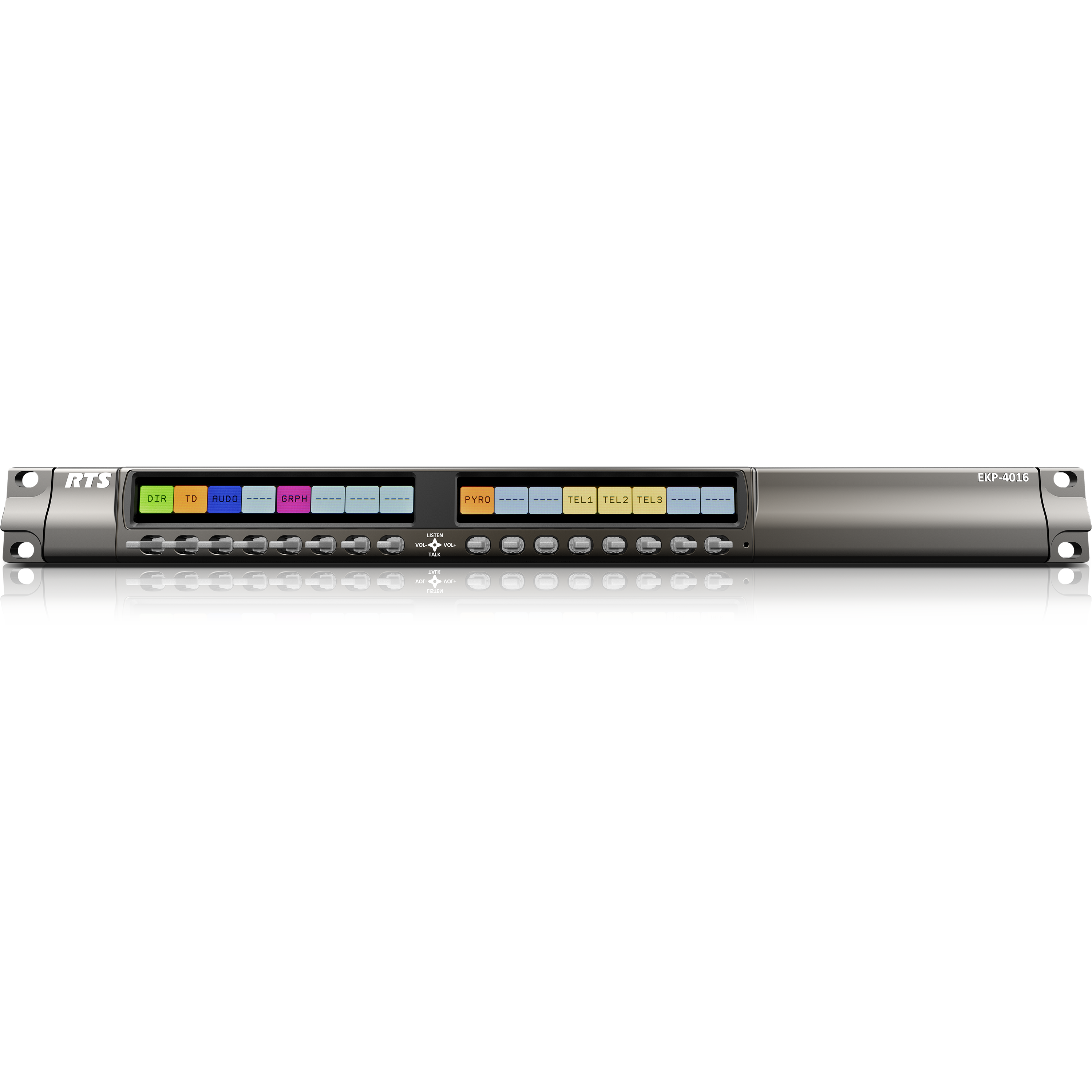

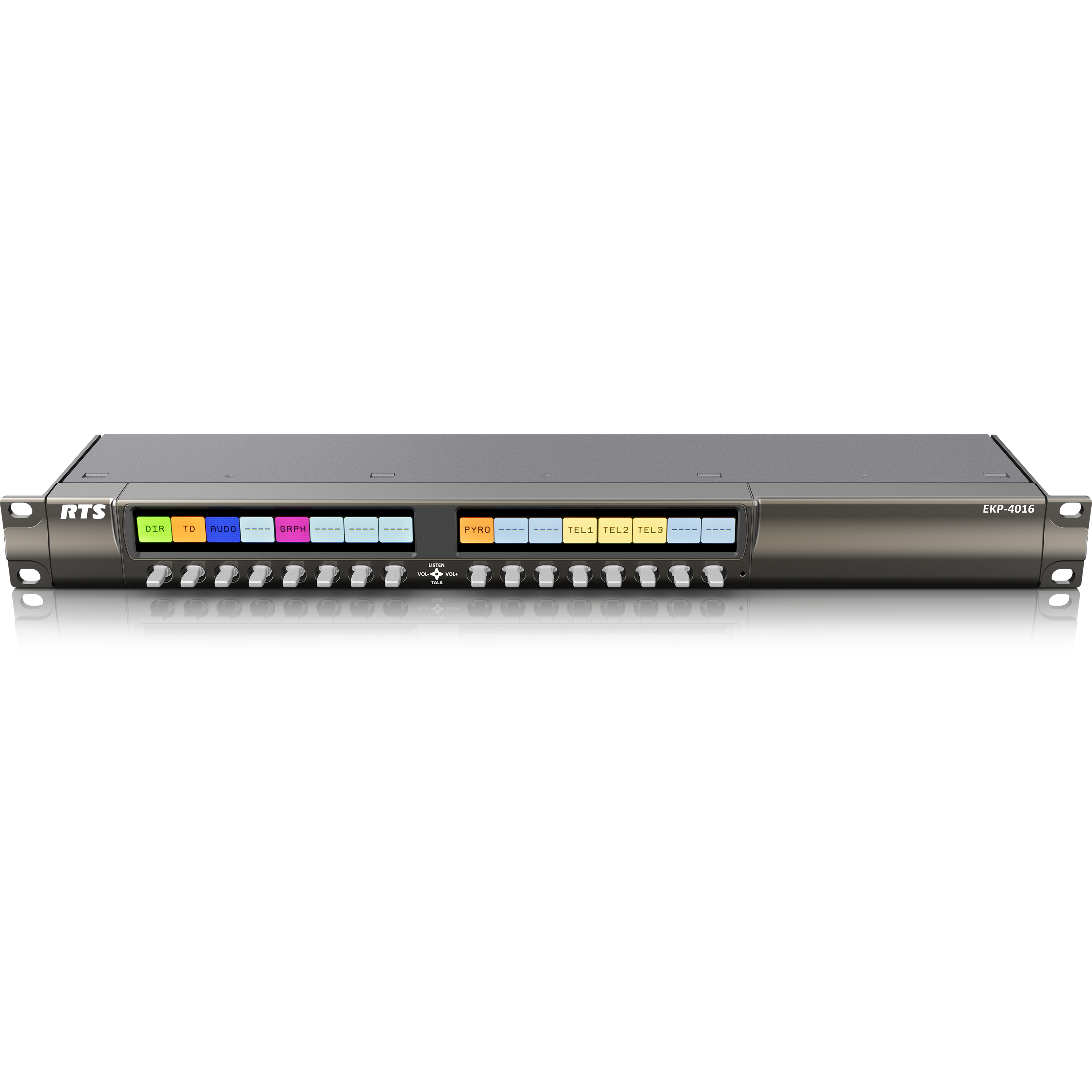

EKP-4016
1RU, 16-key expansion unit
- OMNEO Open Media Networking Standard
The new KP-Series is future-proof and so is your communication. The unparalleled flexibility features automatic hardware recognition plus the technology of OMNEO, so you get full backward compatibility and easy scalability.
- Full IP Connectivity and TCP-IP Layer 2 & 3 Compatibility
Out with the old and in with the more intuitive. The new design and an enhanced user interface enable easier understanding and improved operation. The software provides simple and intuitive navigation of menus, with the most commonly used features easily accessible.
- Advanced Signal Processing and AD/DA
Get high-quality audio transmission every time. The new keypanel family features two echo cancellation modes, plus quick AD/DA conversion – ensuring ultra-low latency and reducing noise, echo, delay and other malfunctions found in older technologies.
- User-Friendly, High-Res Color Display
Get high quality, inside and out. The new KP-Series keypanels feature a unified design, including color, contrast, resolution and viewing angle for complete communication harmony. Plus, multiple controls through ergonomically-designed levers.
- Backward compatibility
All KP-Series keypanels are compatible with older technologies such as analog audio in USOC and 568-B connector formats.
- Enhanced navigation menus
Optimized for ease of use.
Specifications
| LCD Display Active Area | 120.10mm x 18.77mm |
| LCD Display Dot Resolution | 576x90 |
| LCD Display Color Resolution | 16-bit (64K) RGB color |
| LCD Display View Angle | 80° (typical; all directions) |
| Power Requirements | 100~240VAC, 50–60Hz |
| Operating Temperature | 0°C to 55° |
| Height | 43.8mm |
| Width | 441.82mm |
| Depth | 98.5mm |
| Weight | 2.91lb (1.32kg) |
| Storage Temperature | -40°C to 70 |

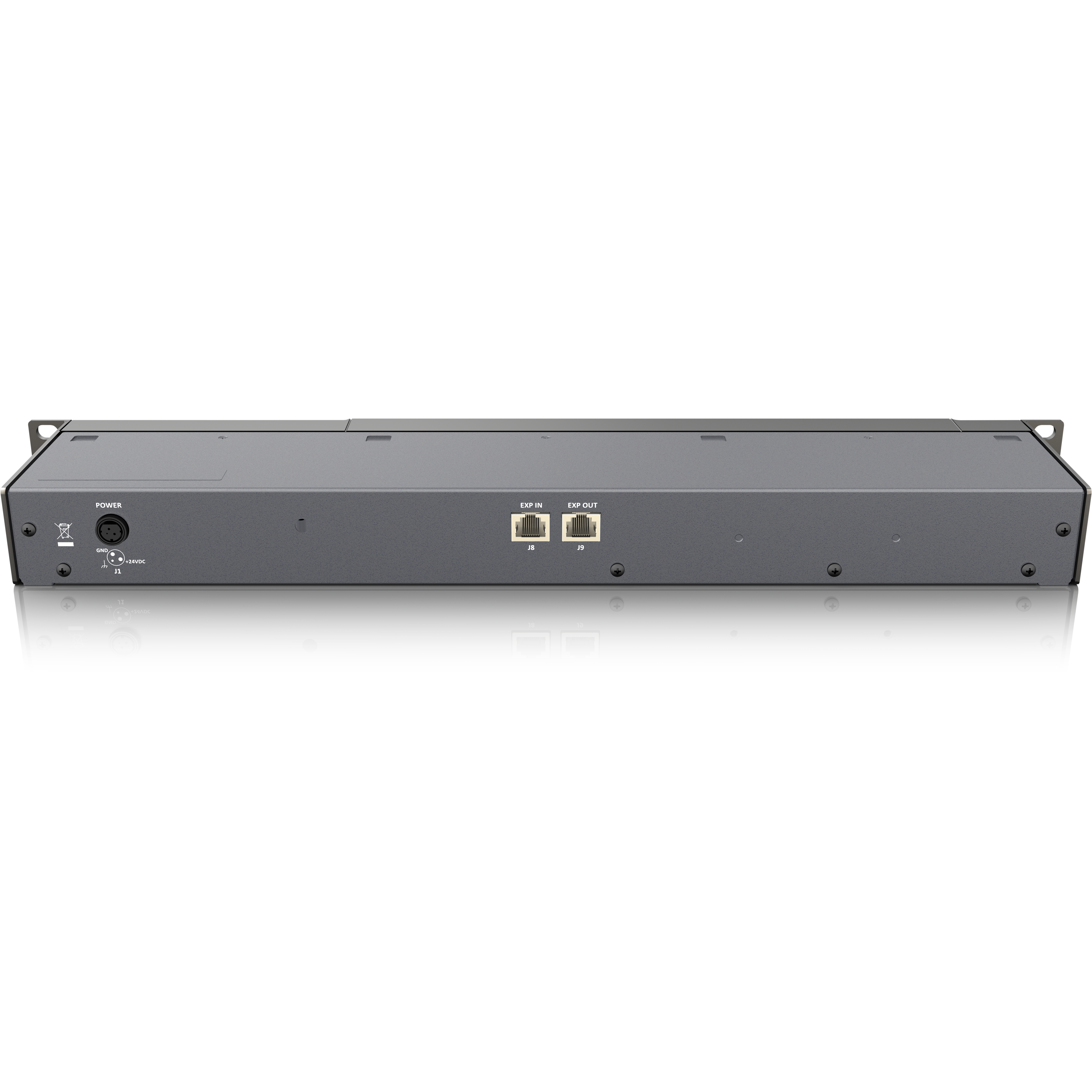

| Connector Options | EXP IN EXP OUT |
| Power Consumption | @110VAC – @220VAC – |
