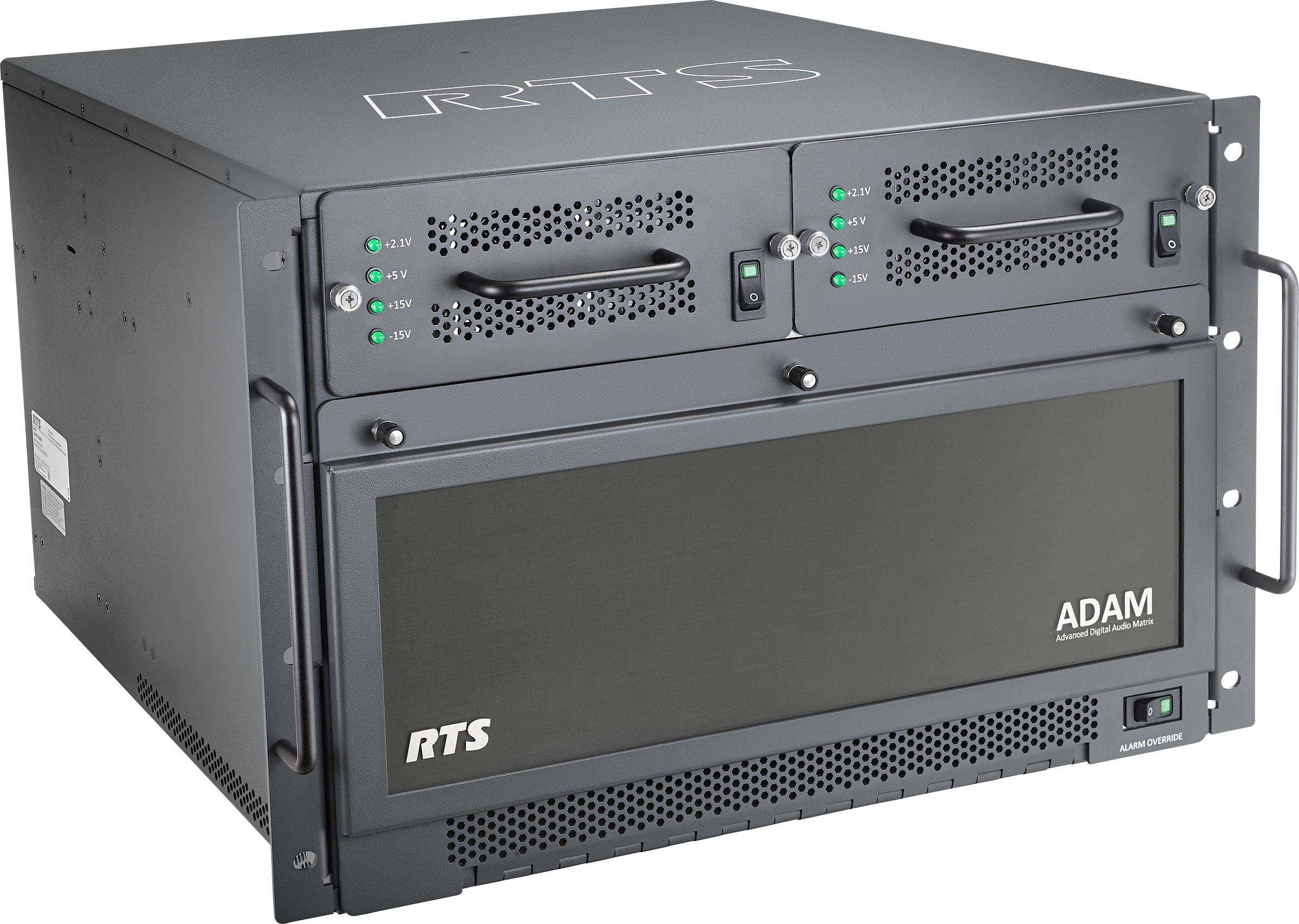

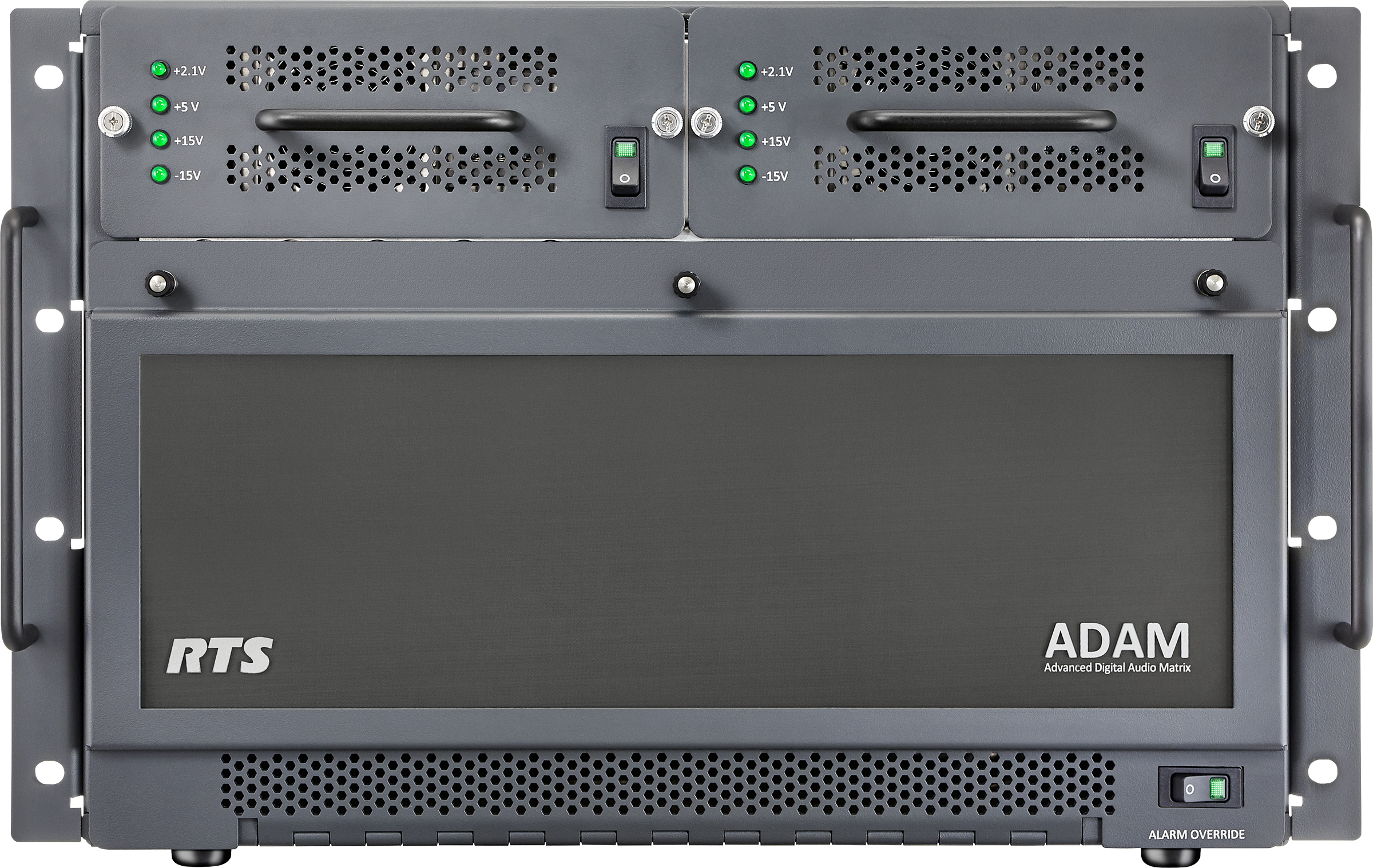

ADAM-2

Advanced Digital Audio Matrix

  • Supports all standards including VoIP, OMNEO, DANTE, Analog, SMPTE 2110, MADI, and more depending on cards populated in the frame.
  • The new ADAM 2 is designed with quieter fans, universal power supplies that operate in all countries and is compatible with ALL current and legacy RTS keypanels and accessories. It comes standard with multi-level IFB, ISO, Party-Lines, Groups, and GPIs. It supports from 8 to 880 users.
  • Supports real-time monitoring online and offline configuration and RTS UPL (User Programmable Language) for custom system configurations via pulldown menus.
  • In addition to digital and VoIP cards, the analog dualpurpose ports support both keypanel and 4-wire audio.
  • Integrated support for RTS Intelligent Trunking of 255 matrices (ADAM, ADAM-CS, ADAM-M, ADAM 2, Cronus, Zeus III, and ODIN).

The RTS family of Digital Intercom Matrices is the most extensive, widely used, scalable and backwards compatible line of intercoms in the world today. The high-end ADAM 2 Matrix supports 8 to 880 users per system; 512 ports possible in just a seven RU (Rack Units) frame.

Utilizing a patented TDM (Time Division Multiplex) technique, the ADAM 2 grows linearly as users are added. The system comes standard with redundant universal power supplies (100-240 VAC), and supports redundant controllers, allowing for automatic changeover in the event of failure.

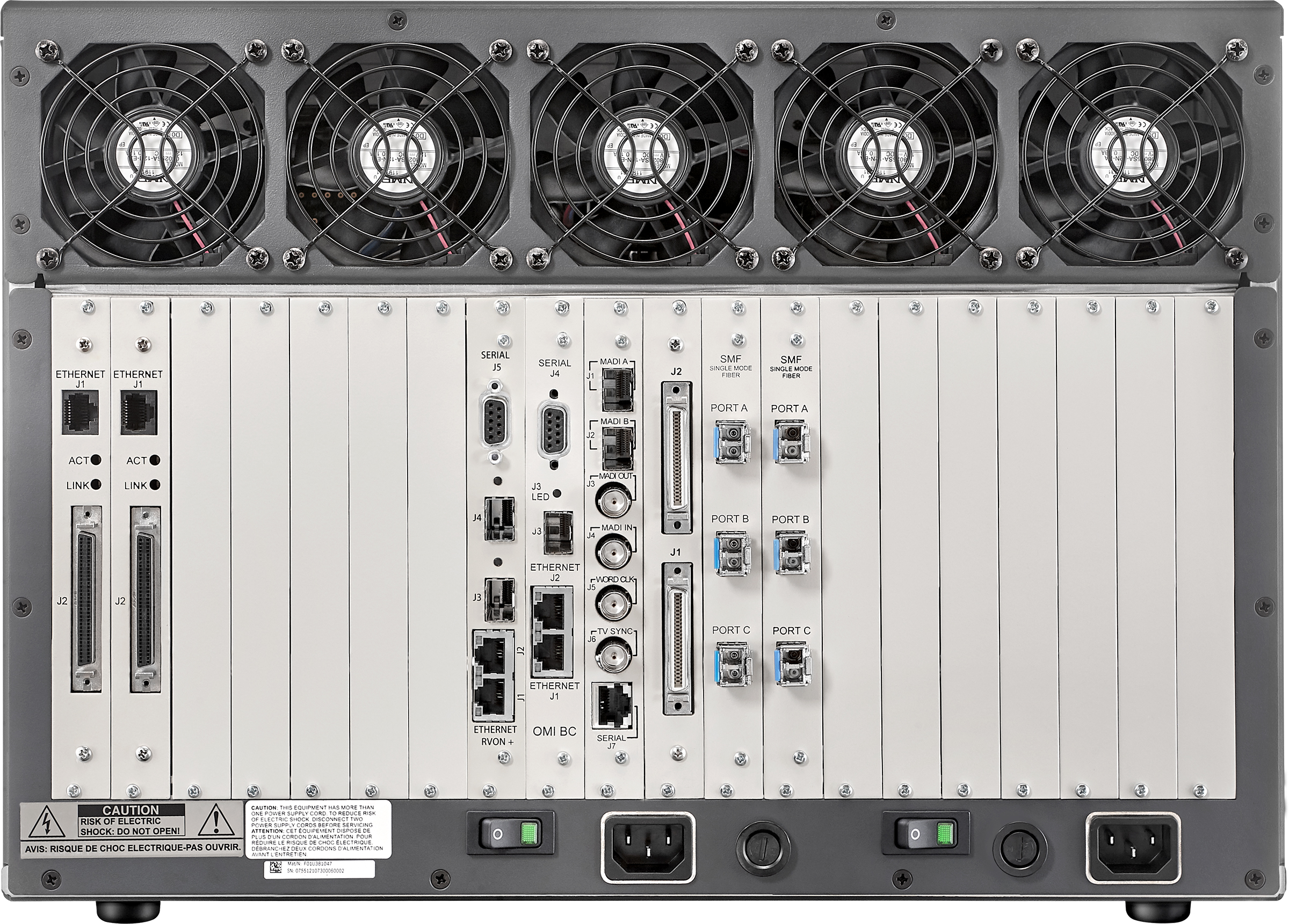

ADAM 2 is available with a wide variety of Interface cards in the industry, including the MADI-16, OMI, AIO-16A, and RVON + interfaces. It also has the wide variety of cabling options, including RJ11, RJ45, DB9, jack fields, and many others.

With its second generation controller card, Ethernet connectivity is achieved between the ADAM 2 Intercom and AZedit. ADAM 2 can support 32 simultaneous AZedit sessions.

Specifications

Matrix Size8 to 880 ports
17 AIO slots
2 Master Controller slots
1 Blank slot
Matrix TypeDigital Audio
TDM Bus
Signal Format44.1 kHz, 24-bit
RedundancyPower/Controller
Matrix Frame Dimensions12.25 in. (31.12 cm) H x 19 in. (48.26 cm) W x 20 in. (50.8 cm) D
Power100 VAC to 240 VAC, 50/60 Hz, 700 VA
ApprovalsCE Compliant and UL Certified
TemperatureOperating 32° F to 122° F (0° C to 50° C)
Storage -4° F 158° F (-20° C to 70° C)
VentilationMinimum 6” clearance to fan area, unobstructed

Downloads

Technical Documentations
Name Language & Download
Diagram: ADAM & ADAM-CS Basic Components en
Diagram: ADAM DBX Systems en
Diagram: ADAM Intercom Cable Connections en
Diagram: ADAM Systems en
RTS Application Guide en
Application Note: AES67 en
Application Note: SIP Server en
Application Note: Telex Radio Dispatch IP-223 to RTS Intercom System en
Application Note: Trunking en
RTS Proper Cleaning Guidelines en
Use Case: Aerospace en
Use Case: Nuclear en
Name Language & Download
EU-Declaration of Conformity en
Name Language & Download
ADAM-2 Technical Data Sheet en
Name Language & Download
ADAM-2 Technical Manual en
