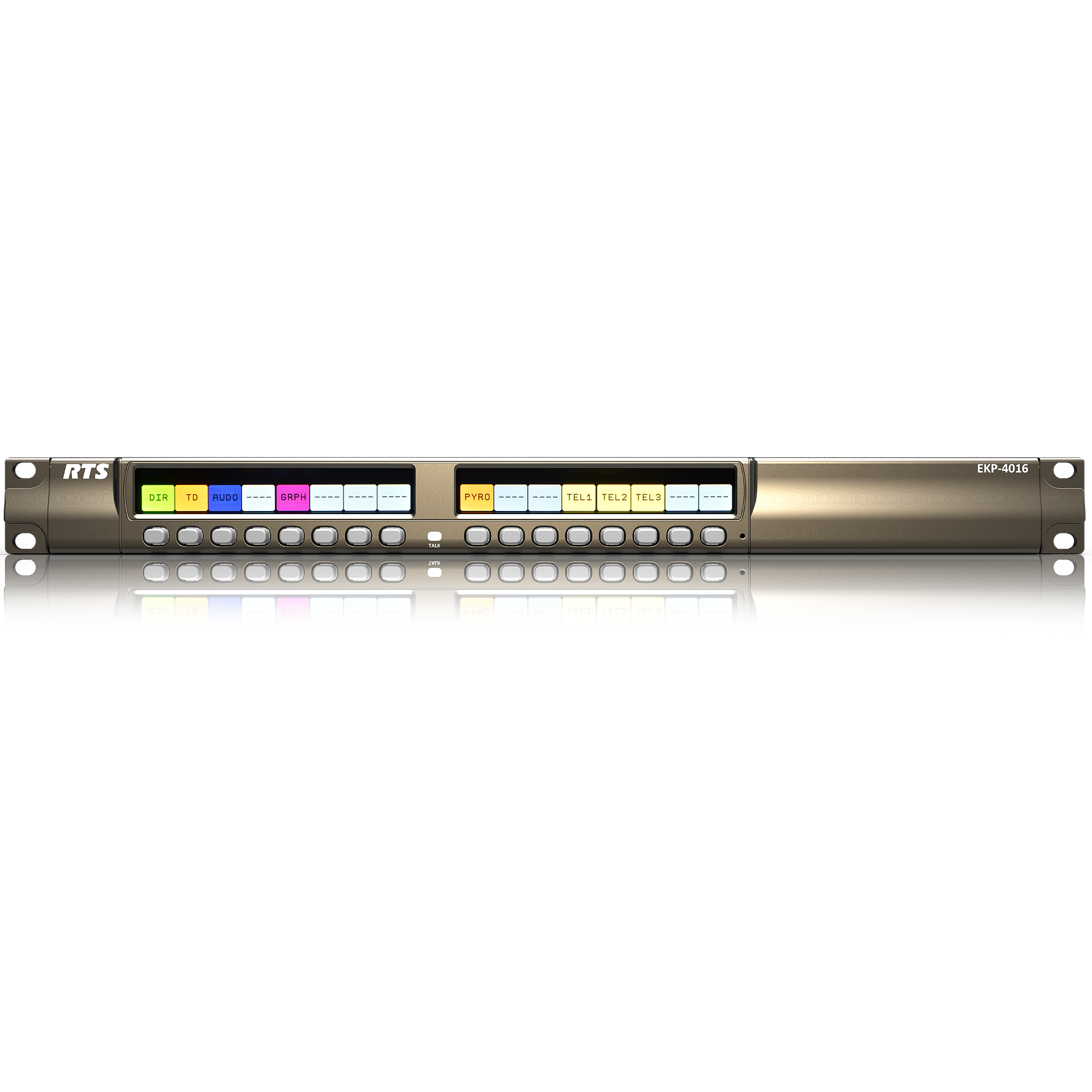

EKP-4016PB

1 RU, 16-key expansion unit with push buttons

  • OMNEO Open Media Networking Standard
  • The new KP-Series is future-proof and so is your communication. The unparalleled flexibility features OMNEO, so you get full backward compatibility and easy scalability.
  • Full IP Connectivity and TCP-IP Layer 2 & 3 Compatibility
  • Out with the old and in with the more intuitive. The new design and an enhanced user interface enable easier understanding and improved operation. The software provides simple and intuitive navigation of menus, with the most commonly used features easily accessible.
  • Advanced Signal Processing and AD/DA
  • Get high-quality audio transmission every time. The new keypanel family features two echo cancellation modes, plus quick AD/DA conversion – ensuring ultra-low latency and reducing noise, echo, delay and other artefacts occasionally present in older technologies.
  • User-Friendly, High-Res Color Display
  • Get high quality, inside and out. The new KP-Series keypanels feature a unified design, including color, contrast, resolution and viewing angle for complete communication harmony. Plus, the popular KP-Series of keypanels now features an expansion panel with ergonomically designed pushbuttons. The pushbutton expansion panel can be used with the KP-4000/5000 series of lever keypanels.
  • Backward compatibility
  • All KP-Series keypanels are compatible with older technologies such as analog audio in USOC and 568-B connector formats.
  • Enhanced navigation menus
  • Optimized for ease of use.

Specifications

LCD Display Active Area 120.10mm x 18.77mm
LCD Display Dot Resolution 576x90
LCD Display Color Resolution 16-bit (64K) RGB color

LCD Display View Angle 80° (typical; all directions)
Power Requirements 100~240VAC, 50–60Hz
Operating Temperature 0°C to 55°°C
Storage Temperature -40°C to 70°C
Connector Options EXP IN
EXP OUT
Power Consumption @110VAC –
@220VAC –
Height 43.8mm
Width 441.82mm
Depth 98.5mm
Weight 2.91lb (1.32kg)

Downloads

Name Size Date
Application Notes: AES67 243KB Apr 19, 2017
RTS Application Guide 14.92MB Apr 17, 2019
RTS Proper Cleaning Guidelines 91KB Jun 9, 2020
Name Language Size Date
Kp-series brochure EN 1.69MB Apr 16, 2019
RTS full-line catalog EN 8.56MB Jan 29, 2020
Name Language Size Date
EKP-4016 Technical Data Sheet EN 537KB Aug 16, 2018

EKP 4016PB

BackStraight EKP4016

Name Language Size Date
KP-5032 Keypanel & KP-4016 Keypanel Technical Manual EN 11.04MB Sep 10, 2020
Name Language Size Date
Warranty conditions for RTS products in North America EN 159KB Sep 14, 2020
General Terms & Conditions of Deliver for Export Business EN 57KB Nov 26, 2014
Allgemeine Lieferbedingungen DE 184KB Nov 30, 2016
Name Size Date
Reduced Frequency Response on KP Series RVON audio 276KB Dec 8, 2017
Name Language Size Date
Adding Dante to Your Network Audinate EN 158KB Apr 4, 2016
Dante Network Unsupported EEE Switches Audinate EN 71KB Apr 4, 2016
IP Networks Used for Intercom EN 70KB May 5, 2016
OMNEO Configuration EN 1.89MB May 5, 2016
OMNEO Network Requirements & Considerations EN 177KB Apr 4, 2016
RVON Layout Model EN 1.21MB May 5, 2016
RVON UDP Ports EN 34KB Apr 4, 2016
