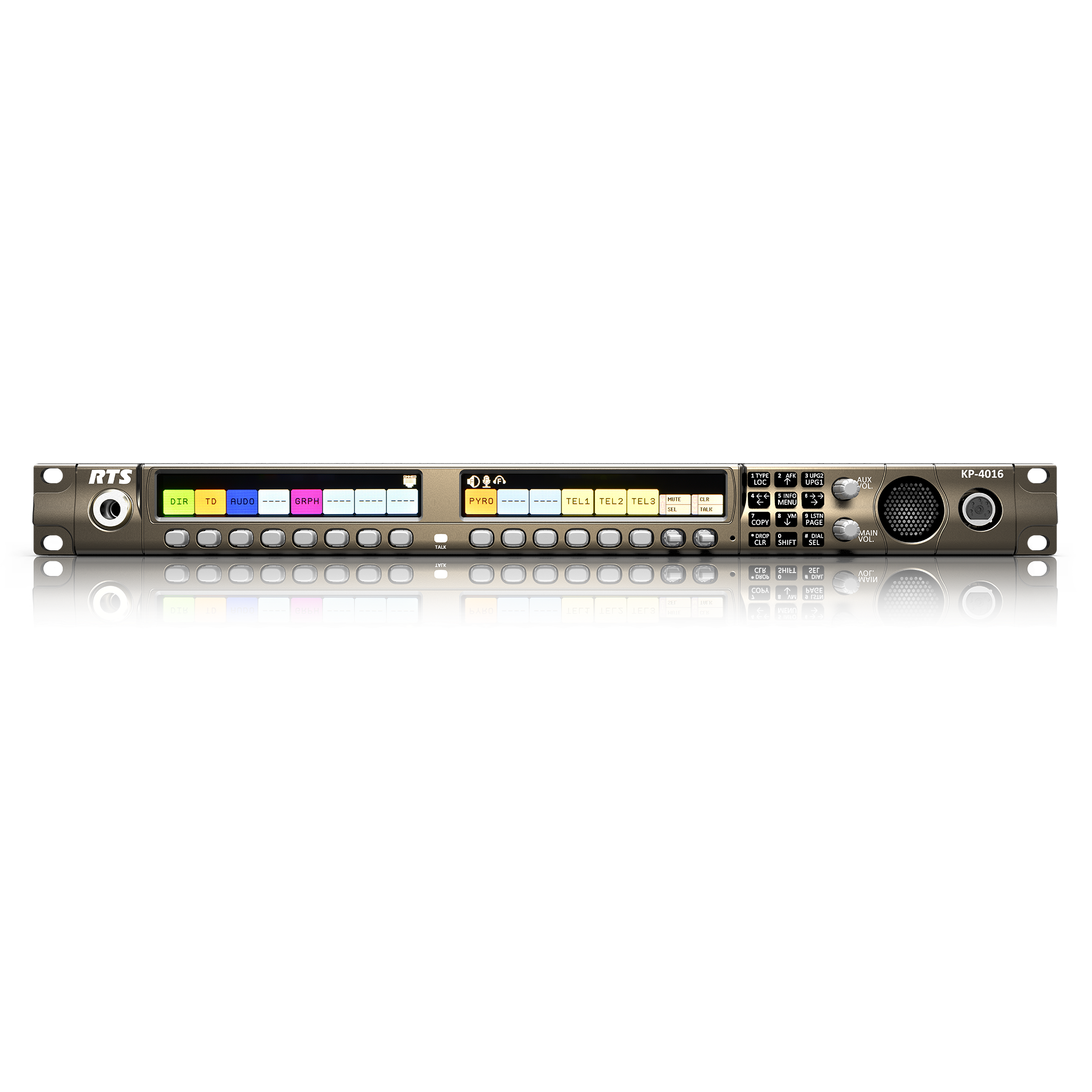

KP-4016PB
1RU, 16 keys (14 pushbutton keys & 2 additional lever controls)
- OMNEO Open Media Networking Standard
The new KP-Series is future-proof and so is your communication. The unparalleled flexibility features OMNEO, so you get full backward compatibility and easy scalability.
- Full IP Connectivity and TCP-IP Layer 2 & 3 Compatibility
Out with the old and in with the more intuitive. The new design and an enhanced user interface enable easier understanding and improved operation. The software provides simple and intuitive navigation of menus, with the most commonly used features easily accessible.
- Advanced Signal Processing and AD/DA
Get high-quality audio transmission every time. The new keypanel family features two echo cancellation modes, plus quick AD/DA conversion ensuring ultra-low latency and reducing noise, echo, delay and other artefacts occasionally present in older technologies.
- User-Friendly, High-Res Color Display
Get high quality, inside and out. The new KP-Series keypanels feature a unified design, including color, contrast, resolution and viewing angle for complete communication harmony. Plus, the popular 1RU keypanel is now available with ergonomically designed push buttons.
- Backward compatibility
All KP-Series keypanels are compatible with older technologies such as analog audio in USOC and 568-B connector formats.
- Standardized connectors
All previous hardware connector options (RC, GPI, and ancillary items) are now standard.
- Enhanced navigation menus
Optimized for ease of use.
- Front panel headset connector
The KP-4016PB is available with 5-pin XLR (6-pin compatible) or 4-pin XLR headset connector.
Specifications
| LCD Display | |
| Active Area | 120.10mm (wide) x 18.77mm (high) |
| Dot Resolution | 576 x 90 pixels |
| Color Resolution | 16-bit (64K)RGB color |
| View Angle | 80 degrees (typical; all directions) |
| Power Supply | |
| Type | External DC |
| AC Input | 100–240VAC 50/60Hz |
Specifications | |
| General Purpose Inputs and Outputs | |
| Outputs | |
| Type (relays) | SPDT |
| Contact Rating | 1AMP @ 30VDC |
| Inputs | |
| Type | Optically Coupled |
| Input Voltage | 5-18 VDC on A+ * A+ is internally pulled to 5VDC. Connect K- to to activate. |
| Inputs | |
| Matrix | |
| Type | Balanced |
| Typical Input Level | +8dBu |
| Typical Input Impedance | >10kΩ |
| Maximum Input Level | +20dBu |
| Supported Bandwidth | 100Hz to 20KHz |
| Aux 1 and Aux 2 | |
| Type | Balanced |
| Typical Input Level | +8dBu |
| Typical Input Impedance | >10 k Ω |
| Front Panel Mic | |
| Type | Electret |
| Typical Input Level | -42dBu |
| Typical Input Impedance | 1kΩ |
| Maximum Input Level | -25dBu |
| Rear Panel Mic | |
| Type | Electret |
| Typical Input Level | -42dBu |
| Typical Input Impedance | 1kΩ |
| Maximum Input Level | -25dBu |
| Front and Rear Headset Mic - Electret | |
| Typical Input Level | -42dBu |
| Typical Input Impedance | 1kΩ |
| Maximum Input Level | -25dBu |
| Front and Rear Headset Mic - Dynamic | |
| Typical Input Level | -50dBu |
| Typical Input Impedance | 600Ω |
| Maximum Input Level | -25dBu |
| Outputs | |
| Matrix | |
| Type | Balanced |
| Typical Output Level | +8dBu |
| THD+N% | <0.20% |
| Typical Output Impedance | 600Ω |
| Maximum Output Level | +20dBu |
| Frequency Response | 100Hz to 20KHz |
| MIC/LINE Out | |
| Type | Balanced |
| Typical Output Level | +8dBu |
| THD+N% | <0.20% |
| Typical Output Impedance | 600Ω |
| Maximum Output Level | +20dBu |
| Frequency Response | 100Hz to 20KHz |
| Headset - Front, Rear, Left, Right | |
| Maximum | |
| Output Power | 125mW for 32Ω load |
| Earphone Impedance | 16Ω and above |
| THD+N% | <0.20% |
| Frequency Response | 100Hz to 20KHz |
| Speaker - Rear | |
| Maximum Output Power | 5W for 8Ω load |
| Speaker Impedance | 4Ω and 8Ω |
| THD+N% | <0.20% |
| Frequency Response | 100Hz to 20KHz |
| Speaker - Front | |
| Front | 84dBSPL for 1kHz sine wave @ 1 meter |
| Digital | |
| OMNEO Channels | |
| Typical OMNEO Latency | 1ms |
| Frequency Response | 20Hz - 20KHz |
| Environmental | |
| Dimensions | 17.39” W(without rack ears) x 1.72” H x 3.88” D (441.82mm x 43.8mm x 98.5mm [111.11mm including volume knobs and lever keys]) |
| Weight | |
| KP-4016 | 3.5lb (1.58kg) |
| Power Supply | 0.53lb (.24kg) |
| Power Supply | |
| Mounting Bracket | 0.30lbs (.14kg) |
| Temperature | |
| Operating | 0° C to 55°C (32°F to 131°F) |
| Storage | -20°C to 70°C (-4°F to 158°F) |
| Power Consumption | |
| Nominal | 12 Watts |
| Maximum | 15 Watts |
| Maximum Volt Amp | 48 VA |
| Certification | CE Compliance UL Certified |
