OMNEO
The OMNEO media networking architecture allows the transport and easy management of media, control, and other data over IP networks. OMNEO provides the highest levels of audio quality as well as synchronization whilst ensuring lowest levels of latency in a highly reliable and secure set up at competitively low system cost due to the use of standard IT components and lower installation as well as maintenance cost.
OMNEO is based on two key components – media transport and control data. Technologies such as Dante from Audinate Pty for transport and AES70, also known as OCA (Open Control Architecture), for control are fully supported within OMNEO.
Products with OMNEO onboard are enhanced by Bosch specific features. OMNEO provides extensive interoperability, flexibility, reliability and future-proof technology by utilizing an open public standards. These technologies provide a number of options for the interconnection of equipment from different manufacturers to exchange control and media content. Additionally, OMNEO provides numerous advanced features and tools to support mission-critical system applications. Systems using the OMNEO media networking architecture can be scaled to include up to 10,000 nodes and can interoperate across multiple IP subnets and long distance for complex network designs and applications.
For those asking if RTS supports TCP/IP, the quick answer is yes. We began our TCP/IP support with our RVON (RTS Voice Over Network) product starting in 2002. With our introduction of OMNEO we have added to our portfolio of IP products and embracing additional industry standard IP based products. RTS Intercoms uses Audinate’s DANTE IP based product as the basis for OMNEO.
Models
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 | ||
ADAM-M |
ODIN |
KP-5032 |
KP-4016 |
PAP-5032 |
DKP-4016 |

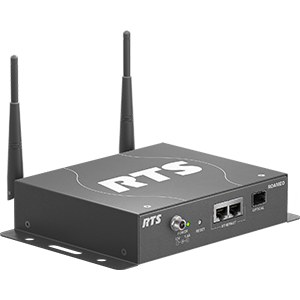

AP-1800 |
DKP-3016 / DKP-3016W |
OEI-2 |
OKI |

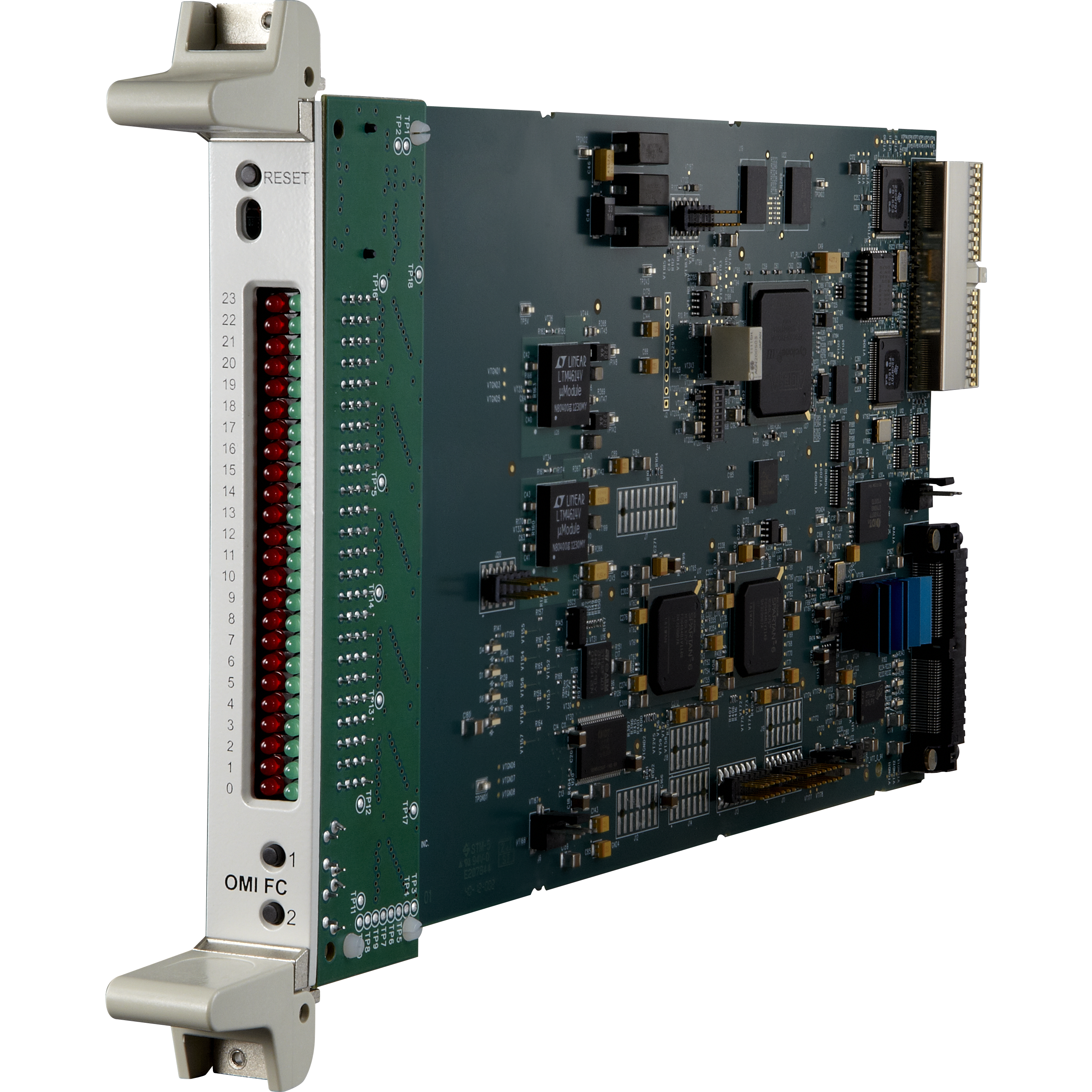

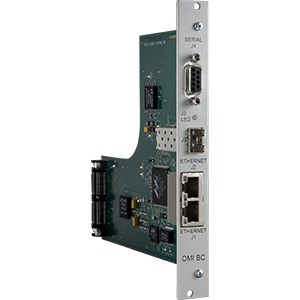

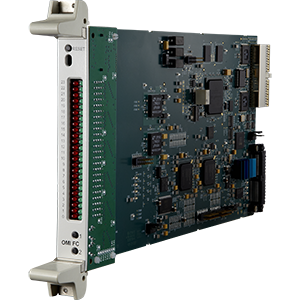

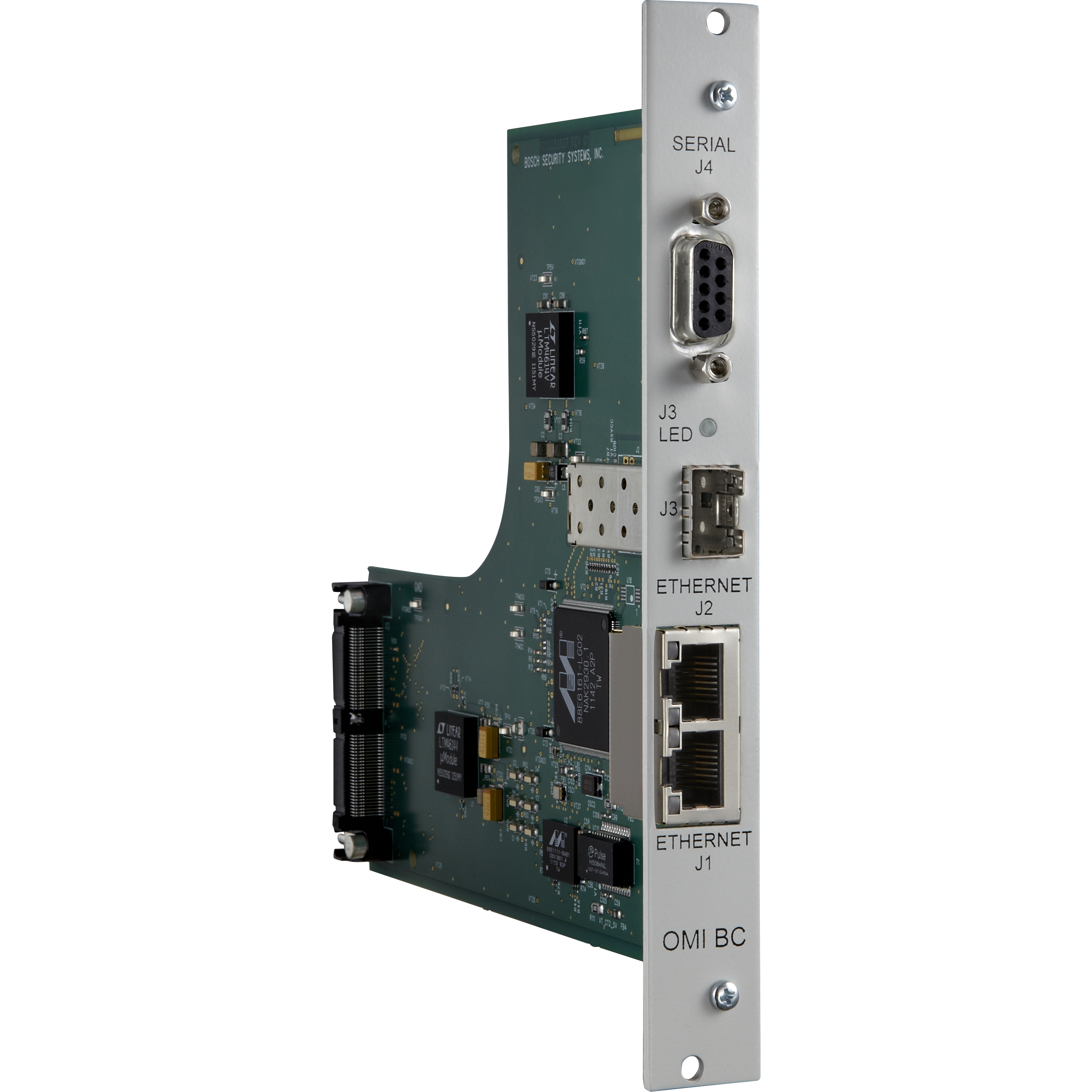

OMI |
OMS |

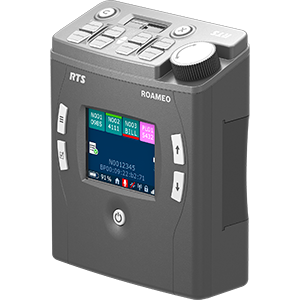

TR-1800 | |
| Max ports, expanded system | 512 (Full OMNEO1) | 1024 2 | |||||||||||
| Port Capacity: Single Frame | 128 | 128 | |||||||||||
| Takes expansion cards | Yes | No | |||||||||||
| LCD Display Active Area | 120.10mm (wide) x 35.86mm (high) | 120.10mm (wide) x 18.77mm (high) | 120.10mm (wide) x 35.86mm (high) | 120.10 mm (wide) x 35.86 mm (high) | 120.10 mm (wide) x 35.86 mm (high) | ||||||||
| LCD Display Dot Resolution | 576 x 172 pixels | 576 x 90 pixels | 576 x 172 pixels | 576 x 172 pixels | 576 x 172 pixels | ||||||||
| Rack Units | 3 | 1 | |||||||||||
| LCD Display Color Resolution | 16-bit (64K)RGB color | 16-bit (64K)RGB color | 16-bit (64K)RGB color | 16-bit (64K)RGB color | 16-bit (64K)RGB color | ||||||||
| Redundant Power Supplies | Yes | Yes | |||||||||||
| LCD Display View Angle | 80 degrees (typical; all directions) | 80 degrees (typical; all directions) | 80 degrees (typical; all directions) | 80 degrees (typical; all directions) | 80 degrees (typical; all directions) | ||||||||
| Redundant Controllers | Yes | No | |||||||||||
| Power Supply | External DC | External DC | External DC | External DC | |||||||||
| Bus Expansion | Yes | Yes (IFL4) | |||||||||||
| AC Input | 90-264VAC, 50/60Hz | 100 VAC – 240 VAC, 60/50 Hz | 100–240VAC 50/60Hz | 100–240VAC 50/60Hz | 100–240 50/60Hz | 100-240 VAC 50/60 Hz | 100-240 VAC 50/60 Hz | ||||||
| Link Method | Single Mode Fiber or Multi Mode Fiber | Single or Multi Mode Fiber | |||||||||||
| Cable Length, Single mode | 40 km (TBX) | 15 km5 (IFL) | |||||||||||
| Output Connections | SPDT 1AMP @ 30VDC | SPDT 1AMP @ 30VDC | SPDT 1AMP @ 30VDC | SPDT 1AMP @ 30VDC | 12-position Terminal Block | ||||||||
| Input Connections | Optically Coupled 5-18 VDC on A+ | Optically Coupled 5-18 VDC on A+ | SFP Fiber Connector | ||||||||||
| Cable Length, Multi mode | 550m (TBX) | 500m (IFL) | |||||||||||
| Front-panel display | No | Yes | |||||||||||
| Connections | 2- RJ-45 Ethernet Connectors, SFP Fiber Connector (LC Type) | Fiber Optic SFP Module with LC Connector, RS232/485 using a DB-9 connector, 2- RJ45 Connectors | |||||||||||
| Typical OMNEO Latency | 1ms | 1ms | |||||||||||
| Display Type | NA | TFT, color, icon-based | 320x240 pixel color LCD | ||||||||||
| OMNEO Frequency Response | 20Hz - 20KHz | 20Hz - 20KHz | 20Hz - 20KHz | 20Hz - 20KHz | |||||||||
| Audio Bits | 24 | 24 | OMNEO | ||||||||||
| OMNEO Audio | Yes | Yes | |||||||||||
| Trunking | Yes | Yes | |||||||||||
| Matrix PC Connection | Ethernet Serial | Ethernet6 | |||||||||||
| Field-upgradeable firmware | Yes | Yes | |||||||||||
| Integrated Party-Line Interface | No | Yes (2) | |||||||||||
| General Purpose Outputs | External GPIO-16 | 4 | |||||||||||
| General Purpose Inputs | External GPIO-16 | 4 | |||||||||||
| Crosstalk | < -85dB between adjacent channels | < 80 | |||||||||||
| Frequency Band of Operation | BP: 1880 – 1900 MHz (Europe), 1920-1930 MHz (North America) AP: 1880 – 1900 (Europe) MHz, 1920 – 1930 MHz (North America) | ||||||||||||
| Power Requirements | 5VDC, 2000mA | ||||||||||||
| Wireless Technology | DECT | ||||||||||||
| Operating Temperature | 0°C to 50°C°C | 0° C to 45° C°C | 0° C to 55°C | 0° C to 55°C | 0°C to 55°C | 0°C to 55°C | 0 to 55°C | 0° to 50°C | |||||
| Type | External DC | ||||||||||||
| Analog Output Level Maximum | 20 | ||||||||||||
| Non-Destructive Download | Yes | ||||||||||||
| Max BPs/system | 40 | ||||||||||||
| Depth (Shipping) | 194 | 144 | |||||||||||
| Input Impedance | 22KΩ | ||||||||||||
| User Interface | Icons plus text | ||||||||||||
| Weight (Shipping) | 0.86 | 0.68 | |||||||||||
| IP-rating | Indoor only | IP-52 | |||||||||||
| Function | Program Assign Panel | ||||||||||||
| Analog Output Level Impedance | 60 | ||||||||||||
| Impedance | 600 | ||||||||||||
| Remote Configuration | Yes | ||||||||||||
| Languages | 10 | ||||||||||||
| Roaming | Full, automatic | ||||||||||||
| THD+Noise | at 21dBu, 1kHz (unweighted), 0.01% | <0.1 () | |||||||||||
| Relays | External GPIO-16 | ||||||||||||
| Menu keys | 4 | ||||||||||||
| Max BPs/AP | 5 (G.722), 10 (G.726) | ||||||||||||
| 48kHz/24-bit per channel bandwidth | 2.59 | ||||||||||||
| Ethernet Port | Yes | Yes | |||||||||||
| Mounting | Surface or pole (w. clamp) | ||||||||||||
| Certification | CE Compliant, UL Certified | CE Compliance: EMC, EN55022 Class A, VCCI Class A, ICES-003, FCC Part 15 Subpart B Class A, AS/NZS CISPR22 Class A,Korean KN 22, EN 55024, Korean KN 61000-4, BSMI Class B; Safety: UL 60950-4, EN60950-1, CB Report, PSE | CE Compliance EMC EN55022 Class A VCCI Class A ICES-003 FCC Part 15 Subpart B Class A AS/NZS CISPR22 Class A Korean KN 22 EN 55024 Korean KN 61000-4 BSMI Class B | CE Compliance EMC EN55022 Class A VCCI Class A ICES-003 FCC Part 15 Subpart B Class A AS/NZS CISPR22 Class A Korean KN 22 EN 55024 Korean KN 61000-4 BSMI Class B | |||||||||
| Analog to OMI latency | 20 | ||||||||||||
| User Capacity | 5 Beltpacks (G.722) or 10 Beltpacks (G.726) per Access Point – Max 40 Beltpacks per System | ||||||||||||
| Storage Temperature | -40° C to 70°°C | -20° C to 70° C°C | -20° C to 70°C | -20°C to 70°C | -20°C to 70°C | -20°C to 70°C | -20 to 70°C | -40° to 70°C | |||||
| OMI to Analog latency | 20 | ||||||||||||
| Battery Type | 17 hrs | ||||||||||||
| Frequency Response | 15 Hz to 20 KHz +/- 1dB | 300 - 7000 Hz (G.722), 300 - 3500 Hz (G.726) | 20Hz to 20kHz () | within ±1dB from 20Hz - 20kHz | 300 - 7000 Hz (G.722), 300 - 3500 Hz (G.726) | ||||||||
| Antenna | Detachable, adjustable | Dual, internal | |||||||||||
| Size | |||||||||||||
| Power Consumption | Nominal: 13W, Maximum: 18W, Maximum Volt Amp: 48VA | Nominal: 12W, Maximum: 15W, Maximum Volt Amp: 48VA | Nominal: 12W, Maximum: 15W, Maximum Volt Amp: 48VA | Nominal: 12W, Maximum: 15W, Maximum Volt Amp: 48VA | KP 12 CLD/KP 32 CLD without Fiber: 5 W, KP 12 CLD/KP 32 CLD with Fiber: 5.75 W, KP-32 Classic without Fiber: 5.5 W, KP-32 Classic with Fiber: 6.25 W | 14.9W @5V(Front and Back combined) | |||||||
| TDM Bus Signal Format | |||||||||||||
| Power | 6.5W | ||||||||||||
| Audio Levels | +8dBu Nominal, +20dBu Max | ||||||||||||
| Signal-to-Noise Ratio | |||||||||||||
| RF Frequency Range | 1880-1900 (EU), 1920-1930 (NA) | 1880-1900 (EU), 1920-1930 (NA) | |||||||||||
| Total Harmonic Distortion+Noise | < @8dB, better than 0.01 | ||||||||||||
| VOX on Input | Yes | ||||||||||||
| AES Audio | No | ||||||||||||
| RF Standard | DECT | DECT | |||||||||||
| Intuitive User Interface | Yes | ||||||||||||
| RF range, typical | 50-75 m indoor, 150-200 m outdoor | 50-75 m indoor, 150-200 m outdoor | |||||||||||
| Voice Codecs | G.722 (wideband) / G.726 (narrowband) | G.722 (wideband) / G.726 (narrowband) | |||||||||||
| Voice latency (ms) | Approx 40 ms BP to BP; 30 ms BP to matrix and matrix to BP | Approx 40 ms BP to BP; 30 ms BP | |||||||||||
| Trunk Port | |||||||||||||
| Channels | 64 | ||||||||||||
| Width (Shipping) | 287 | 244 | |||||||||||
| Battery Life | 17 hours | ||||||||||||
| Height (Shipping) | 99 | 99 | |||||||||||
| Storage Humidity | 95 | <95 | |||||||||||
| Headsets | 5-pin female XLR | ||||||||||||
| Keys | 4x2 + reply and clear | ||||||||||||
| Audio Frequency Response | 50 Hz to 19 KHz | ||||||||||||
| Max APs/System | 10 | ||||||||||||
| Call Waiting Window | Monochrome | ||||||||||||
| Regulatory Approval | UL, CSA, CE, VDE, FCC, PSE, REACH, RoHS, WEEE, CCC, KC, ACMA C-Tick, China RoHS, and IECEE CB Scheme | ||||||||||||
| Characteristics | 3dBi gain, omni-directional | ||||||||||||
| Voltage | 12 V DC, external | ||||||||||||
| Analog Input Level Nominal | 8 | ||||||||||||
| Operating Humidity | 95 | ||||||||||||
| Analog Input Level Maximum | 20 | ||||||||||||
| Analog Input Level Impedance | 10k | ||||||||||||
| Analog Output Level Nominal | 8 | ||||||||||||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
