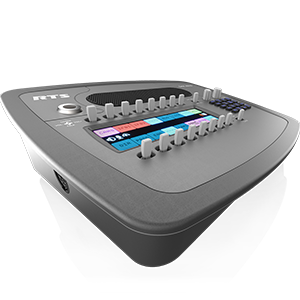

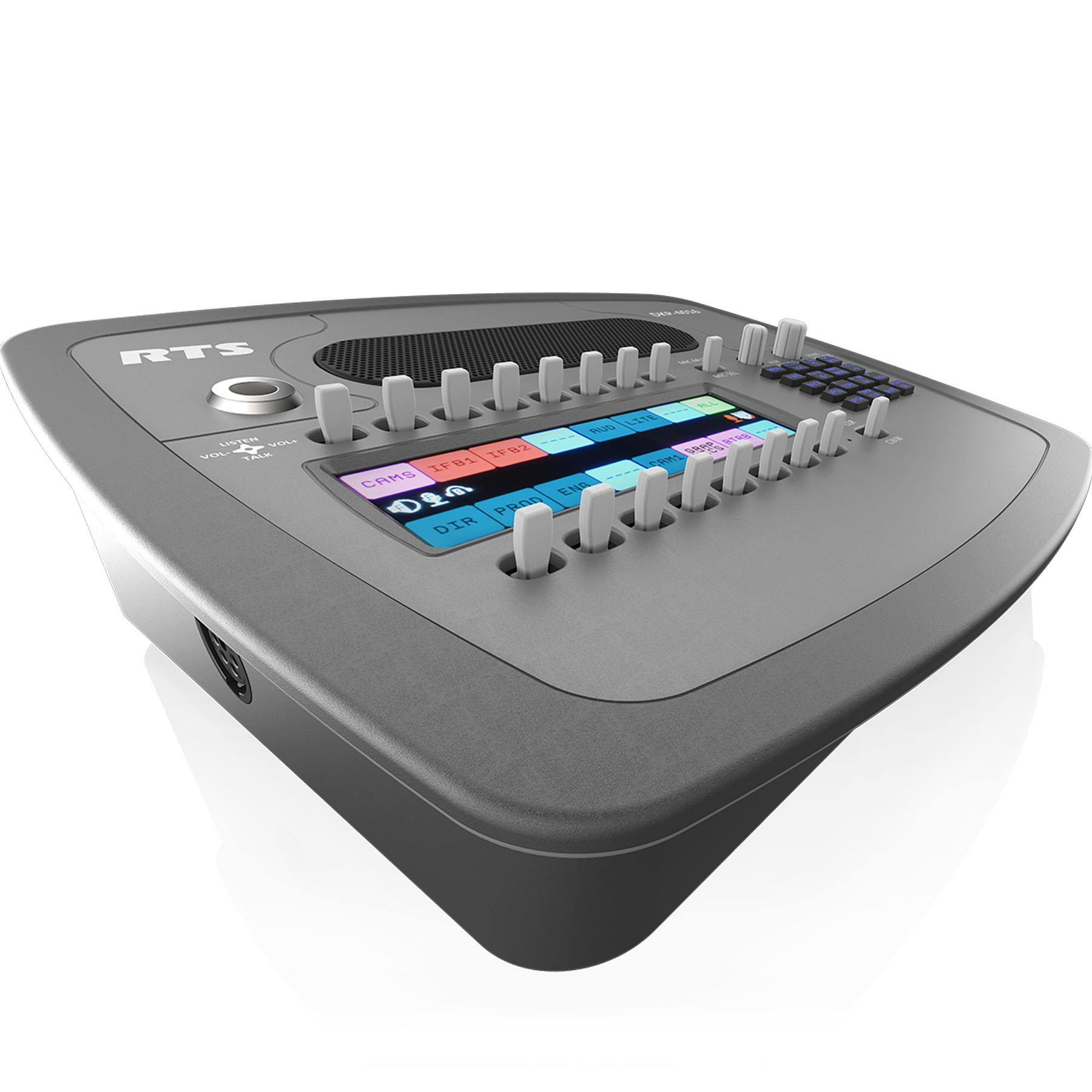

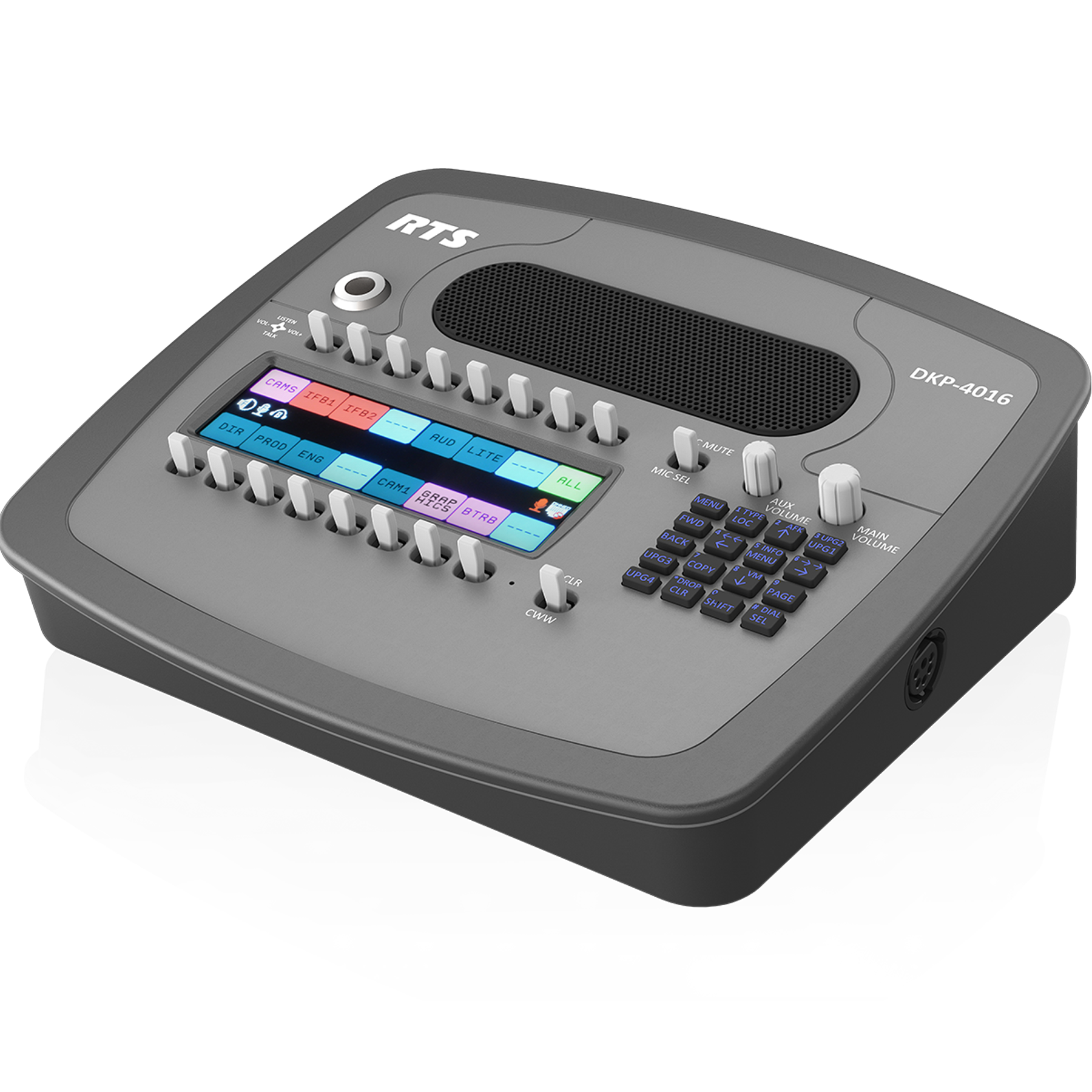

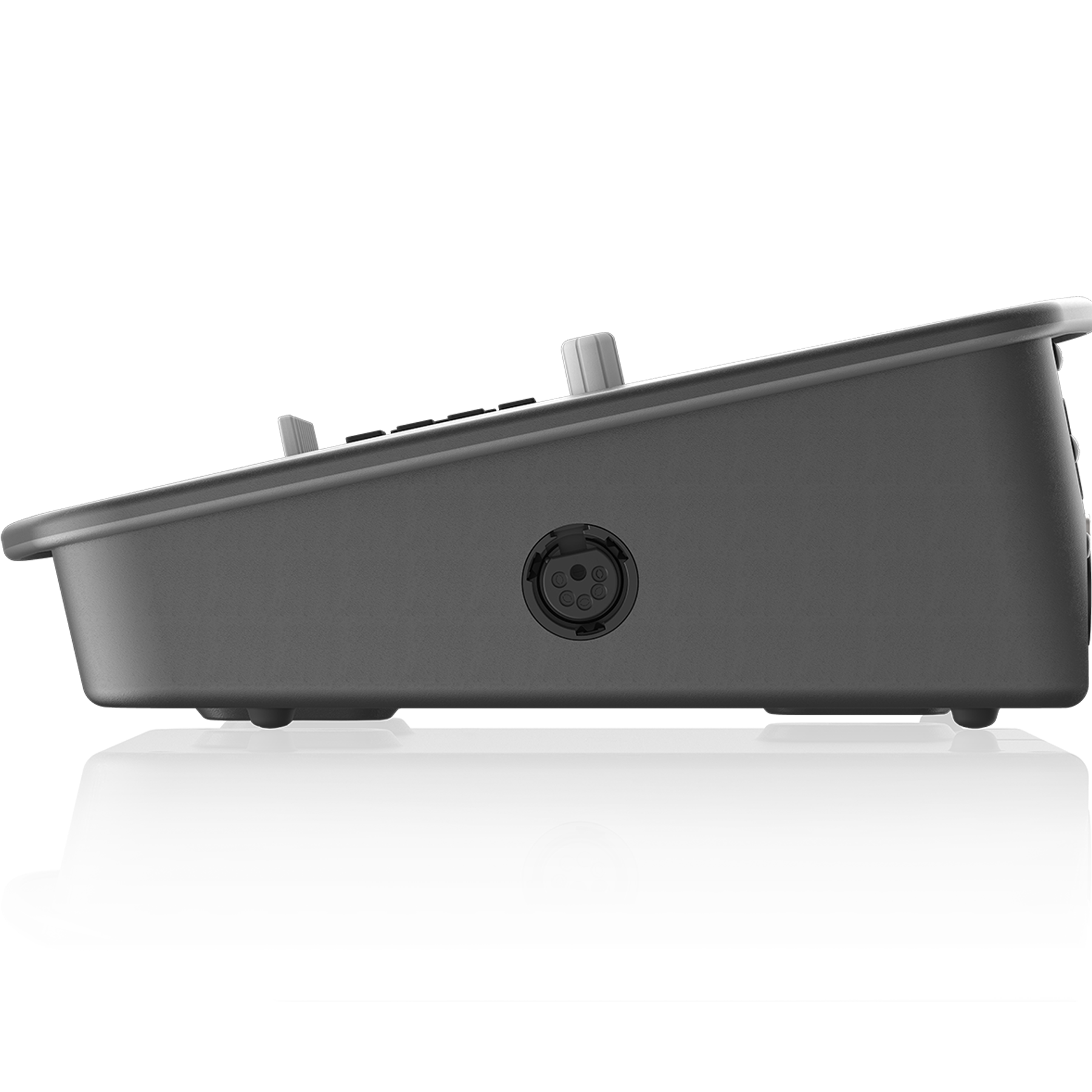

DKP-4016

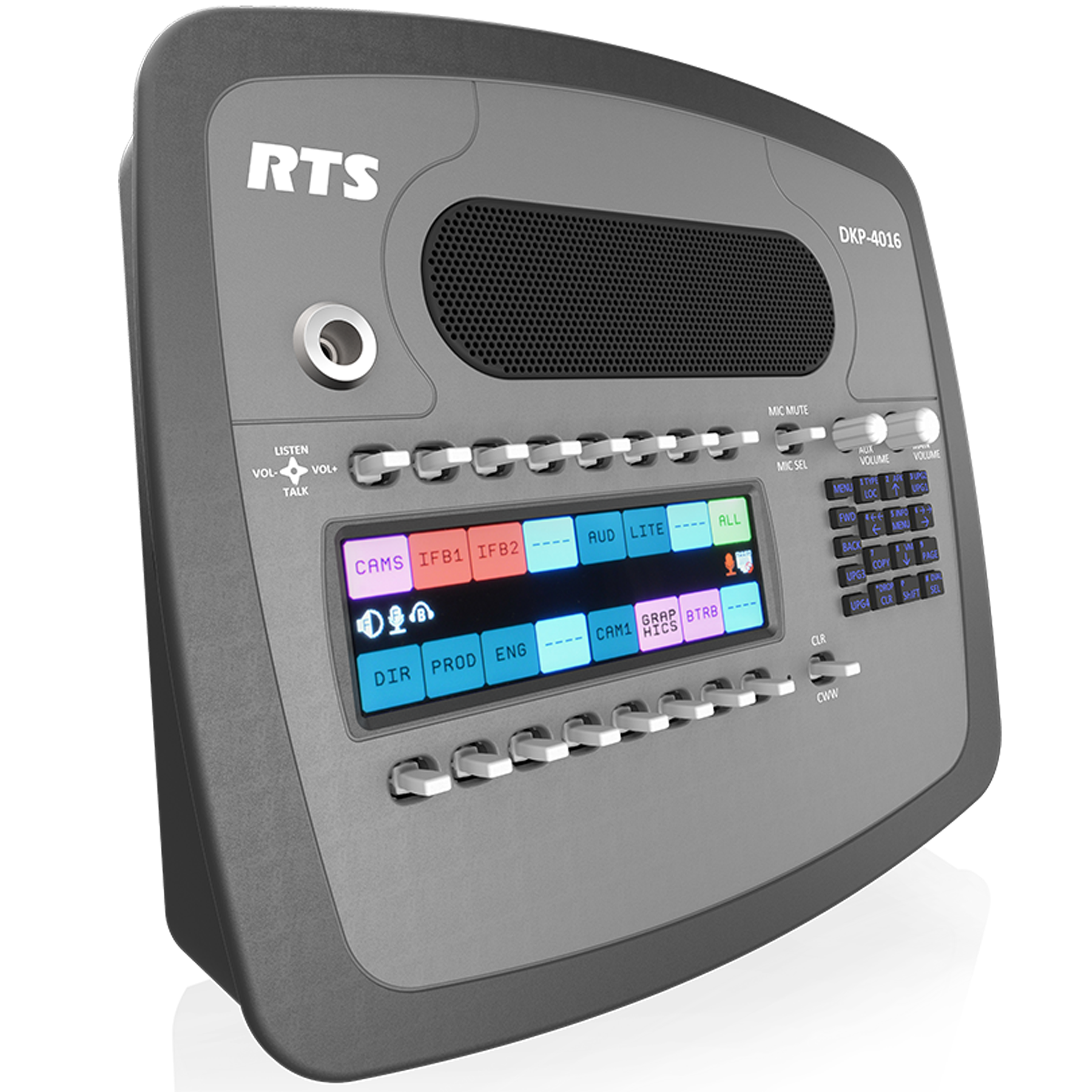

Desktop/wall-mount, 16 keys

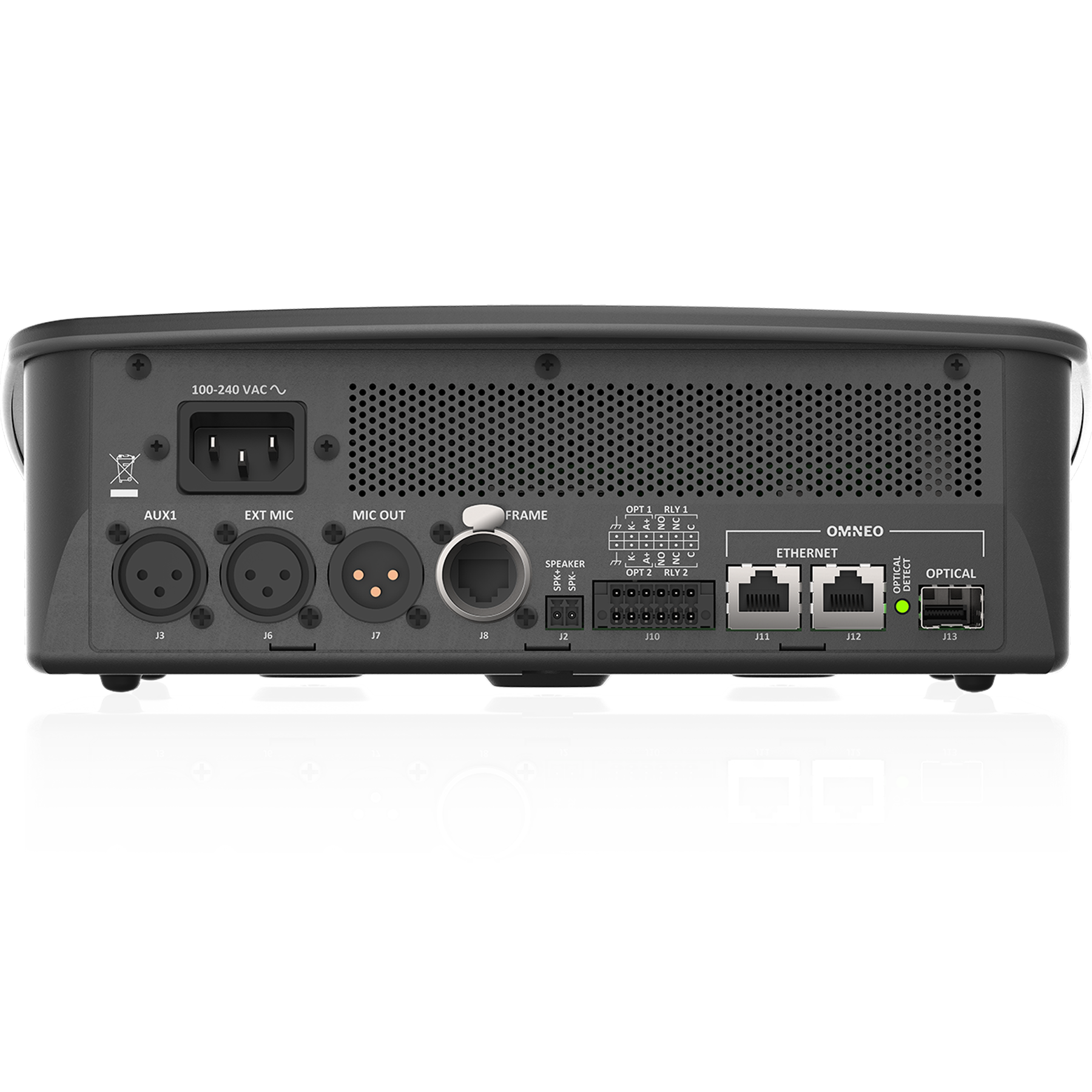

- Backward compatible with older technologies such as analog audio in USOC and 568-B connector formats.
- All previous options hardware connectors (RC, GPI, and Ancillary items) are now standard.

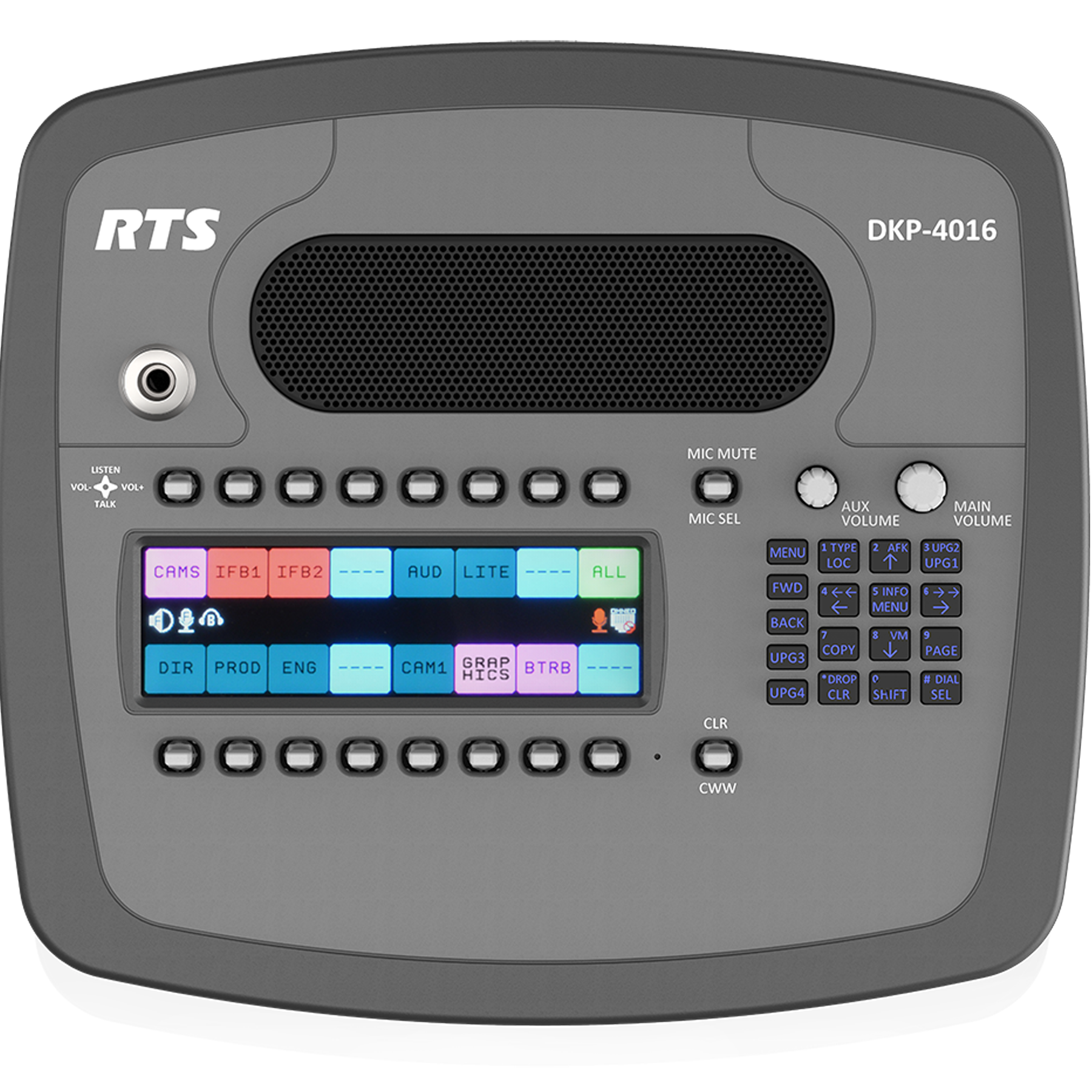

- New wide-angle high-definition display.
- Enhanced navigation menus optimized for ease of use.
Specifications
LCD Display | |
Active Area | 120.10 mm (wide) x 35.86 mm (high) |
Dot Resolution | 576 x 172 pixels |
Color Resolution | 16-bit (64K)RGB color |
View Angle | 80 degrees (typical; all directions) |
Power Supply | |
Type | Internal |
AC Input | 100–240VAC 50/60Hz |
Specifications |
General Purpose Inputs and Outputs | |
Outputs | |
Type (relays) | SPDT |
Contact Rating | 1AMP @ 30VDC |
Inputs | |
Type | Optically Coupled |
Input Voltage | 5-18 VDC on A+ * A+ is internally pulled to 5VDC. Connect K- to to activate. |
Inputs | |
Matrix | |
Type | Balanced |
Typical Input Level | +8dBu |
Typical Input Impedance | >10kΩ |
Maximum Input Level | +20dBu |
Supported Bandwidth | 100Hz to 20KHz |
Aux | |
Type | Balanced |
Typical Input Level | +8dBu |
Typical Input Impedance | >20 k Ω |
Maximum Input Level | >+20 dBu |
Supported Bandwidth | >100 Hz to 20 kHz |
Front Panel Mic | |
Type | Electret |
Typical Input Level | -42dBu |
Typical Input Impedance | 1kΩ |
Maximum Input Level | -25dBu |
Rear Panel Mic | |
Type | Electret |
Typical Input Level | -42dBu |
Typical Input Impedance | 1kΩ |
Maximum Input Level | -25dBu |
Left and Right Headset Mic - Electret | |
Typical Input Level | -42dBu |
Typical Input Impedance | 1kΩ |
Maximum Input Level | -25dBu |
Front and Rear Headset Mic - Dynamic | |
Typical Input Level | -50dBu |
Typical Input Impedance | 600Ω |
Maximum Input Level | -25dBu |
Outputs | |
Matrix | |
Type | Balanced |
Typical Output Level | +8dBu |
THD+N% | <0.20% |
Typical Output Impedance | 600Ω |
Maximum Output Level | +20dBu |
Frequency Response | 100Hz to 20KHz |
MIC/LINE Out | |
Type | Balanced |
Typical Output Level | +8dBu |
THD+N% | <0.20% |
Typical Output Impedance | 600Ω |
Maximum Output Level | +20dBu |
Frequency Response | 100Hz to 20KHz |
Headset - Front, Rear, Left, Right | |
Maximum | |
Output Power | 125mW for 32Ω load |
Earphone Impedance | 16Ω and above |
THD+N% | <0.20% |
Frequency Response | 100Hz to 20KHz |
Speaker - Rear | |
Maximum Output Power | 5W for 8Ω load |
Speaker Impedance | 4Ω and 8Ω |
THD+N% | <0.20% |
Frequency Response | 20Hz to 20kHz |
Digital | |
OMNEO Channels | |
Typical OMNEO Latency | 1ms |
Frequency Response | 20Hz - 20KHz |
Environmental | |
Dimensions | 3.60 in. H x 10.63 in. W x 9.35 in. D (91.5 mm H x 270.1 mm W x 237.6 mm D) |
Weight | |
Weight | 3.70lb (1.68kg) |
Temperature | |
Operating | 32°F to 122°F (0°C to 50°C) |
Storage | -4°F to 158°F (-20°C to 70°C) |
Power Consumption | |
Nominal | 22 Watts |
Maximum | 39 Watts |
Maximum Volt Amp | 63 VA |
Certification | CE Compliance UL Certified |
