BP-5000

Dual-channel portable universal beltpack headset station for mobile users

  • Auto-wiring scheme detection –


  • Once plugged in, the beltpacks automatically recognize the wiring scheme and configure the unit for either the RTS, Audiocom or Clear-Com format.

  • Intelligent power management –


  • Due to a reduced power consumption up to 40 daisy-chained beltpacks can be powered by only one PS-20 power supply. A current pump circuit constantly monitors the cable length versus the actual current consumption to ensure the beltpacks receive the voltage they need.

  • Enhanced talk button control –


  • Offers the choice between “always on”, “always off” or “switching”. In addition to a blinking incoming call lamp as visual feedback.

  • Remote kill function –


  • Allows any user to send an inaudible “microphone kill signal” which instantly mutes every beltpack mic in the partyline. This feature can be useful when a user inadvertently left the mic open. It is also possible to override the mic-kill function.

  • Voice guidance easy factory default reset –


  • Short voice prompts help the user navigating through the menu options eliminating the need to configure internal jumpers or switches. The devices can be easily reset to factory defaults.

  • Headset connectivity –


  • The unit is available with either 4- or 5-pin XLR headset connectors allowing for a wide range of headset options; both dynamic and electret headset microphones are supported.

Downloads

Name Size Date
App Note Two-wire matrix 654KB Nov 13, 2017
RTS Application Guide 14.92MB Apr 17, 2019
RTS Proper Cleaning Guidelines 91KB Jun 9, 2020
Use Case TV Station USA 478KB Sep 5, 2017
Name Language Size Date
RTS full-line catalog EN 8.56MB Jan 29, 2020
Name Language Size Date
BP-4000 & BP-5000 Technical Data Sheet EN 321KB Dec 5, 2018
Name Language Size Date
RTS_Universal_Beltpack EN 3.47MB Jul 5, 2018

RTS BP-4000

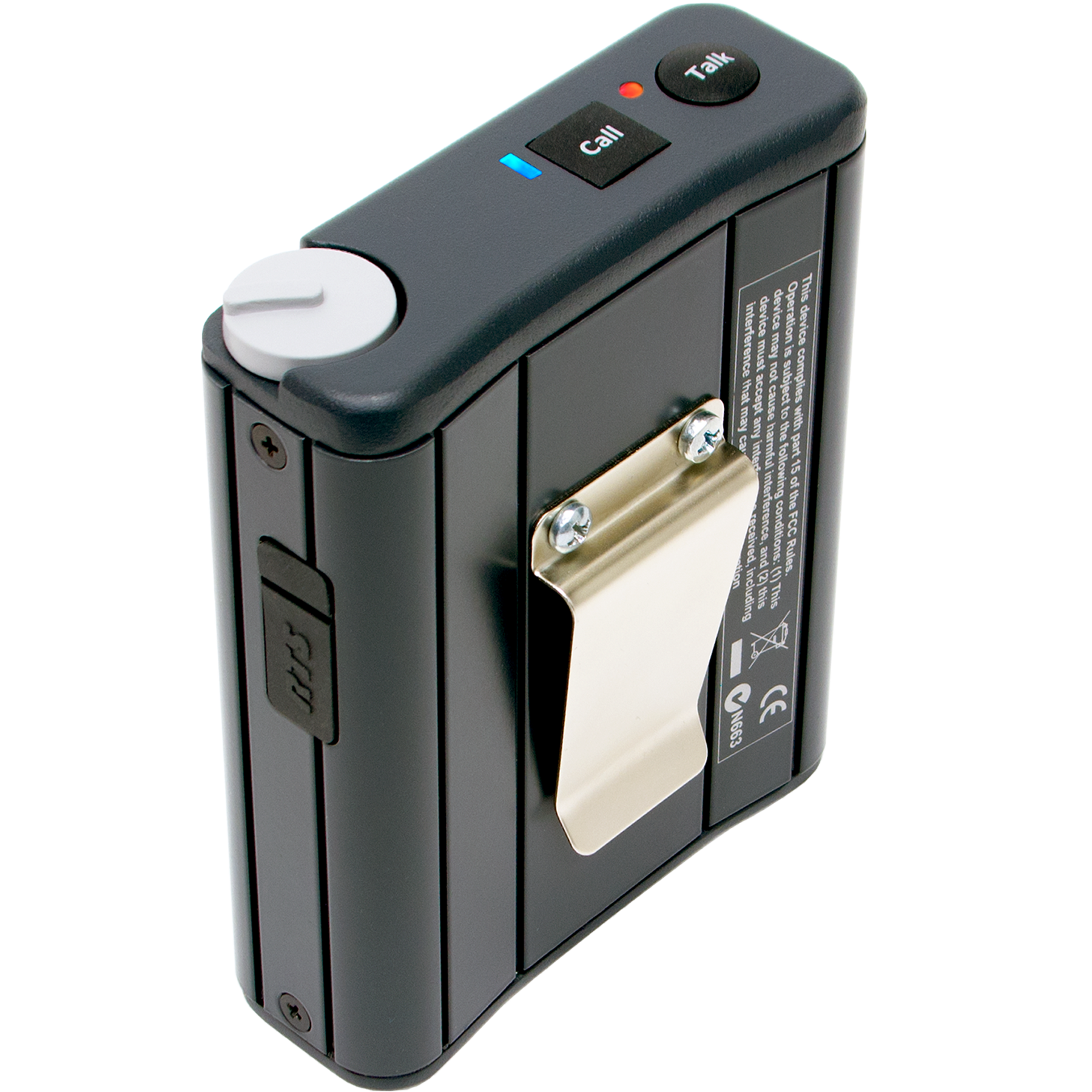

RTS BP-4000 clip

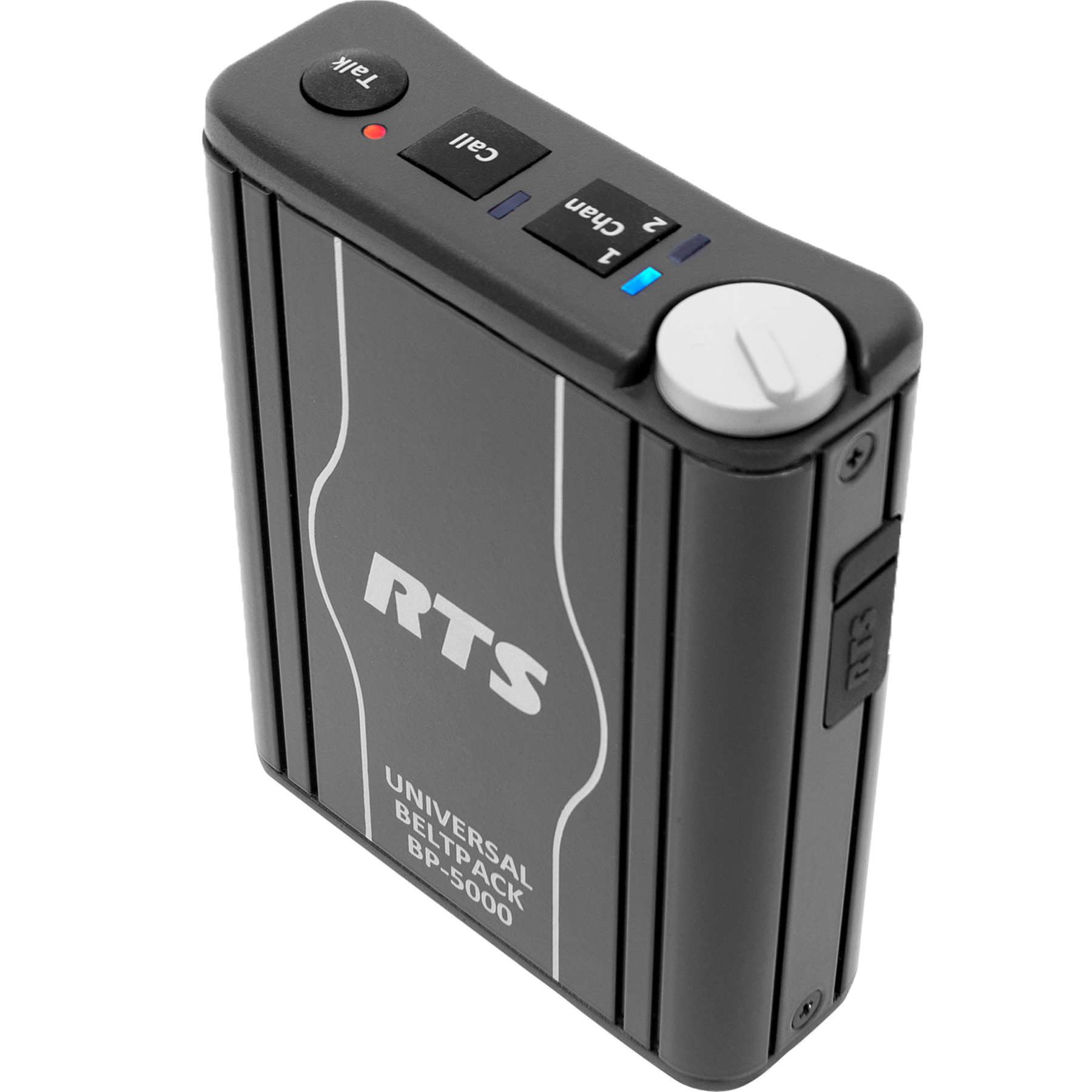

RTS BP-5000

Name Language Size Date
Technical Manual BP-4000 & BP-5000 EN 1.99MB Jan 6, 2018
Name Language Size Date
Warranty conditions for RTS products in North America EN 159KB Sep 14, 2020
General Terms & Conditions of Deliver for Export Business EN 57KB Nov 26, 2014
Allgemeine Lieferbedingungen DE 184KB Nov 30, 2016
