Digital Matrix Systems
Matrix frames and audio interface cards are the core of the digital matrix system. Whether you have thousands of users or just a small team, RTS has a matrix solution to fit your needs.
Models
 |
 |
 | |

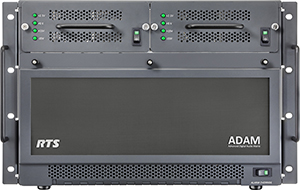

ADAM-2 |

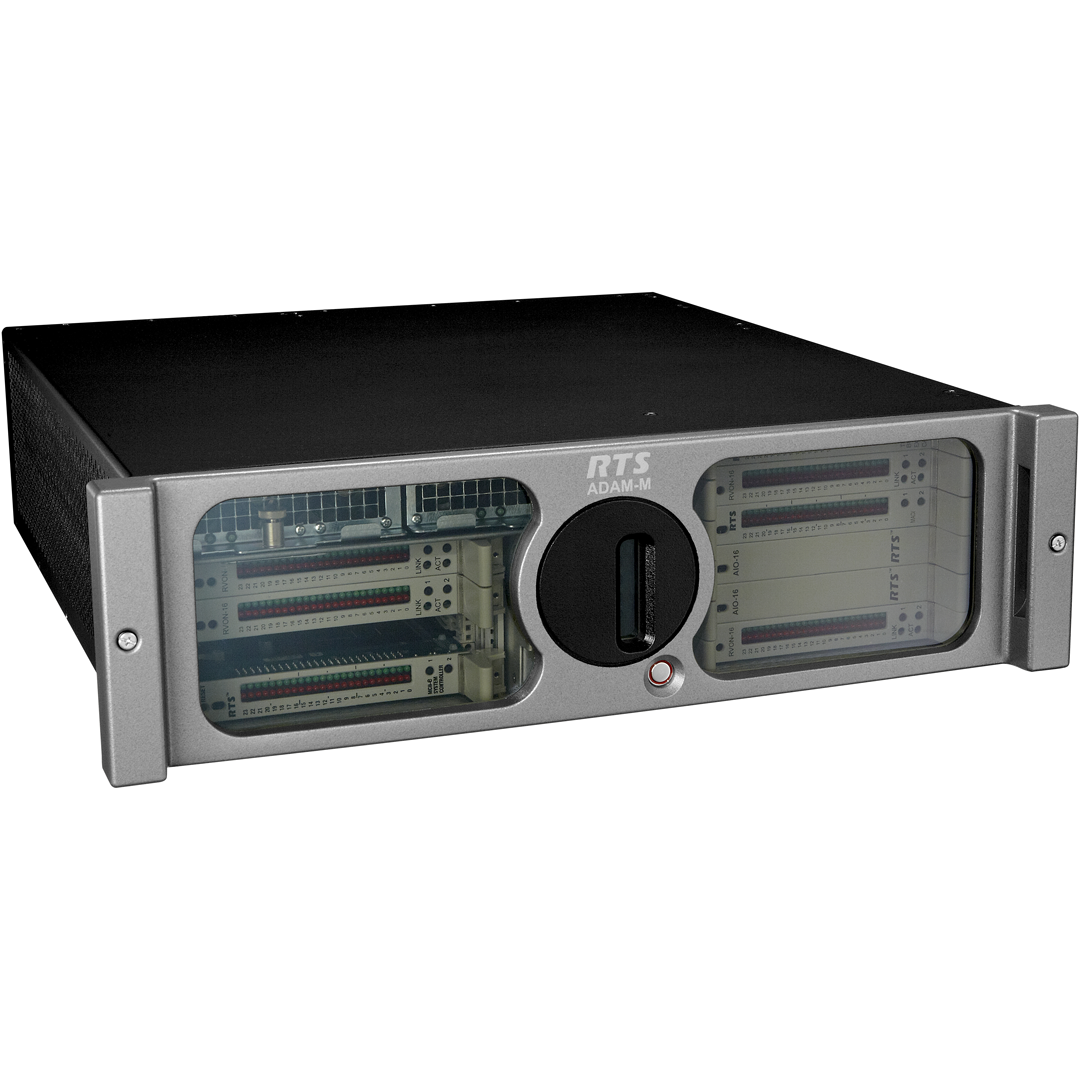

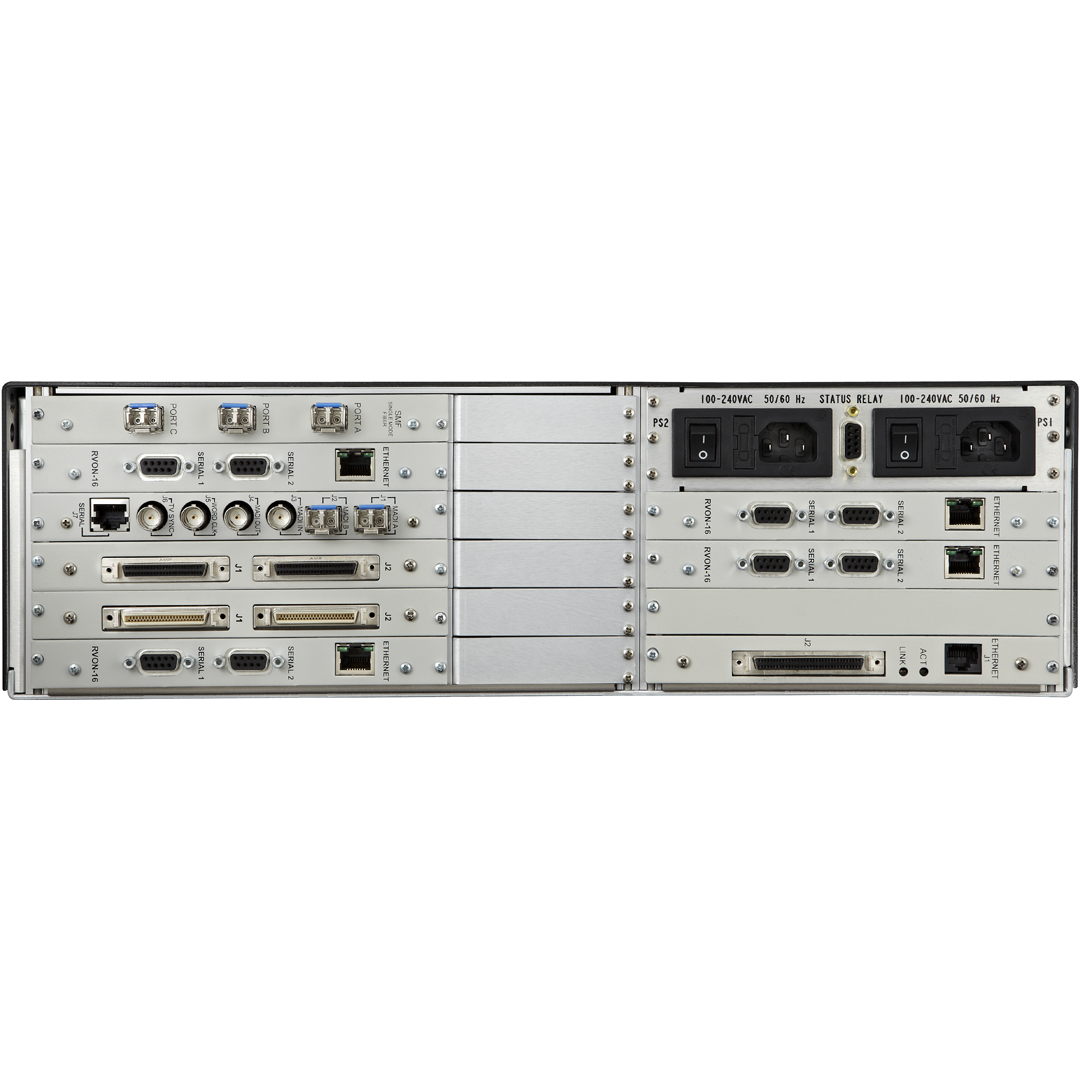

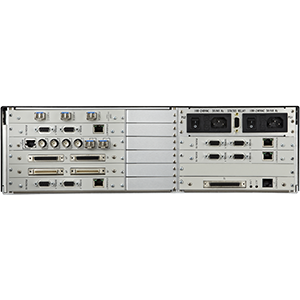

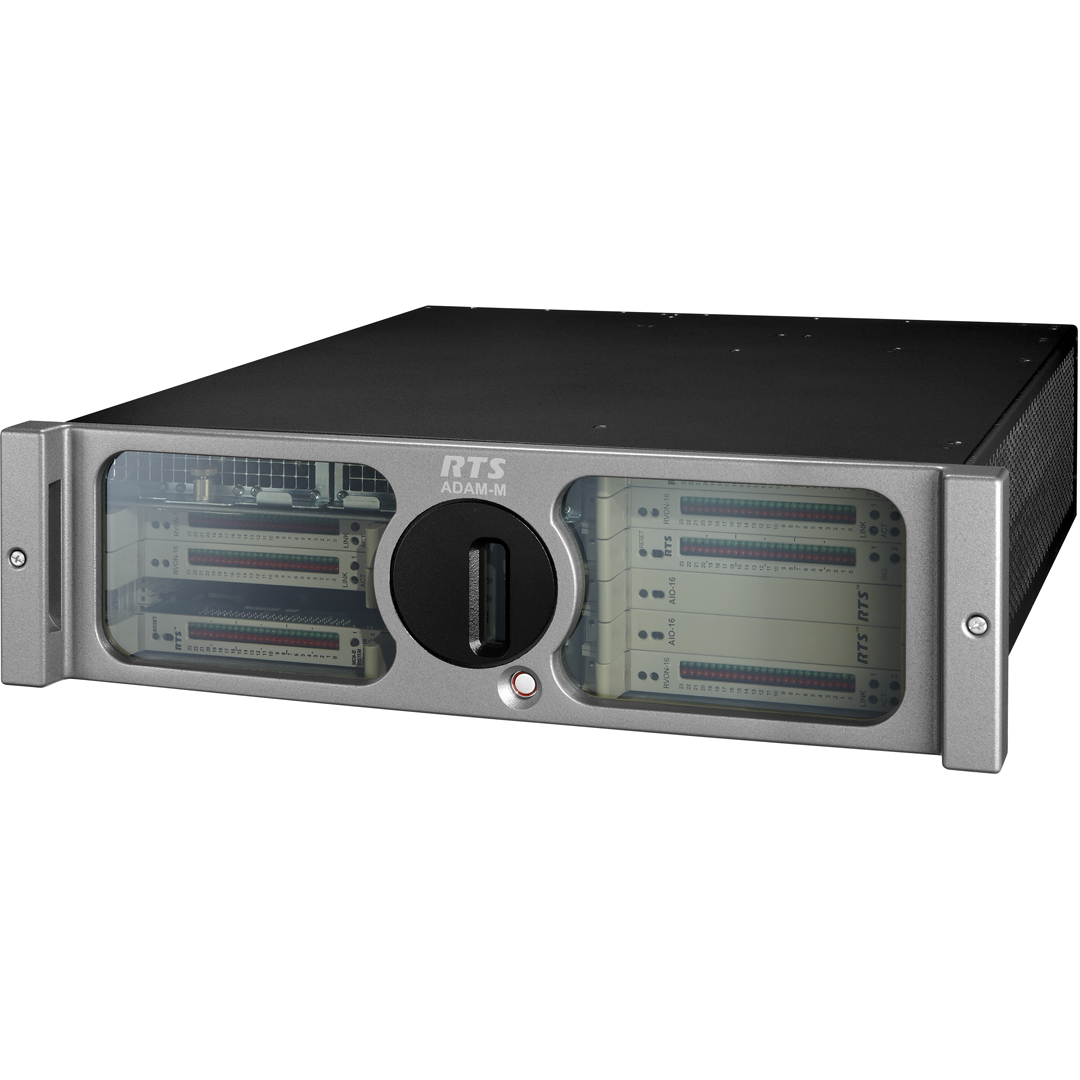

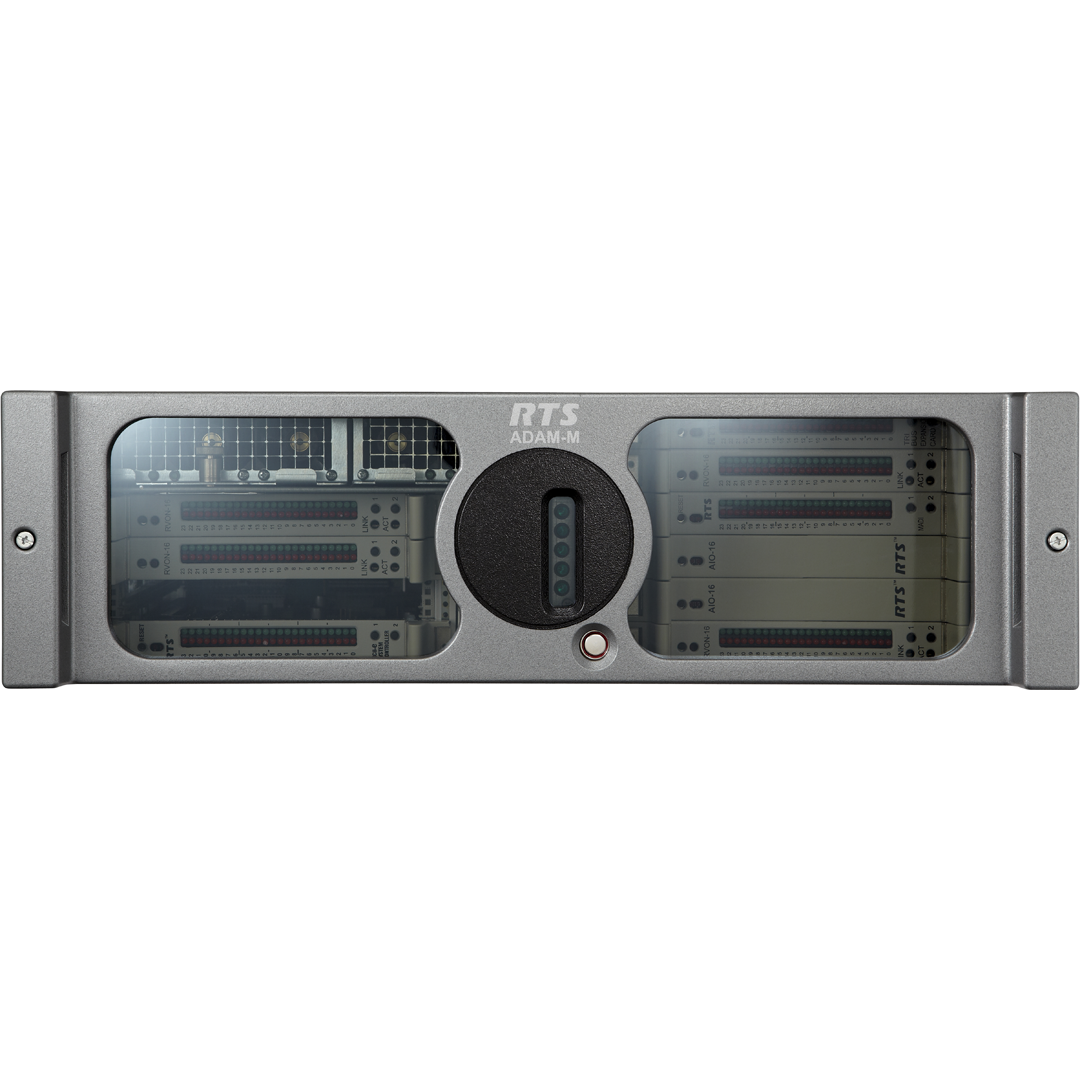

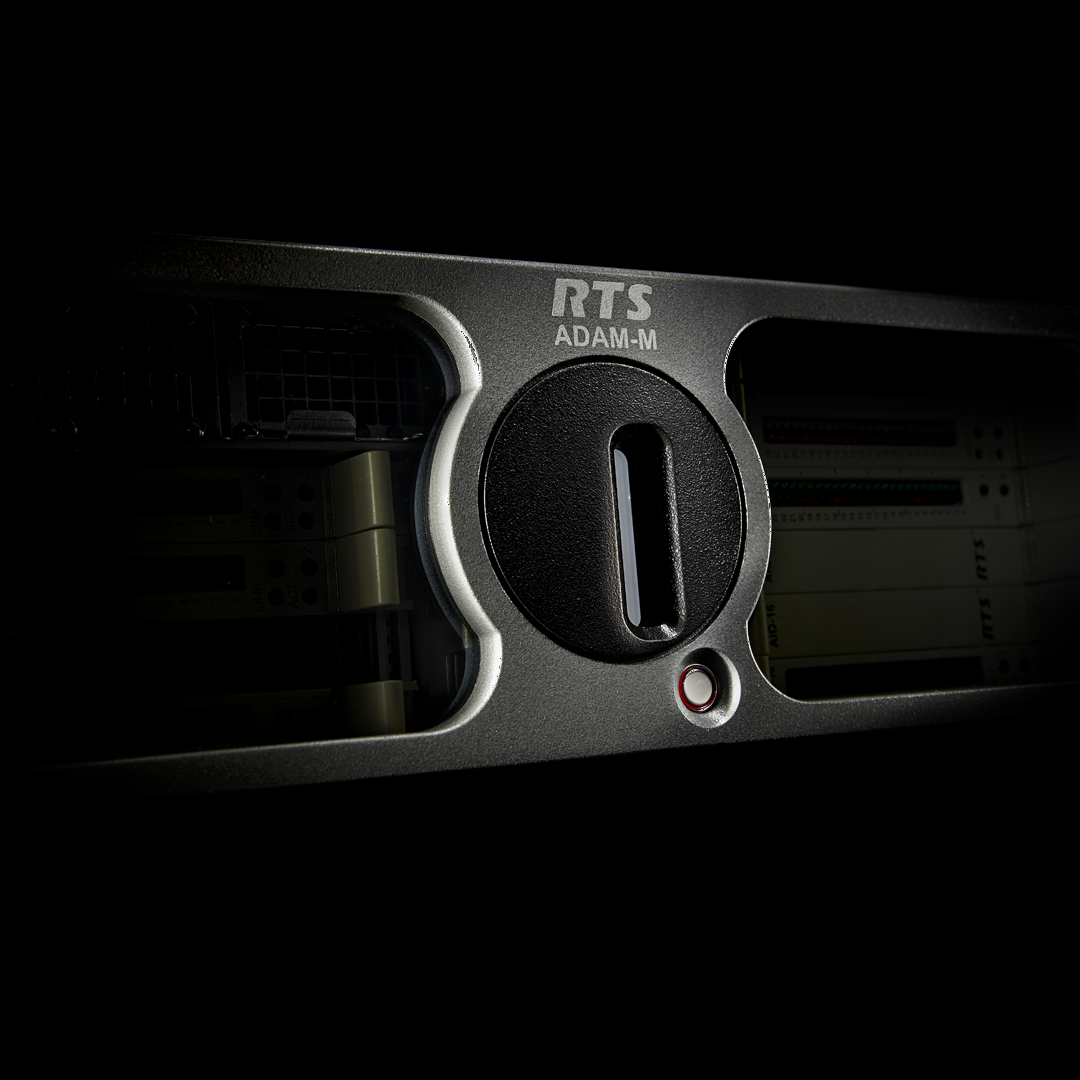

ADAM-M |

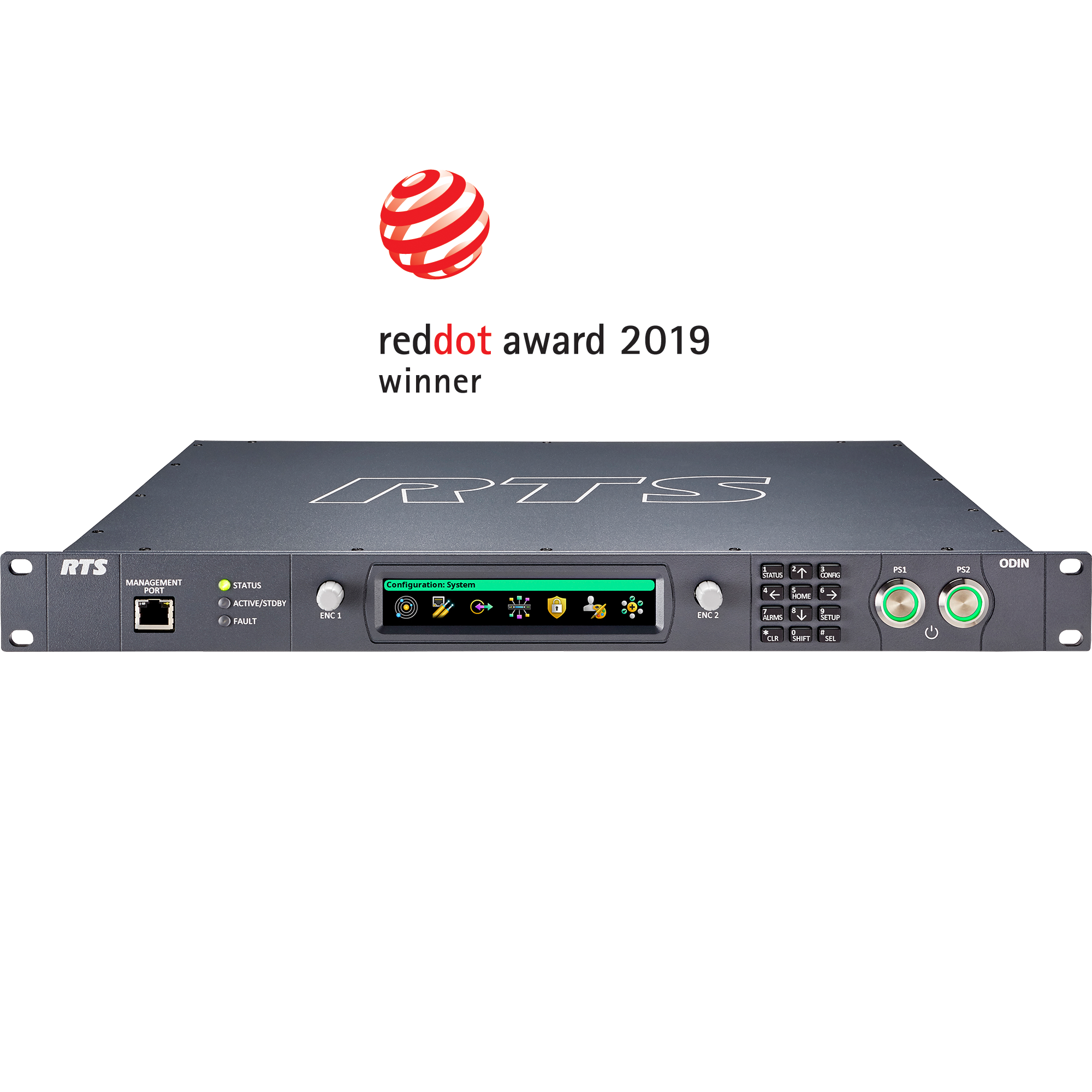

ODIN | |
| Port Capacity: Single Frame | 128 | 128 | |
| Max ports, expanded system | 880 | 512 (Full OMNEO1) | 1024 2 |
| Takes expansion cards | Yes | Yes | No |
| Rack Units | 3 | 1 | |
| Redundant Power Supplies | Yes | Yes | |
| Redundant Controllers | Yes | No | |
| Bus Expansion | Yes | Yes (IFL4) | |
| AC Input | 90-264VAC, 50/60Hz | 100 VAC – 240 VAC, 60/50 Hz | |
| Link Method | Single Mode Fiber or Multi Mode Fiber | Single or Multi Mode Fiber | |
| Cable Length, Single mode | 40 km (TBX) | 15 km5 (IFL) | |
| Cable Length, Multi mode | 550m (TBX) | 500m (IFL) | |
| Front-panel display | No | Yes | |
| Display Type | NA | TFT, color, icon-based | |
| Audio Bits | 24 | 24 | |
| OMNEO Audio | Yes | Yes | |
| Trunking | Yes | Yes | |
| Matrix PC Connection | Ethernet Serial | Ethernet6 | |
| Field-upgradeable firmware | Yes | Yes | |
| Integrated Party-Line Interface | No | Yes (2) | |
| General Purpose Outputs | External GPIO-16 | 4 | |
| General Purpose Inputs | External GPIO-16 | 4 | |
| Crosstalk | < -85dB between adjacent channels | < 80 | |
| Power Requirements | |||
| Operating Temperature | 0°C to 50°C°C | 0° C to 45° C°C | |
| Signal-to-Noise Ratio | |||
| Input Impedance | 22KΩ | ||
| Total Harmonic Distortion+Noise | |||
| Impedance | 600 | ||
| Ethernet Port | Yes | Yes | |
| Trunk Port | |||
| Power Consumption | |||
| Storage Temperature | -40° C to 70°°C | -20° C to 70° C°C | |
| VOX on Input | Yes | ||
| AES Audio | No | ||
| Intuitive User Interface | Yes | ||
| Non-Destructive Download | Yes | ||
| Remote Configuration | Yes | ||
| Relays | External GPIO-16 | ||
| THD+Noise | at 21dBu, 1kHz (unweighted), 0.01% | ||
| Regulatory Approval | UL, CSA, CE, VDE, FCC, PSE, REACH, RoHS, WEEE, CCC, KC, ACMA C-Tick, China RoHS, and IECEE CB Scheme | ||
| Storage Humidity | 95 | ||
| Operating Humidity | 95 | ||
| Frequency Response | 15 Hz to 20 KHz +/- 1dB | ||
| Size | |||
| TDM Bus Signal Format | |||
| Audio Levels | +8dBu Nominal, +20dBu Max | ||
| Learn More | Learn More | Learn More |
