ODIN

Omneo digital intercom

    • A robust digital matrix in a compact 1RU space
    • Built-in OMNEO technology
    • Redundant power supplies
    • Front panel user interface gives easy access to the most common configuration tasks to allow quick modifications to the system
    • Energy-efficient design, uses less than 50W of power

The ODIN Digital Intercom is a highly scalable intercom system in a 1RU (Rack Unit) package. As your capacity needs to evolve, a single ODIN can grow from 16 ports to a maximum of 128 ports. A maximum of eight ODIN units can be interconnected via an optical Inter-Frame Link creating a single matrix with up to 1024 ports. The total number of licensed ports may be allocated freely to any port hardware type supported by the unit.

The front panel has been designed to incorporate a User Interface as an alternative option to AZedit that supports the most common setup and configuration tasks. The AZedit and IPedit software applications have been updated to support ODIN.

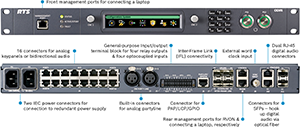

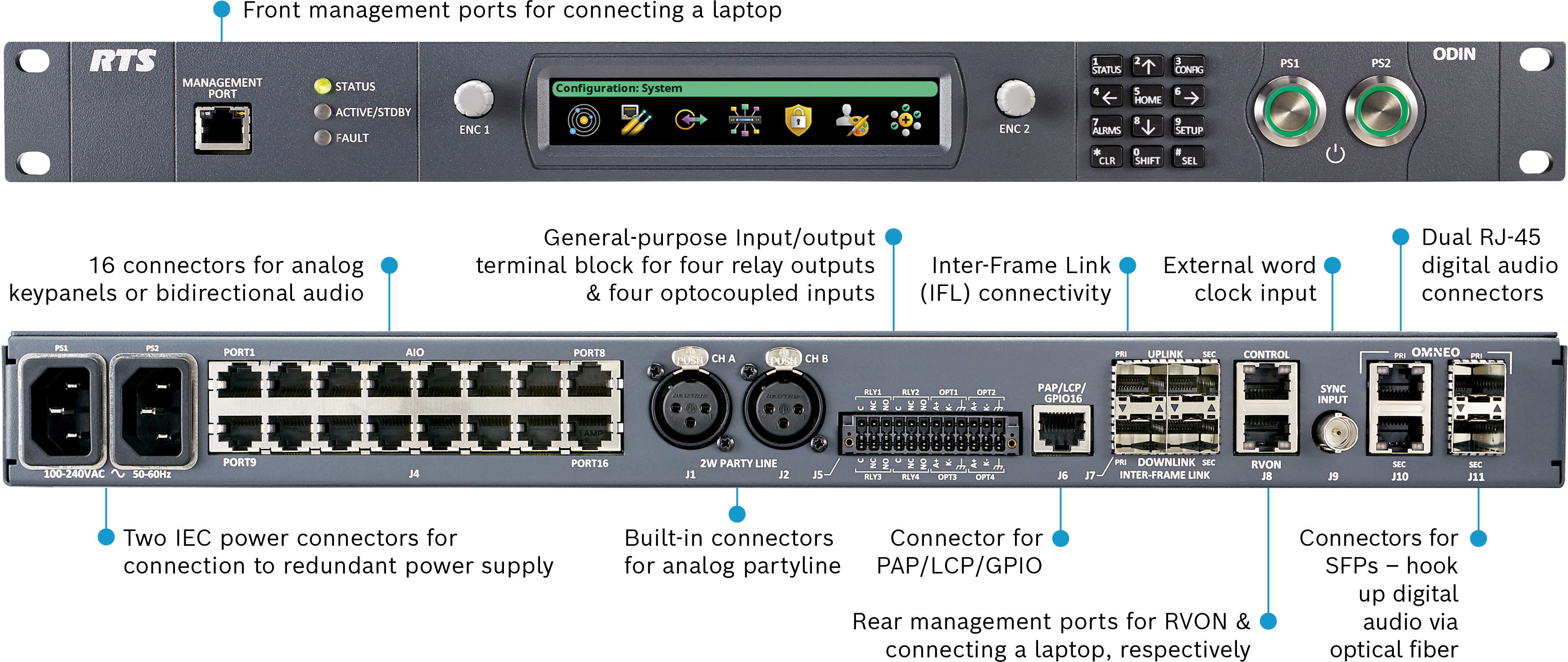

Featuring connectors for AIO, OMNEO and two-wire technology, ODIN supports keypanel technology going forward and, as always, RTS legacy keypanels. OMNEO is standard on RJ-45 connectors or is available using optional Optical Fiber SFP connectors.

Specifications

Power Supply:
TypeLocking IE320 C14 style connector (2 connectors, fully redundant load-sharing power supplies)
AC Input100VAC – 240VAC, 60/50Hz, 0.5A / 0.35A
Maximum Power Consumption47W (based on 120VAC)
Note: Lighted power buttons on front panel control DC voltage feed to internal circuitry; they do not disconnect AC from the internal power supplies. Power cords must be fully removed from unit to safely disengage internal power.

Environmental:
Operating Temperature32°F – 113°F (0°C – 45°C)
Storage Temperature-4°F – 158°F (-20°C – 70°C)
Dimensions:19" w/ rack ears (17.3" w/o rack ears) W x 1.7" H x 14.3" D (including connectors) (482.6 mm w/ rack ears [439 mm w/o rack ears] W x 43.7 mm H x 363.5 mm D [including connectors])
Weight:
ODIN Matrix11.5lbs (5.2kg)
Optional Mounting Bracket0.86lbs (390grams)
AIO 4-Wire Analog:
Connectors16 RJ-45 connectors
Signal FormatDifferential RX/TX audio with differential RS-485 control data
Wiring SchemeBoth 568B & USOC supported
A/D and D/A Resolution24bits
Max Input Level (balanced)+20dBu w/o clipping
Digital Input GainProgrammable (-20dB – +20 dB)
Input Frequency Response+1dB/-3dB from 200Hz – 20kHz
THD+N (8dBu input, unity gain)0.025% non-weighted@1kHz <0.075% non-weighted, 100Hz – 20kHz
Nominal Input Impedance>22kΩ
Nominal Output Level8dBu
Digital Output GainProgrammable (-20dB – 20dB)
Maximum Output Level (balanced) @ 600 Ohms20 dBu w/o clipping
Output Frequency Response+1dB / -3dB from 200Hz – 20kHz
Output Noise Floor<-70dBu
Crosstalk Isolation>80dB
2-Wire Party Line Analog:
Connectortwo 3-pin female XLR connectors
Modes/Port supportedRTS CH1, RTS CH2
Audiocom (1 channel)
Clear-Com (1 channel)
(Connections are DRY. NO dc voltage provided)
4W/2W Echo Return Loss>30dB
Unbalanced Operation (RTS/Clear-Com)
Output Level0 dBu (nominal)
Expected Termination Impedance200 Ω
Noise Contribution<-60 dBu
THD+N (w/ nominal input)<0.5%, 200Hz– 8kHz
Bridging Impedance>10kΩ
CALL Signaling20kHz (RTS mode)
12VDC (Clear-Com mode)
MIC KILL Signaling 24kHz (RTS mode)
Balanced Operation (Audiocom)
Ouput Level0 dBu (nominal)
Expected Termination Impedance300Ω
Noise Contribution<-60 dBu THD+N
(with nominal input)<0.5%, 200Hz – 8kHz
Bridging Impedance>10 kΩ
CALL Signaling20kHz (Audiocom mode)
MIC KILL Signaling24kHz (Audiocom mode)
General Purpose Input/Output Ports:
Relays
TypeSPDT
ContactsCommon (C)
Normally Closed (NC)
Normally Open (NO)
Contact Rating1A @ 30 VDC
Inputs
TypeOptically Coupled
Input Voltage5 VDC – 12 VDC on A+
Note: A+ is internally pulled to +5 VDC. Connect K to chassis ground to activate.
PAP/LCP/GPIO Port:
ConnectorRJ-45
FormatRS-485 control data only (no audio)
Inter-Frame Link Port
(2 UPLINK/2 DOWNLINK):
Note: Supports expansion and connection of up to eight ODIN frames.
Fiber Connector TypeSmall Form
Factor Pluggable (SFP)
MultimodeFinisar FTLF8519P3BNL 500m / 2.125Gbps
Single ModeFinisar FTLF1421P1BTL 15km / 2.67Gbps
Speed2Gbps
LED IndicatorOptical Signal Present
Note: SFF-8472 fiber diagnostics supported
Control Port:
ConnectorRJ-45
FormatIEEE 802.3 compliant
Speed10/100/1000 Mbps
LEDsSpeed and Link/Activity
Sync Input Port:
ConnectorBNC
Termination Impedance75 Ω
Input Frequency Range48 kHz ±25 ppm
Input Level5V TTL
Compatible OMNEO Port (primary and secondary):
Maximum Capacity128 Full-duplex ports
Copper Connector TypeRJ-45
FormatIEEE 802.3 compliant
Copper Ethernet Speed100/1000 Mbps
Fiber Connector TypeSmall Form Factor Pluggable (SFP)
MultimodeFinisar FTLF8519P3BNL 500m / 2.125Gbps
Single ModeFinisar FTLF1421P1BTL 15km / 2.67Gbps
Fiber Speed100/1000Mbps
LED IndicatorOptical Signal Present
Note: SFF-8472 fiber diagnostics supported
TFT Display:
Active Area120.10 mm (wide) x 18.77 mm (high)
Dot Resolution576 x 90 pixels
Color Resolution16-bit (64K) RGB color
View Angle80° (typical, all directions)
Protective LensAnti-Glare / Anti-Reflective
Front Panel Management Port:
ConnectorRJ-45
FormatIEEE 802.3 compliant
Speed10/100/1000 Mbps
LEDsSpeed and Link/Activity
Agency Compliance:Emissions (Class A)
• EN 55032:2012/AC:2013
• KN32 w RRA Public Notification 2016-26 & RRA Announce 2016-79
• AS/NZS CISPR 32:2015
• VCCI-CISPR 32:2016
• ICES-003, Issue 6:2016, Updated April 2017
• FCC Part 15 Subpart B
• Chinese National Standard 13438 (2008) Immunity
• EN55024:2010
• KN32 w RRA Public Notification 2016-26 & RRA Announce 2016-79 Safety
• UL 60950-1 and CAN/CSA C22.2 No.60950-1-07
• UL 62368-1
• Japanese PSE compliance

Downloads

Name Size Date
Compact Intercom Matrix A&E Specifications 59KB Mar 27, 2018
ODIN with ROAMEO 507KB Mar 26, 2018
ODIN: Adding Connections 1.4MB Mar 26, 2018
ODIN: Frames 548KB Mar 26, 2018
RTS Application Guide 14.92MB Apr 17, 2019
RTS Proper Cleaning Guidelines 91KB Jun 9, 2020
RVON for ODIN 550KB Mar 26, 2018
Name Language Size Date
Odin brochure EN 6.66MB Apr 5, 2018
RTS full-line catalog EN 8.56MB Jan 29, 2020
Name Language Size Date
ODIN Technical Data Sheet EN 1.05MB Apr 8, 2019

RTS ODIN FR CV1 WHITETYPE

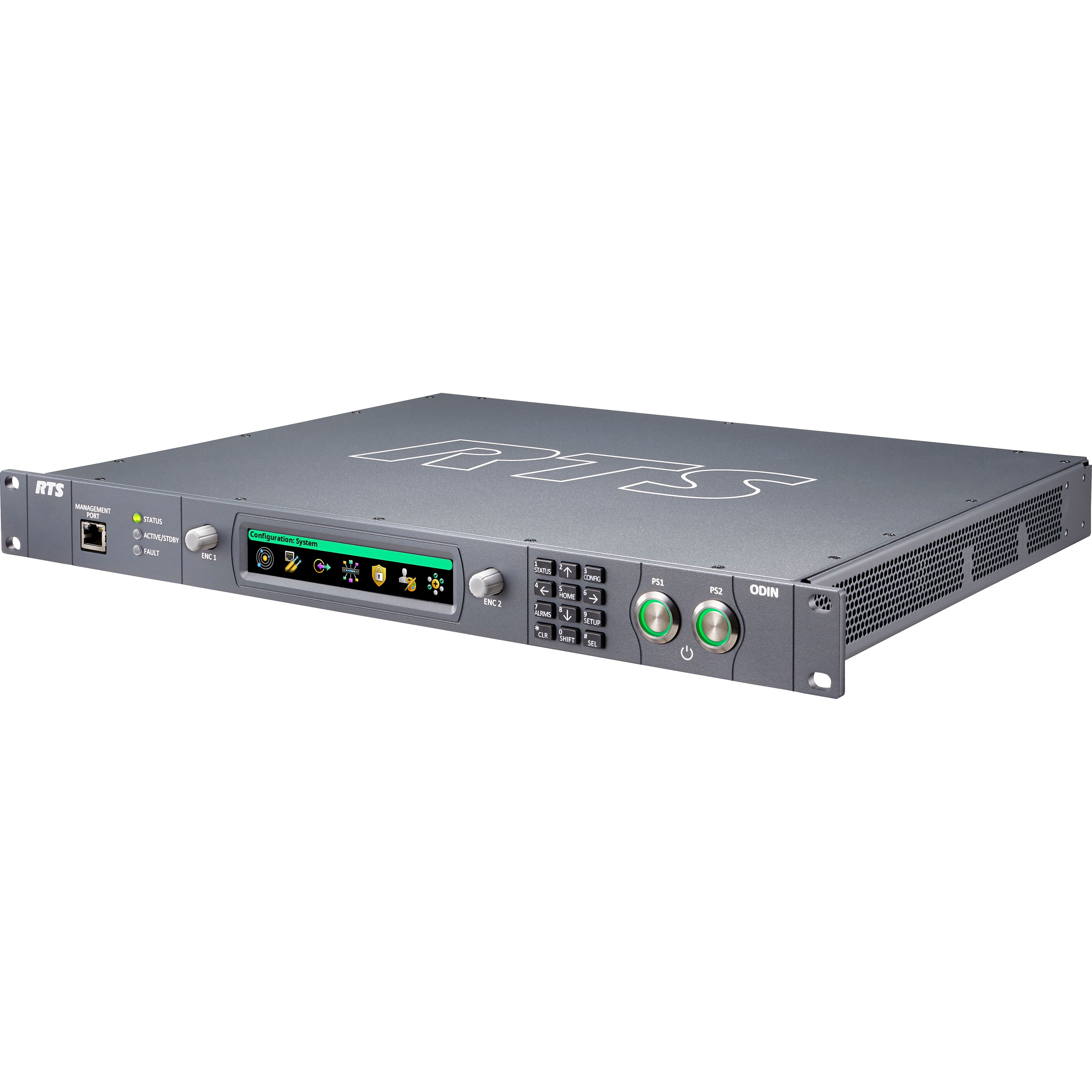

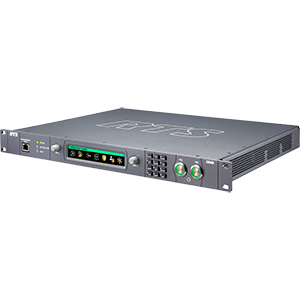

RTS ODIN LE WHITETYPE

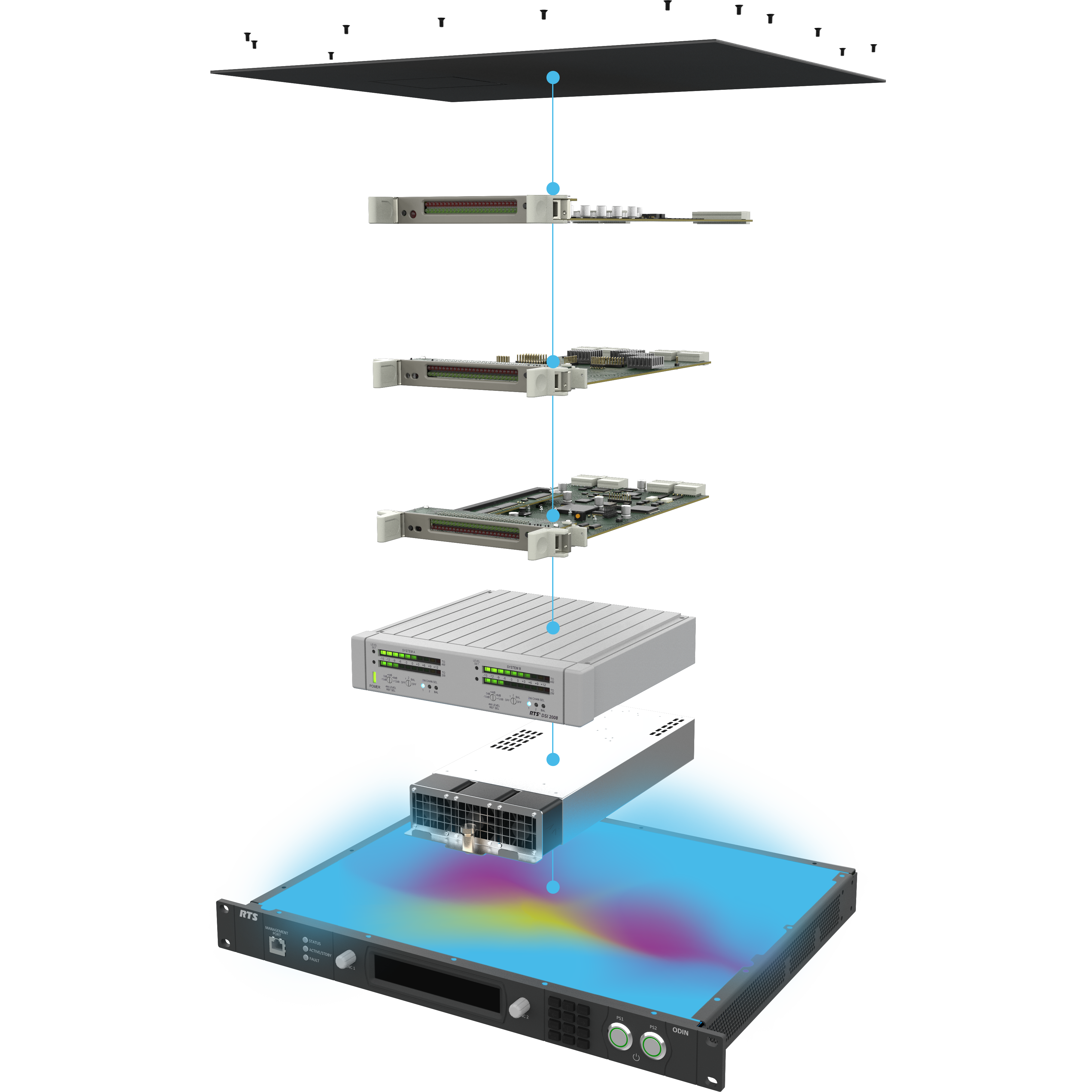

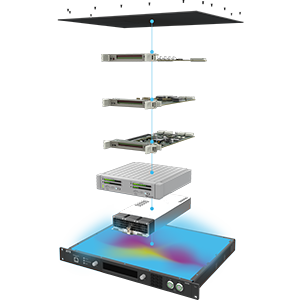

ODIN exploded

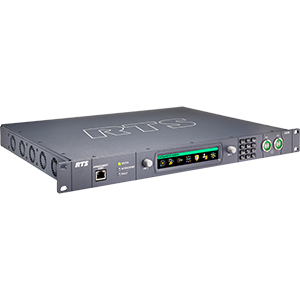

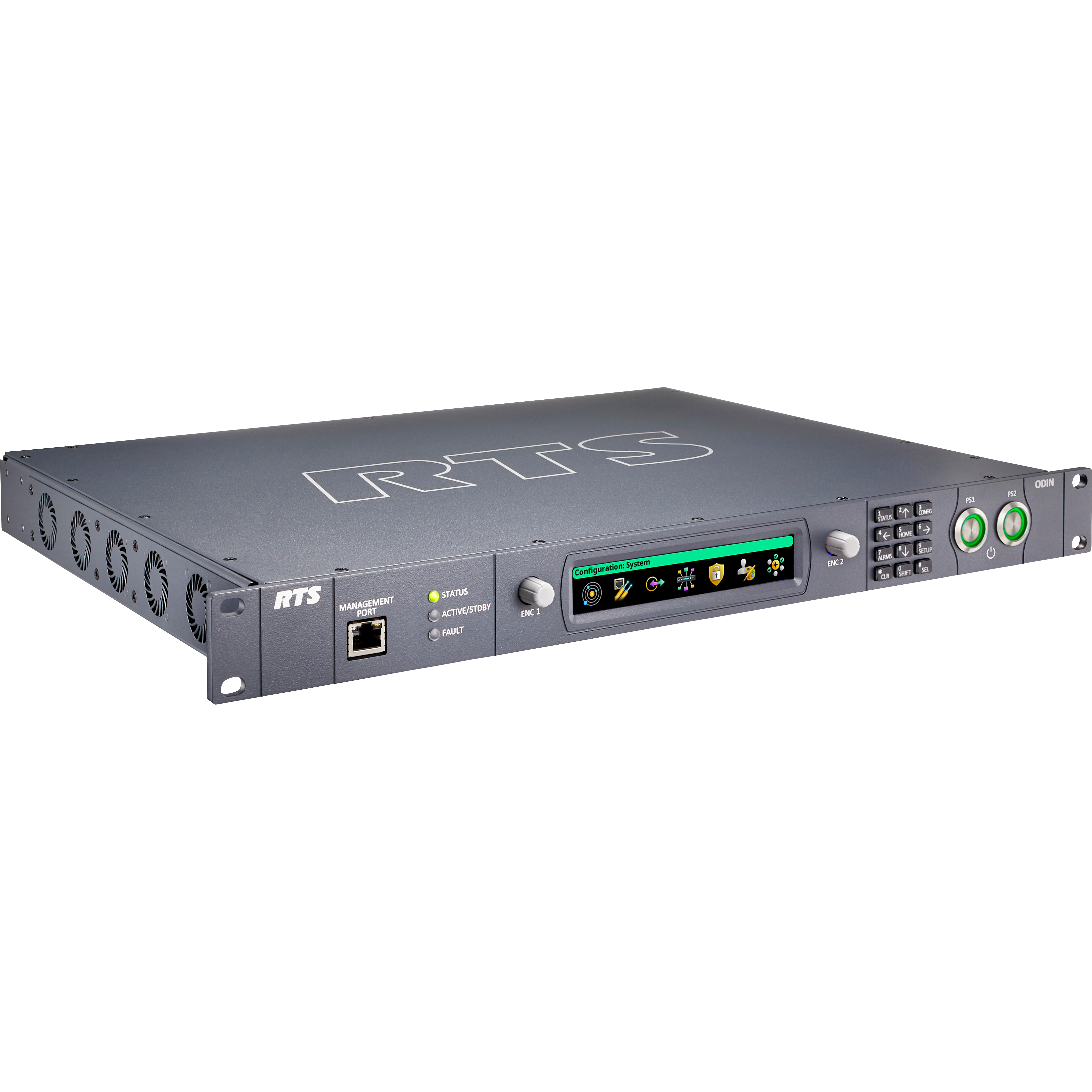

RTS ODIN AN WHITETYPE

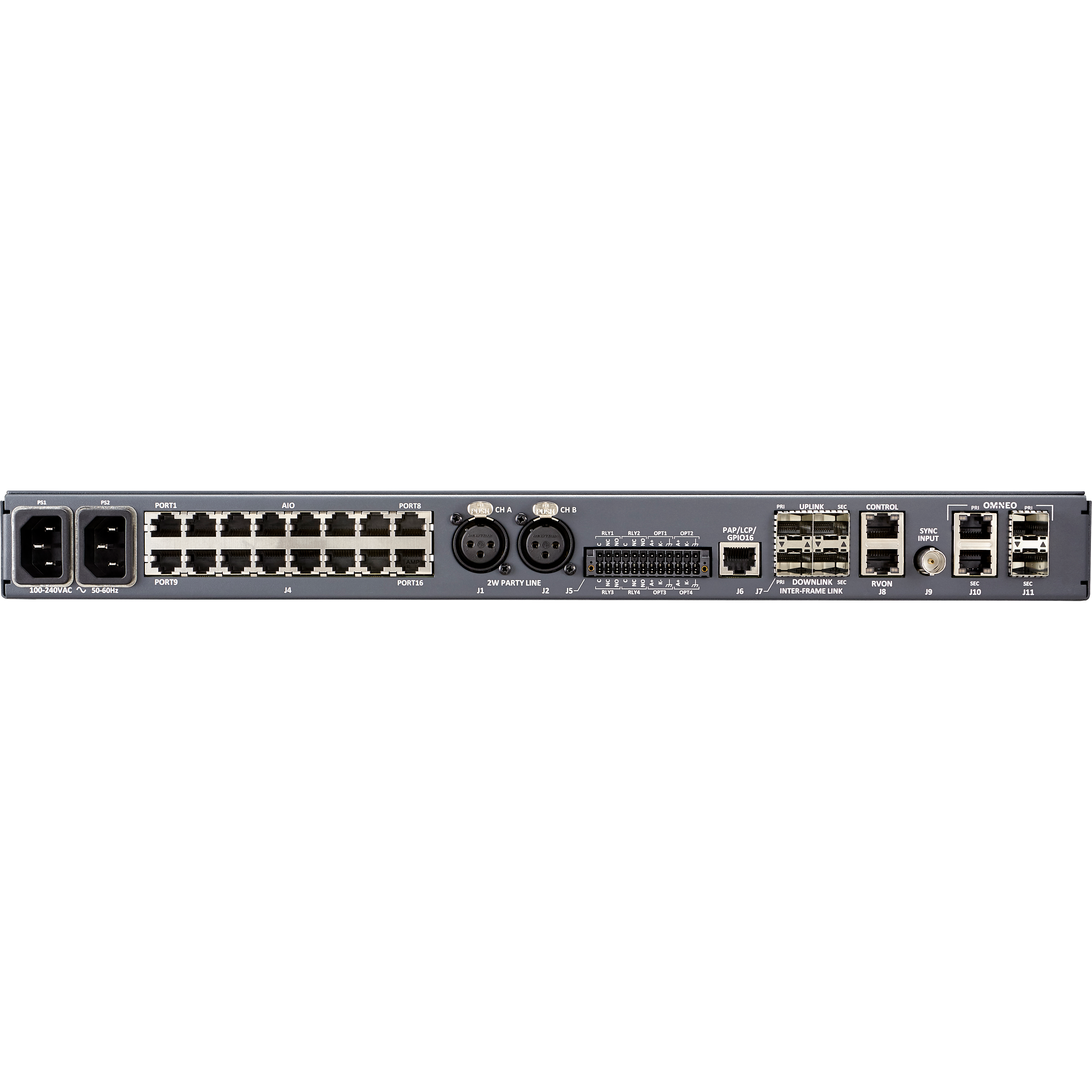

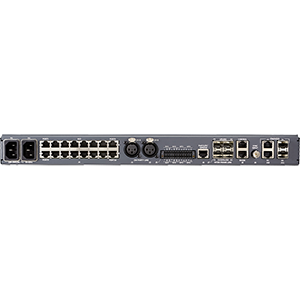

RTS ODIN ba

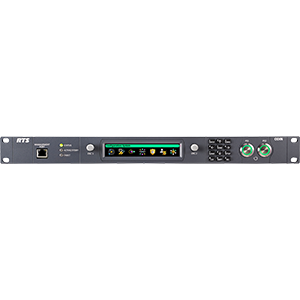

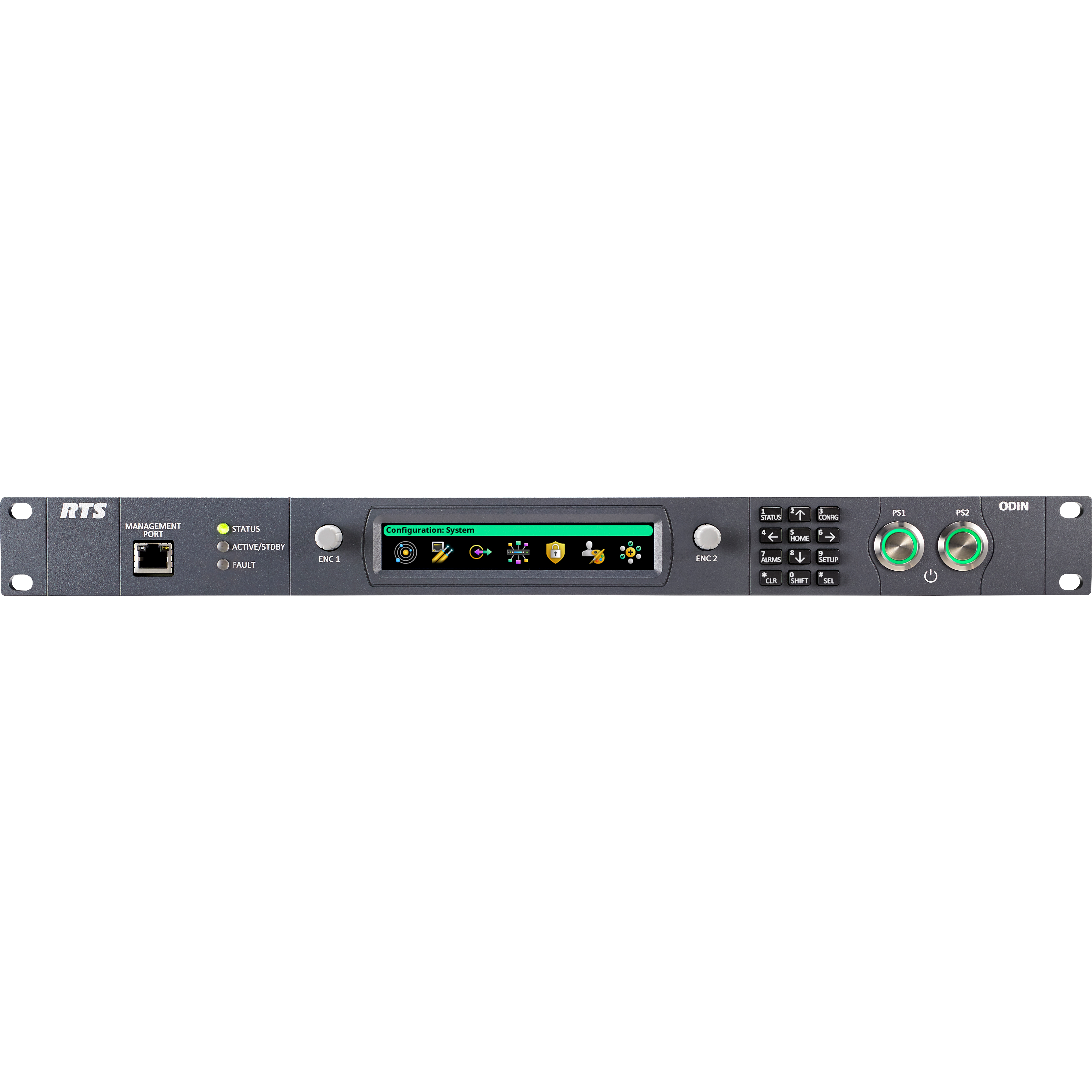

RTS ODIN FR WHITETYPE

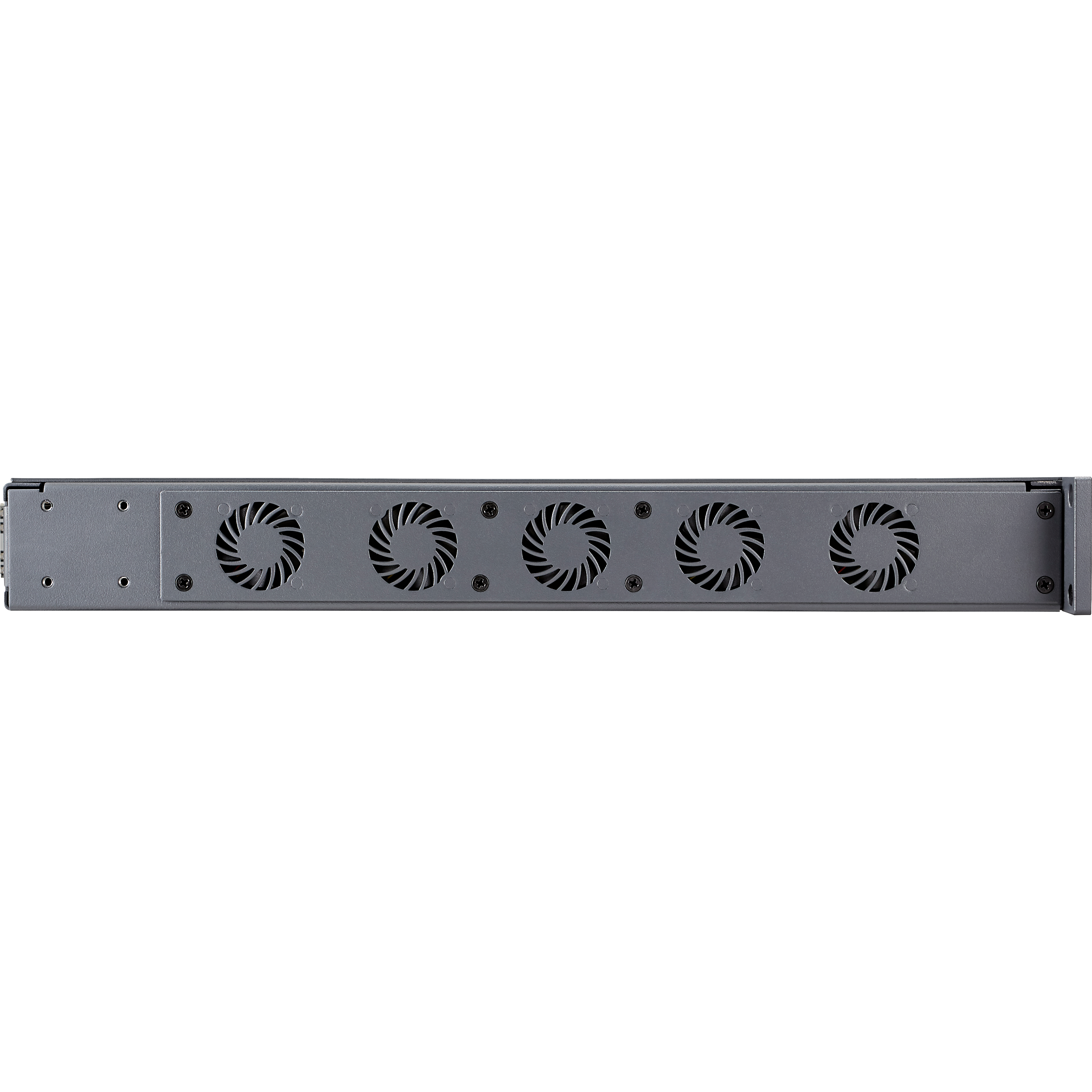

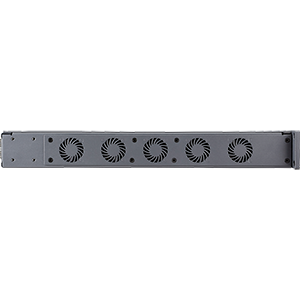

RTS ODIN Side FanDetail
