RVON+

Voip card

  • The RVON+ provides VoIP (Voice over Internet Protocol) communications for the RTS ADAM Intercom product family. The RVON+ is an integrated solution for connecting
    keypanels to the Intercom matrix over standard IP networks by supporting 16 and 32 channels of bi-directional audio, as well as keypanel data.
    The RVON+ is a hot swappable card which supports all configurable options through RTS’ IPedit VoIP configuration software.
    The RVON + supports remote keypanels, audio connections between matrix frames via ODIN, RVON +, RVON-16, RVON-8, or RVON-I/O, as well as virtual keypanels via VoIP.
    A DB-9 serial connection is available for RS-232 or RS-485 pass-thru port connections.

    • 16 channels of bi-directional audio expands the connectivity of the ADAM Intercom and RVON-16 card. Each channel has configurable network and bandwidth parameters to accommodate individual network functions, as well as ancillary data for keypanels and trunking control. A purchasable upgrade option is available to expand from 16 channels to 32 channels.
    • The RVON + card supports two fiber connections
    • Multiple RVON devices can be viewed simultaneously and independently of the frame in which they are located using IPedit software.
    • Provides a virtual serial connection via an IP connection. Which, if used with trunking, may eliminate the need formultiple IP resources.

The RVON+ provides VoIP (Voice over Internet Protocol) communications for the RTS ADAM Intercom product family. The RVON+ is an integrated solution for connecting
keypanels to the Intercom matrix over standard IP networks by supporting 16 and 32 channels of bi-directional audio, as well as keypanel data.
The RVON+ is a hot swappable card which supports all configurable options through RTS’ IPedit VoIP configuration software.
The RVON + supports remote keypanels, audio connections between matrix frames via ODIN, RVON +, RVON-16, RVON-8, or RVON-I/O, as well as virtual keypanels via VoIP.
A DB-9 serial connection is available for RS-232 or RS-485 pass-thru port connections.

Specifications

Width 144.4498
Length 280.0096
Ethernet Port 2 - RJ-45 Ethernet via backcard

Optical Drive 2 - Fiber SFP
Serial Port 1 - DB-9 serial port via backcard

Downloads

Name Size Date
App Note RVON 1.03MB Jul 14, 2017
RTS Application Guide 14.92MB Apr 17, 2019
RTS Proper Cleaning Guidelines 91KB Jun 9, 2020
Name Language Size Date
RTS full-line catalog EN 8.56MB Jan 29, 2020
Name Language Size Date
RVON+ Technical Data Sheet EN 310KB Jun 5, 2019

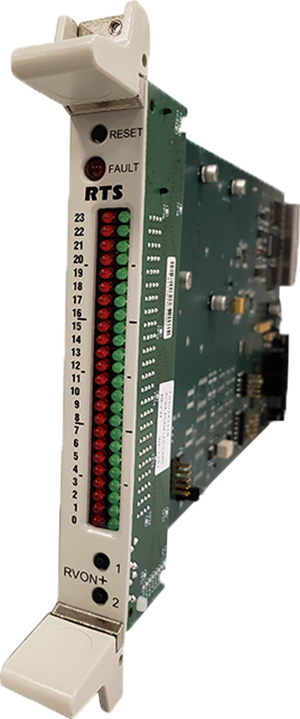

RVONPlus Front Card

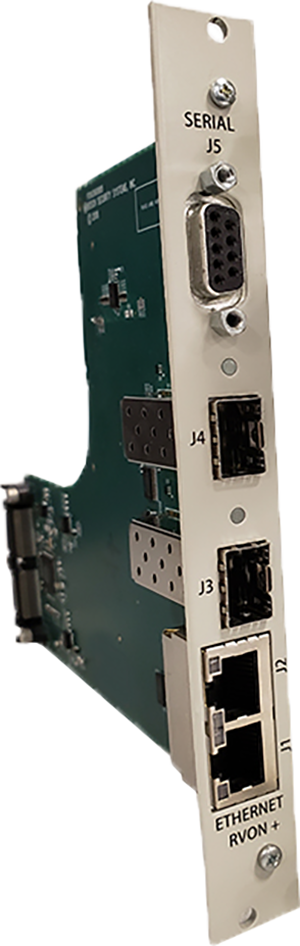

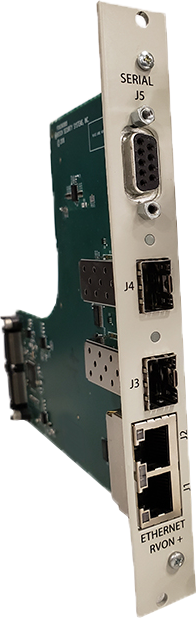

RVON Plus BackCard

Name Language Size Date
RVON+ Technical Manual EN 3.04MB Jul 23, 2019
