DSPK-4

Digital Speaker Station

  • Desktop and Wall Mount devices come with 4- and 5-pin headset connectors.
  • Supports connections to an OMNEO Main Station (Digital Party Line) or an OMNEO capable matrix (ADAM or ADAM M with OMI installed or ODIN).
  • Features a high-resolution TFT display, allowing user setup and configuration using an iconbased GUI.
  • Supports power redundancy from an external DC power supply or the Local +24V terminal block to PoE+ / PoE++
  • Supports Bluetooth audio connectivity via Bluetooth enabled USB dongles.

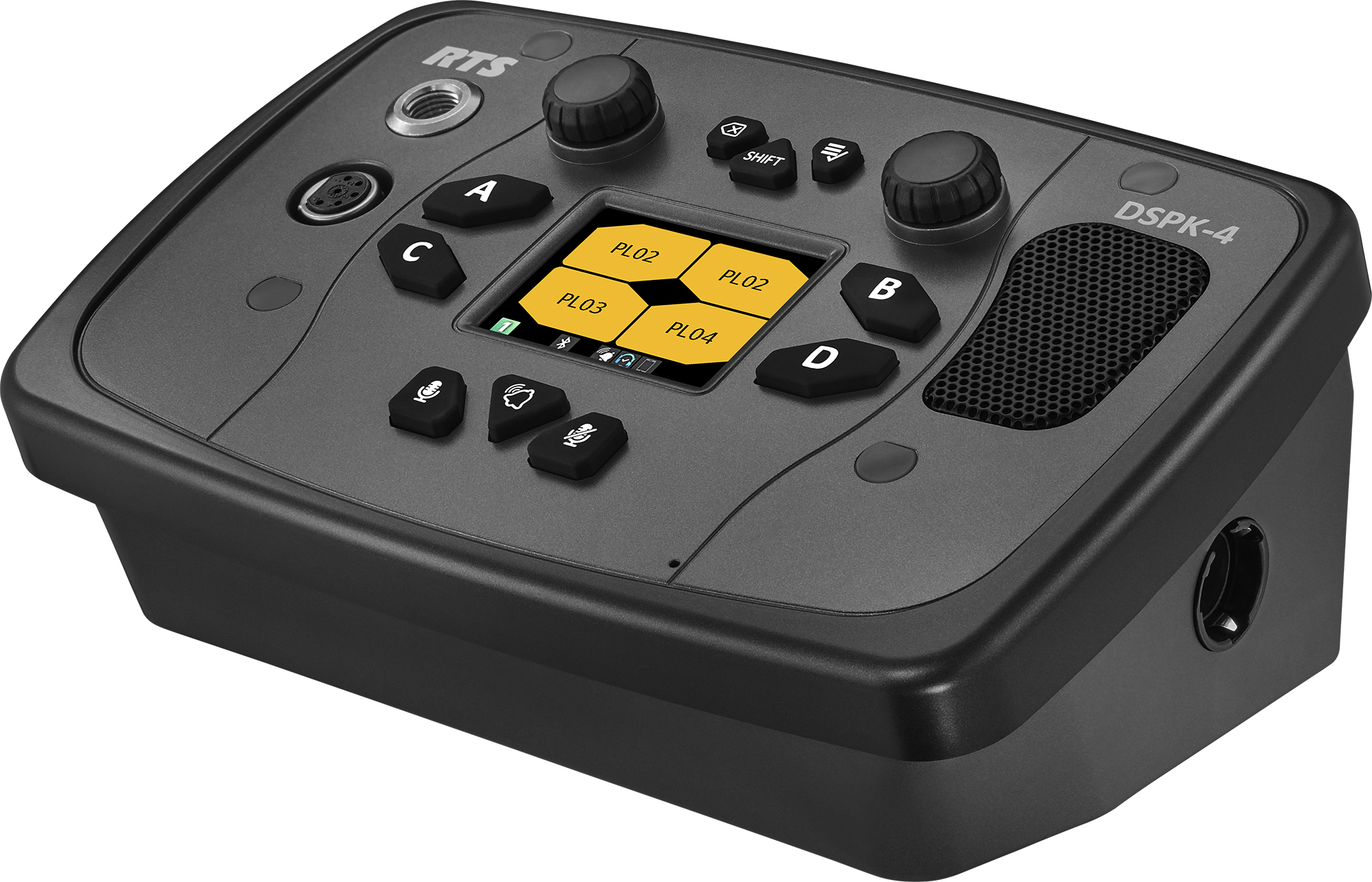

The DSPK-4 (Digital Speaker Station) is an IP-based version of its wired analog speaker station predecessor, with several key enhancements, such as high quality digital audio and the use of standard Ethernet, making it compatible and versatile to fit into any environment.

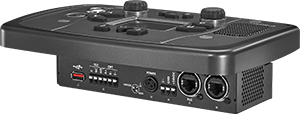

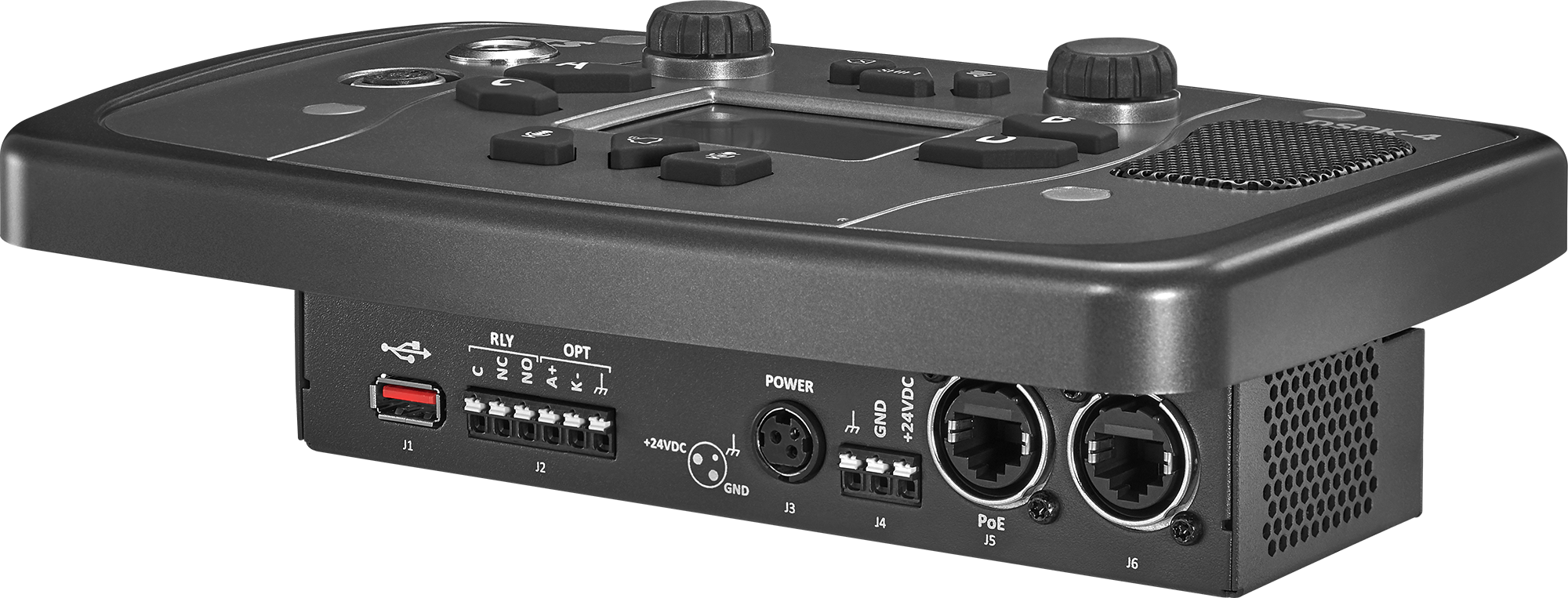

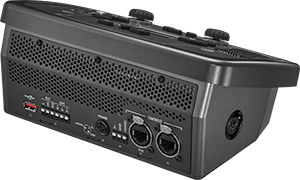

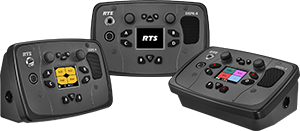

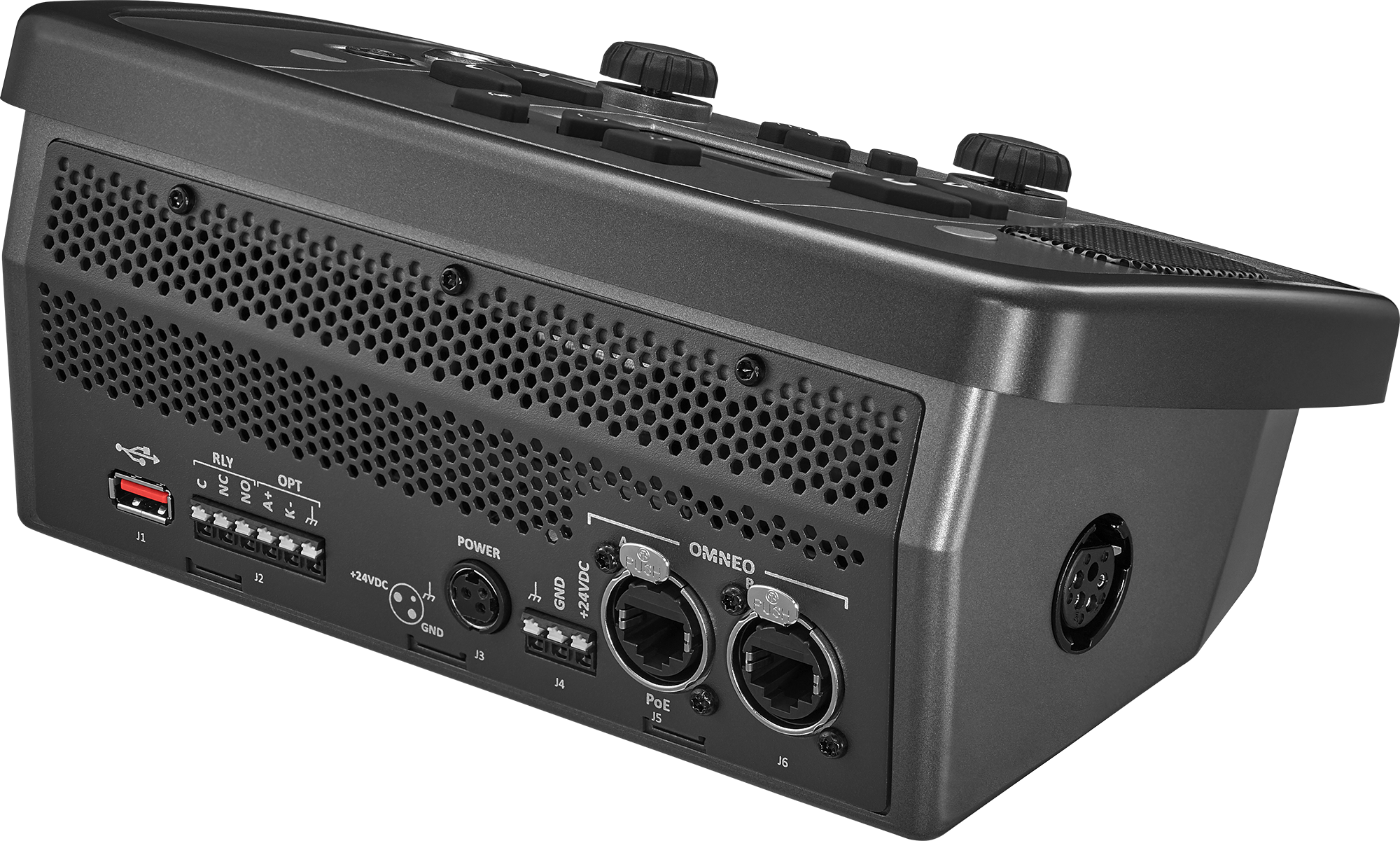

Building on the versatility, DSPK-4 comes in three different variants: a desktop version, a wall mount version, and a flush mount version. There is a model for every situation. The flush mount version comes with 4-pin female, 4-pin male, or 5-pin female front panel XLR connector. The wall mount and desktop versions have all three XLR connectors. Power the DSPK-4 via an external AC/DC power adapter, a DC +24 V terminal block, or by PoE+ / PoE+ + (Power over Ethernet). In addition, you can have peace of mind when powering the DSPK-4 local DC power because PoE+ / PoE++ is ready to take over as a redundant power supply with no interruptions if the unexpected happens.

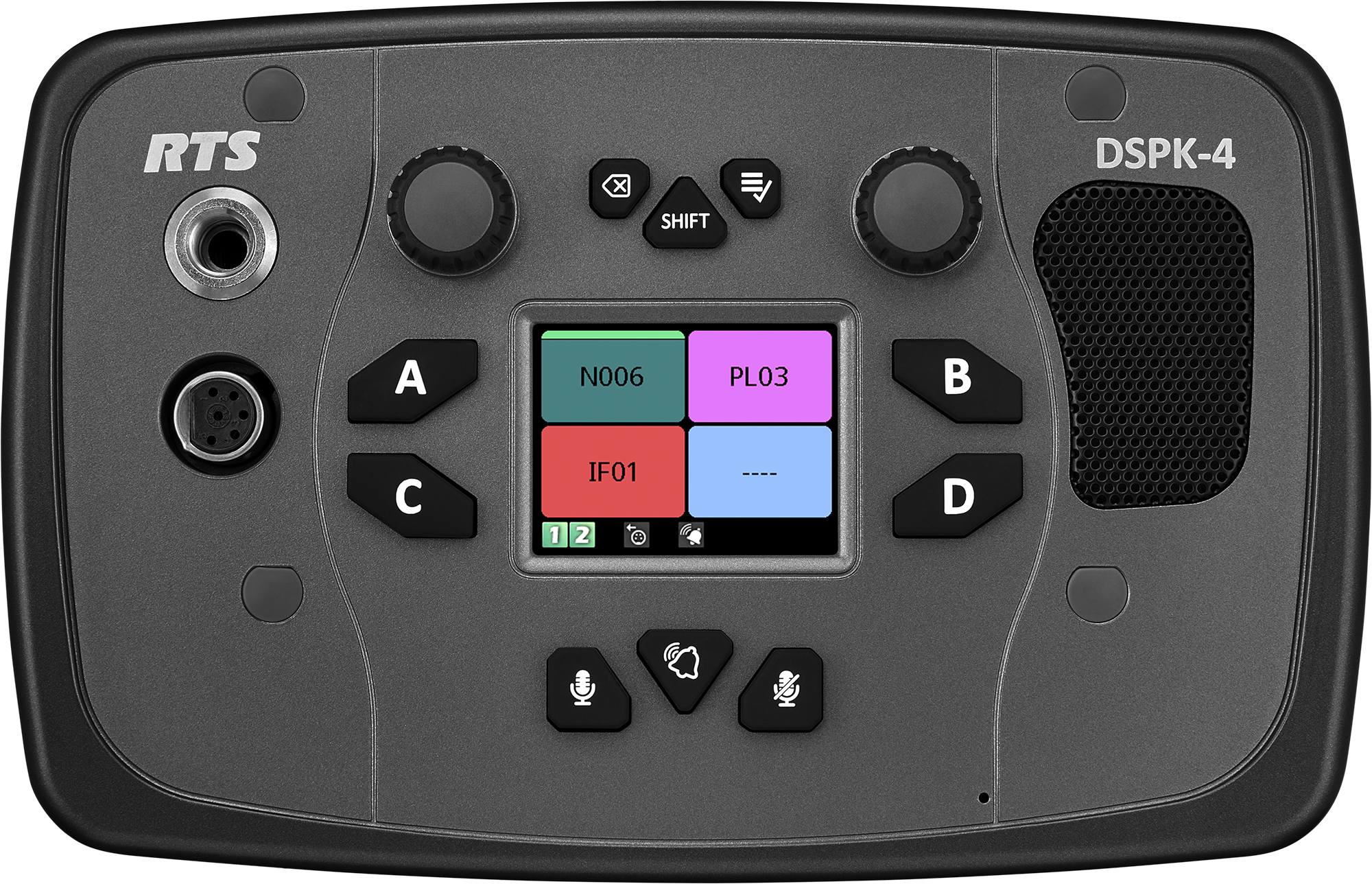

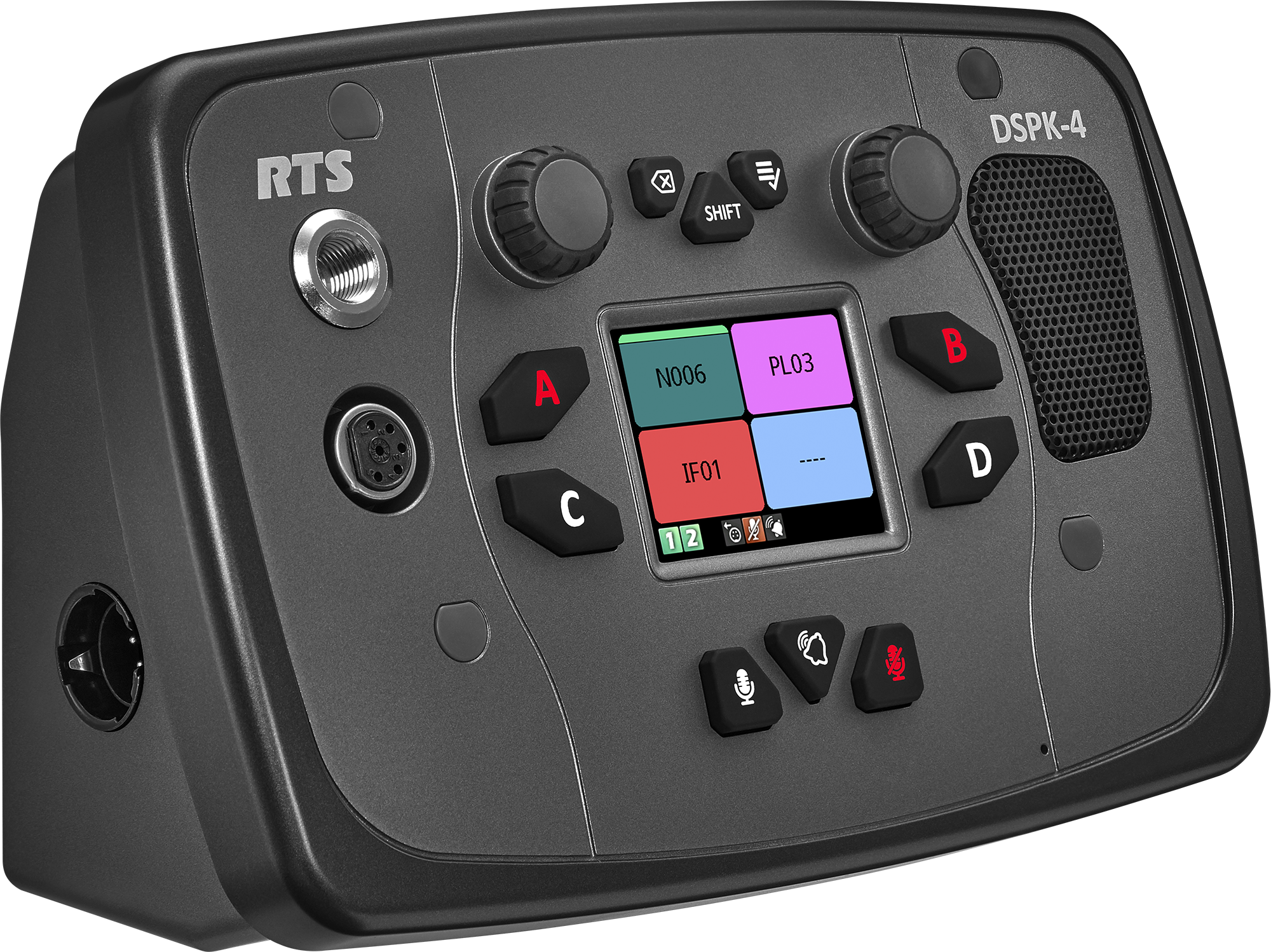

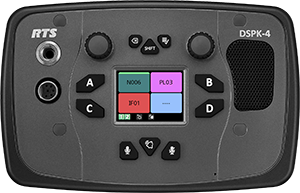

The DSPK-4 has a full-color TFT display and an iconbased menu interface, which allows for local configuration of essential customer preferences.

Specifications

Power
PoE+ / PoE++
Type of Power SupplyPoE
Connector TypeNeutrik etherCON
Number of PoE ports 1
PoE Input POE+ IEEE 802.3at Type 2, Class 4
POE++ IEEE 802.3bt Type3&4, Class 4
PoE voltage (VDC) 42.5 to 57 VDC
Power consumption PoE (W) maximum, typical25 W

External DC Power Supply Input
Type of power supply VDC
Connector type Locking Kycon 3-pin connector
Input voltage (VDC) (maximum - minimum)24 VDC
Current (A) 280 mA
DC Power Terminal Block Input
Type of power supply VDC
Connector type Phoenix Terminal Block (Push-in spring connection)
Input voltage (VDC) (maximum - minimum)24 VDC - 19 VDC
Current (A) 280 mA
External Power Supply
Type of power supply External AC/DC power supply
Connector type IEC C14
Input voltage (VAC) (maximum - minimum)240 - 100 VAC
Operating voltage (VAC) (maximum - minimum)240 VAC to 100 VAC @ 60 Hz to 50 Hz
Power consumption (VA) 25 VA
Power consumption (W) (maximum) 13 W
Mechanical
DSPK4-D (desktop user station)
DSPK4-W (wall mount user station)
Dimensions (H x W x D) (in) 5.79 in x 9.13 in x 3.94 in
Dimensions (H x W x D) (mm) 147 mm x 232 mm x 100 mm
Weight (lb) 2.97 lb
Weight (kg) 1.35 kg
DSPK4-F (flush mount user station)
Dimensions (H x W x D) (in) 5.90 in x 9.13 in x 2.56 in
Dimensions (H x W x D) (mm) 150 mm x 232 mm x 65 mm
Weight (lb) 1.62 lb
Weight (kg) 0.74 kg
Environmental
DSPK4-All models
Operating temperature (°F) -4 °F – 122 °F
Operating temperature (°C) -20 °C – 50 °C
Operating relative humidity, noncondensing (%)5% – 90%
Storage temperature (°F) -4 °F – 158 °F
Storage temperature (°C) -20 °C – 70 °C
Storage relative humidity (%) 15% – 90%
TFT Display
Display type TFT
Backlight White LED with adjustable brightness (active and idle)
Display color Color
Display resolution (pixels)320 x 240 px
Display size (cm) 6.1 cm
Display size (in) 2.4 in
Color depth 16-bit bpp
Active viewing area (W x H)36.72 mm x 48.96 mm
Display view angle 80° all direction
Display protective lens Anti-glare
OMNEO Ports
Connector type Neutrik etherCON
Number of Ethernet ports 2
Ethernet type 100/1000 Mbps
Audio streaming Full duplex
Number of audio channels 2
Panel Mic
Microphone element type Electret
Connector type ¼" TRS jack
Audio input Microphone
Nominal input level (dBu) -42.5 dBu
Maximum input level (dBu) -22.5 dBu
Panel mic input frequency response (Hz)70 Hz to 7.4 kHz
XLR Headset Front (DSPK4-D/DSPK4-W)
Connector type6-pin (5-pin compatible) female XLR
Audio input Microphone
Microphone element type Electret
Nominal input level (dBu) -42.5 dBu
Maximum input level (dBu) -22.5 dBu
Microphone element type Dynamic
Nominal input level (dBu) -50 dBu
Maximum input level (dBu) -30 dBu
Headset mic input frequency response (Hz/kHz)70 Hz to 7.4 kHz
XLR Headset Front (DSPK4-F)
Connector type4-pin female XLR, 4-pin male XLR, or 6-pin (5-pin compatible) female XLR
Audio input Microphone
Microphone element type Electret
Nominal input level (dBu) -42.5 dBu
Maximum input level (dBu) -22.5 dBu
Microphone element type Dynamic
Nominal input level (dBu) -50 dBu
Maximum input level (dBu) -30 dBu
Headset mic input frequency response (Hz/kHz)70 Hz to 7.4 kHz
XLR Headset Left (DSPK4-D/DSPK4-W)
Connector type4-pin female XLR (Desktop) 4-pin male XLR (Wall Mount)
Audio input Microphone
Microphone element Electret
Nominal input level (dBu) -42.5 dBu
Maximum input level (dBu) -22.5 dBu
Audio input Dynamic
Nominal input level (dBu) -50 dBu
Maximum input level (dBu) -30 dBu
Headset mic input frequency response (Hz/kHz)70 Hz to 7.4 kHz
XLR Headset Right (DSPK4-D/DSPK4-W)
Connector type4-pin male XLR (Desktop)
4-pin female XLR (Wall Mount)
Audio input Microphone
Microphone element Electret
Nominal input level (dBu) -42.5 dBu
Maximum input level (dBu) -22.5 dBu
Audio input Dynamic
Nominal input level (dBu) -50 dBu
Maximum input level (dBu) -30 dBu
Headset mic input frequency response (Hz/kHz)70 Hz to 7.4 kHz
Headphone Amplifiers (XLR 1/2/3)
Maximum output power (mW) 80 mW for 150Ω
Frequency response (Hz) 200-20000 Hz
Loud Speaker Amplifier
Peak SPL at a distance of 1 m (dBSPL)90 dBSPL
Frequency response (Hz) 200-12000 Hz
General Purpose Input/Output Ports
Connector type Phoenix Terminal Block (Push-in spring connection)
Control ports 1 GPI
1 GPO
Number of relay outputs 1
Maximum contact current (A) 1 A
Maximum contact voltage (VDC) 30 VDC
Number of optically-coupled inputs 1
Bluetooth
Mic input frequency response 70 Hz to 3.4 kHz
Headphone response 30 Hz to 19 kHz
30 Hz to 3.4 kHz
Version 4.0
Approved dongles IO Gear GBU522
LM Technologies LM506
Range (ft) 15 ft
Range (m) 5 m
Audio codec SBC
