Omneo matrix interface card

    • The OMI card is available in configurations up to 64 bidirectional ports in increments of 16 ports on a single card.
    • The OMI card can be expanded from the base configuration of 16 ports through software upgrades.
    • In addition to the standard RJ45 Ethernet connection, fiber connectivity is also supported with the addition of optimal single mode or multimode modules.
    • A fully configured single compact ADAM-M frame can support up to 256 OMNEO ports, providing a highly compact single frame solution for many system installs.
    • The ADAM frame supports an astounding 512 OMNEO ports, making it ideal for larger systems without the need for frame-to-frame linking.

This card fits into the standard slots of the RTS ADAM or ADAM-M frames and provides a gateway to the world of OMNEO IP-compatible networking. The card consists of the traditional ADAM front and back card components and enhances ADAM systems with the following features listed below.

Specifications

Connections Fiber Optic SFP Module with LC Connector, RS232/485 using a DB-9 connector, 2- RJ45 Connectors
Operating Temperature 0° to 50°C
Storage Temperature -40° to 70°C

Frequency Response within ±1dB from 20Hz - 20kHz
Total Harmonic Distortion+Noise < @8dB, better than 0.01
Power Consumption 14.9W @5V(Front and Back combined)
Channels 64

Downloads

Name Size Date
App Note ROAMEO wiring 1.7MB Feb 2, 2017
App Note Two-wire matrix 654KB Nov 13, 2017
App Note VLINK SIP 645KB Nov 20, 2017
Application Notes: AES67 243KB Apr 19, 2017
Migration of OCP-based firmware to OCA-based Firmware for OMI, OKI, OEI-2, & KP-Series Devices 1.3MB Dec 5, 2017
RTS Application Guide 14.92MB Apr 17, 2019
RTS Proper Cleaning Guidelines 91KB Jun 9, 2020
Name Language Size Date
RTS full-line catalog EN 8.56MB Jan 29, 2020
RTS + OMNEO Folleto ES 652KB Nov 6, 2014
Name Size Date
Microsoft Digs Deep Into Dante 3.33MB Nov 6, 2014
Name Language Size Date
OMI Technical Data Sheet EN 328KB Nov 6, 2014

OMI ADAM Matrix Card Front

OMI ADAM Matrix Card Back

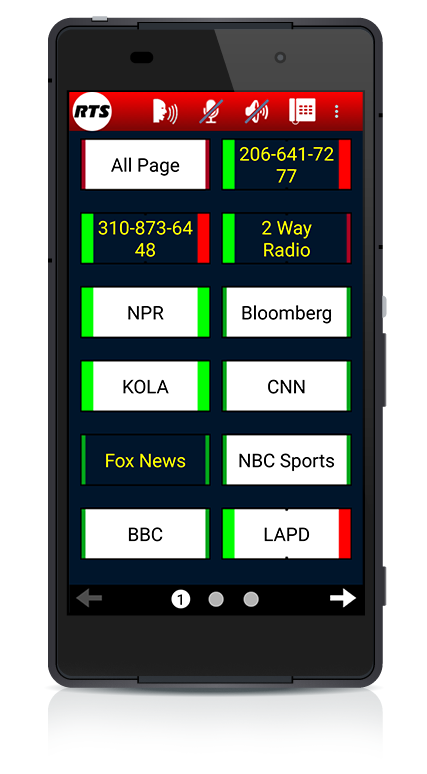

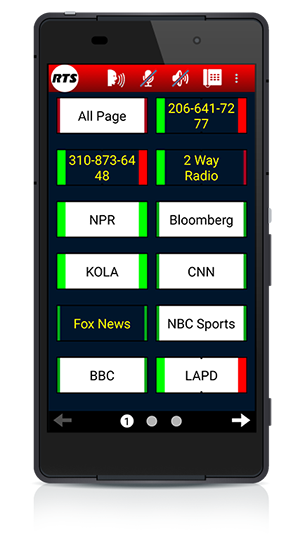

wireless-matrix-intercom-iphone-android-RTS-solo
